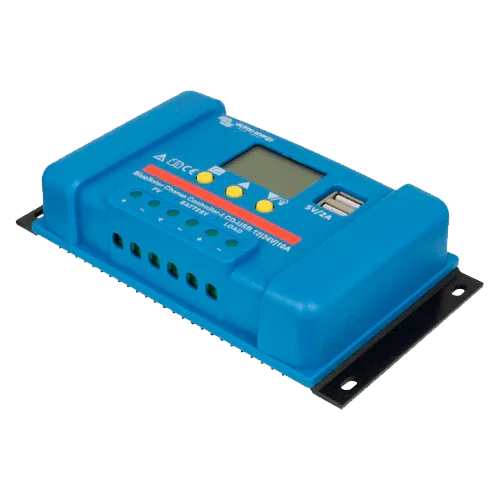

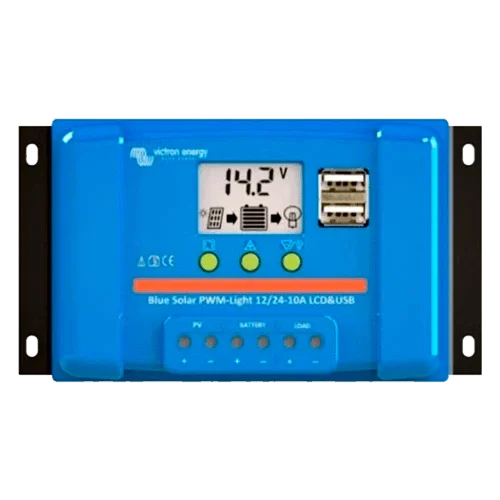

PWM Charge Controller Victron BlueSolar LCD&USB 12/24-10 10A
Modelo: BlueSolar LCD&USB 12/24-10- Sku: VICTREG052
- Vendor: Victron
Specifications
Product Description
The Victron BlueSolar LCD&USB 12/24-10 10A is a versatile PWM controller that combines three-stage charge management, load output protected by LVD, and an intuitive LCD interface. It increases the rated current up to 10 A while maintaining very low self-consumption, making it perfect for small installations with more photovoltaic surface area or higher consumption than the 5 A model. Its two USB ports, 5 V/2 A total, allow powering auxiliary equipment, and the integrated day/night timer automates lighting without the need for external controllers.
Main Features
- 10 A charging current with automatic 12/24 V detection.
- LCD screen for parameter adjustment, status reading, and timer configuration.
- Optimized multi-stage charging for lead-acid: absorption 14.4 V/28.8 V and float 13.7 V/27.4 V.
- Dual USB 5 V (2 A total), ideal for router, sensors, or mobile devices.
- Configurable LVD to protect the battery against deep discharges.
- Electronic protections against reverse polarity, overload, short circuit, and overtemperature.
Advantages or Benefits
- Protects the battery and reduces maintenance thanks to precise charge management.
- Simple installation and operation with common positive and accessible terminals.
- Automates lighting and signage with the integrated day/night timer.
- Saves space and costs by integrating display and USB into the controller itself.
- Ultra-low self-consumption maximizes the energy available for loads.
Purpose or Applications
Recommended for autonomous lighting, signaling systems, site cabins, camper and light marine use, remote telemetry stations, and small 12/24 V installations that require more current margin without complexity.
Technical Specifications
| Battery voltage | 12/24 V (automatic detection) |
| Charging current | 10 A |
| USB | 2×5 V; 2 A total |
| PV max. (Voc) | 28 V (12 V) / 55 V (24 V) |
| Charging algorithm | Absorption 14.4 V / 28.8 V · Float 13.7 V / 27.4 V |
| LVD / Reconnection | 11.2 V / 22.4 V · 12.6 V / 25.2 V (manual) |
| Self-consumption | < 10 mA |
| Load output | LVD + day/night control with timer |
| Grounding | Common positive |
| IP rating | IP20 |
| Terminals | Up to 6 mm² (AWG10) |
| Dimensions / Weight | 96×169×36 mm · 0.15 kg |
| Standards | EN60335-1, IEC 62109-1, EMC |
Compatibilities
Compatible with 36-cell panels (12 V) and 72-cell or 2×36-cell panels (24 V). Batteries: lead-acid AGM/GEL/flooded; use with LiFePO₄ only with BMS and proper control. Accessories: DC fuses, disconnectors, surge protectors, fuse holders, and solar cabling according to current.
Victron BlueSolar LCD&USB 12/24-10 10A combines charge control, timer, and LCD interface in a compact device that improves the reliability and efficiency of small 12/24 V solar installations.
