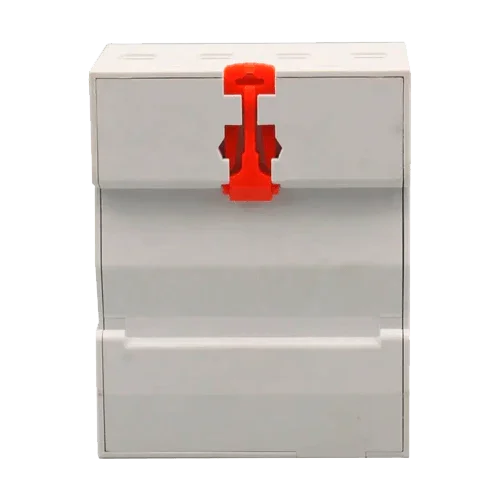

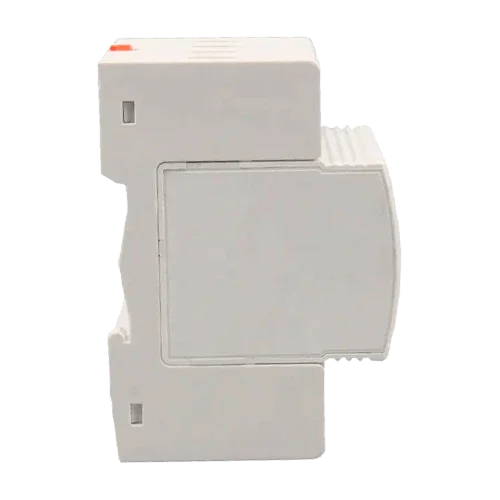

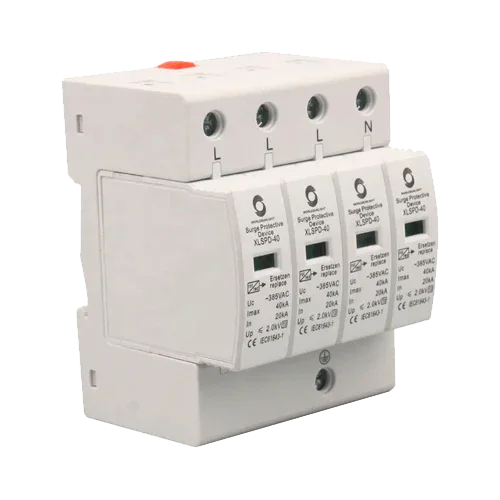

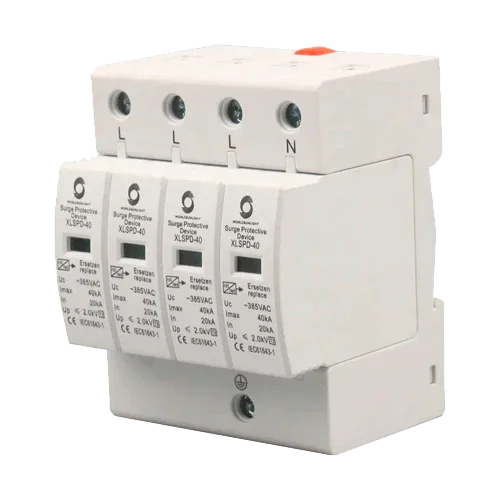

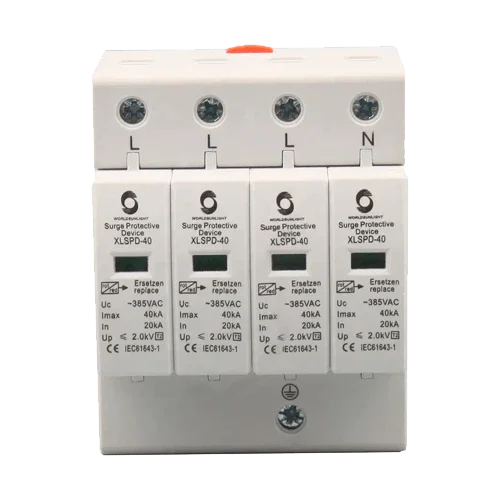

XLSPD-40 4P 385V AC Type 2 Surge Protector

Modelo: XLSPD-40 4P 385V AC Tipo 2

Sku: WORLPRO014
Vendor: WorldSunLight

€9,02 EUR

€2,71 EUR

Tax included.

Shipping calculated at checkout.

In stock!

Spend €150,00 to FREE SHIPPING

The Protector Sobretensiones XLSPD-40 4P 385V AC Type 2 protects three-phase networks with up to 40 kA. Plug-in modules, DIN mounting, and suitable for main panels and AC self-consumption (class II).

Product variants

Quantity

I agree with the Terms and Conditions.

Purchase with Secure Payment

Specifications

Product Description

The XLSPD-40 4P 385V AC Type 2 Surge Protector is a class II surge arrester designed to protect three-phase installations (L1-L2-L3-N) against transient surges caused by switching operations and indirect lightning strikes. Designed for installation on a DIN rail inside the main distribution board, it offers high discharge capacity and plug-in cartridges that facilitate maintenance without shutting down the installation. It is the recommended solution for protection on the AC side of self-consumption photovoltaic systems, homes, businesses, and SMEs, improving service continuity and extending the lifespan of equipment and inverters.

Main Features

4 poles for 3F+N networks at 400/230 V~ (Uc 385 V AC).
Total discharge capacity up to 40 kA (class II / Type 2).
Plug-in modules with end-of-life window for quick replacement.
Mounting on DIN rail with screw connection and low contact resistance.
Fast response time and suitable protection level for sensitive receivers.
Complies with IEC/EN 61643-11 and applicable low voltage regulations.

Advantages or Benefits

Protects inverters, electronics, and critical loads against transient overvoltages.
Minimizes failures and downtime, reducing maintenance costs.
Easy cartridge replacement thanks to the removable design.
Clean integration in the panel with modular DIN format.
Greater safety and reliability in residential and commercial installations.

Purpose or Applications

Main distribution boards for residential and tertiary use, AC protection in photovoltaic self-consumption, three-phase subpanels, technical rooms, and lines with sensitive electronics (HVAC, IT, automation).

Technical Specifications

Model	XLSPD-40
Poles	4P (L1-L2-L3-N)
Type / Class	Type 2 / Class II
Uc (maximum continuous voltage)	385 V AC
Discharge capacity	up to 40 kA
Mounting	DIN rail 35 mm
Cartridges	Plug-in, with status indicator
Standard	IEC/EN 61643-11
Environment	Residential, commercial, light industrial, solar (AC)

Compatibilities

Installable in HT-12WAYS, HT-18WAYS, and HT-24WAYS waterproof panels. Coordinate with XID-63 4P Type A residual current circuit breakers and XL8-63 4P circuit breakers of the appropriate rating. Requires upstream protection (fuse or circuit breaker) according to regulations and available short-circuit level.

The XLSPD-40 4P 385V AC Type 2 Surge Protector provides robust and easy-to-maintain protection to safeguard your equipment and ensure a safer and more reliable installation.
