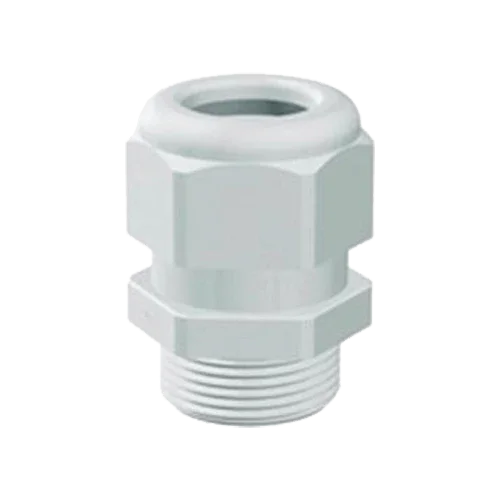

Polyamide Cable Gland Pemsa PG21 11mm Ø13–18mm IP68

Product description

The Pemsa Polyamide Cable Gland PG21 11mm Ø13–18mm IP68 is a cable entry system designed to protect electrical connections against dust, water, and mechanical impacts. Manufactured from high-quality polyamide and compliant with DIN 40430 standard, it offers a safe and robust solution for installations in demanding conditions, both indoors and outdoors. Its PG21 thread and locking system ensure a hermetic seal on cables with an external diameter of 13 to 18 mm.

Main features

• PG21 thread with 11 mm internal pitch
• Compatible with cables of 13–18 mm external diameter
• IP68 protection rating for outdoor use and immersion
• Made of UL grey polyamide, self-extinguishing and resistant
• Pressure fixation with internal diaphragm system
• High mechanical, thermal, and chemical resistance

Advantages or benefits

• Total protection against water, dust, and humidity
• Quick and safe installation in electrical panels
• Prevents the entry of dirt and extends the service life of wiring
• Ideal for industrial, outdoor, or high-demand environments
• Compatible with PG21 nuts for complete sealing

Purpose or applications

The Pemsa PG21 Cable Gland is especially designed to protect and seal cable entries in boxes, enclosures, electrical cabinets, or industrial panels. Its IP68 rating makes it a safe option for outdoor installations, agricultural, marine, or high-humidity environments.

Technical specifications

Compatibilities

This product is compatible with: Pemsa PG21 Grey Polyamide Nut.

Pemsa PG21 11mm Ø13–18mm IP68 Polyamide Cable Gland is the ideal choice for safe, watertight, and durable electrical installations. It ensures complete protection under demanding conditions, with quick and reliable assembly.
