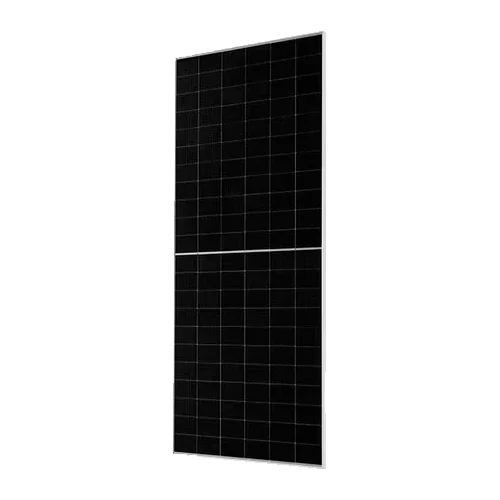

JA Solar Bifacial Solar Panel 615W JAM66D45 LB Mono PERC 132 cells

Product Description

The JA Solar Bifacial Solar Panel 615W JAM66D45 LB is a high-performance n-type module with 132 half-cut cells and double glass construction (2.0/2.0 mm). Its high unit power, excellent response at low irradiance, and lower LID translate into more kWh per square meter and a competitive LCOE throughout its service life.

Main Features

• Front power: 615 W; efficiency 22.8%.
• Electrical parameters (STC): Voc 48.30 V, Vmp 39.96 V, Isc 16.10 A, Imp 15.39 A.
• Bifaciality 80% ±10%: with 10% rear irradiance, power can reach ≈ 664 W.
• Robust design: 30 mm frame, double glass, IP68 box with 3 diodes; connectors QC 4.10-35I / MC4-EVO2A.
• Format and weight: 2382 × 1134 × 30 mm; 31.3 kg; loads 5400 Pa (front) and 2400 Pa (rear).
• Max. system voltage 1500 Vdc; series fuse 35 A; NOCT 45 ±2 °C.

Advantages or Benefits

• Higher annual production and lower LCOE due to its high power and bifacial contribution.
• Longevity and stability: 25-year product warranty and 30-year linear power warranty (1% first year, 0.4% annually thereafter).
• Excellent performance at low irradiance and in warm climates due to its improved thermal coefficient.
• Easy integration with standard structures and cabling (MC4-EVO2A, 4 mm²).
• Reliability in demanding environments thanks to double glass and IP68.

Purpose or Applications

Suitable for grid-connected plants, commercial and industrial self-consumption, warehouse roofs, pergolas, and solar carports. Also suitable for off-grid or solar pumping systems when the inverter/controller is sized to the Voc/Vmp/Isc of the generator.

Technical Specifications

Compatibilities

Compatible with grid-tied and hybrid inverters that support at least the module Isc and strings within 1500 Vdc; with MPPT controllers for off-grid sized to Voc/Vmp; with solar pumping systems; and with standard 30 mm structures. Use appropriate DC protections and MC4-EVO2A connectivity.

The JA Solar Bifacial Solar Panel 615W JAM66D45 LB provides power, durability, and warranties to maximize the profitability of your photovoltaic installation.
