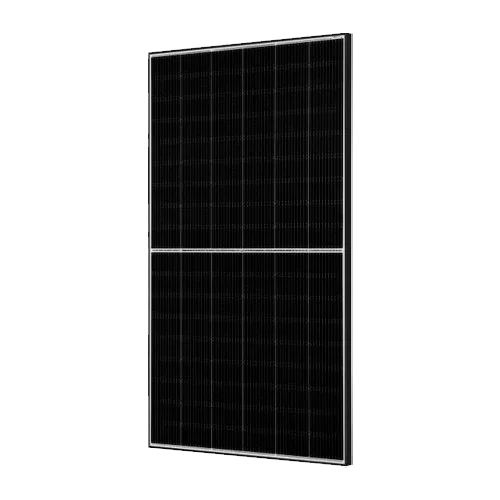

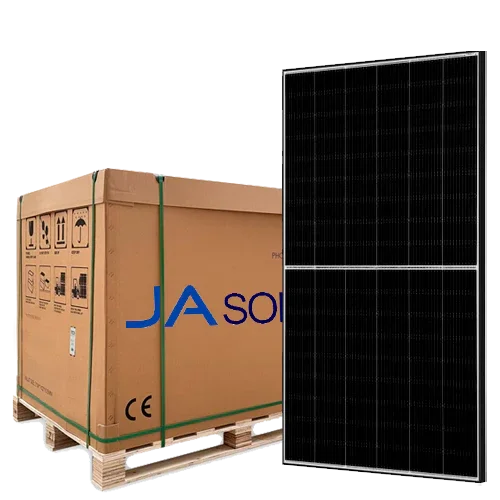

Pallet of 36 Bifacial Panels JA Solar 455W JAM54D40 LB Mono PERC 108 cells

Modelo: 455W JAM54D40 LB

Sku: JASOPAL002
Vendor: JA Solar

€3.478,56 EUR

€2.782,85 EUR

Tax included.

Shipping calculated at checkout.

In stock!

Spend €150,00 to FREE SHIPPING

Pallet of 36 JA Solar 455W JAM54D40 LB Bifacial Panels with double glass, IP68, and n-type. Total front power 16.38 kW, high efficiency (22.8%) and greater output due to its bifaciality 80% ± 10%.

Product variants

Quantity

I agree with the Terms and Conditions.

Purchase with Secure Payment

Specifications

Product Description

The Pallet of 36 Bifacial Panels JA Solar 455W JAM54D40 LB is the professional option for medium-scale projects requiring performance, durability, and efficient logistics. Each module incorporates n-type technology with double glass and 108 Mono PERC cells, offering certified reliability and industry-leading warranties (25 years on product, 30 years on linear power).

Main Features

Power per module: 455 W; total pallet power: 16.38 kW (front). Bifaciality of 80% ± 10% for additional gains from reflection.
Electrical data per module (STC): Voc 39.50 V, Vmp 33.00 V, Isc 14.56 A, Imp 13.79 A; efficiency 22.8%.
With 10% rear irradiance: Pmax 491 W, Isc 15.73 A, Imp 14.89 A, maximizing annual production.
Premium construction: double glass 1.6/1.6 mm, long frame, IP68 box with 3 diodes and QC 4.10-35I / MC4-EVO2A connectors.
Universal format: 1762×1134×30 mm, 22 kg; 4 mm² cable (IEC) / 12 AWG (UL); cables 300 mm(+) and 400 mm(−) vertically, 1200/1200 mm horizontally.
Mechanical resistance: 5400 Pa (front) and 2400 Pa (rear); max. system voltage 1500 VDC; fuse 30 A; NOCT 45 ± 2 °C.

Advantages or Benefits

Better LCOE on rooftops and ground thanks to its 22.8% efficiency and bifacial contribution.
Longevity and production stability: 1% degradation in the first year and 0.4% annually up to 30 years.
Reduced installation times: pallet of 36 units (936 modules per HQ container), ideal for planned procurement.
Robustness in extreme environments due to its double glass, IP68, and operating range from −40 °C to +85 °C.
Standardized MC4-EVO2A connectivity for quick integration with usual wiring and protections.

Purpose or Applications

Designed for commercial and industrial installations, energy communities, photovoltaic carports, agrivoltaic farms, and high-performance residential projects. Suitable for grid connection, hybrid systems with battery, and also for solar pumping applications when the inverter/controller is properly sized.

Technical Specifications

Model	JAM54D40-455/LB (bifacial, n-type)
Power per module	455 W (front) / up to 491 W with 10% rear
Efficiency	22.8%
Cells	Mono PERC 16BB – 108 (6×18)
Voc / Vmp	39.50 V / 33.00 V
Isc / Imp	14.56 A / 13.79 A
Dimensions / Weight	1762×1134×30 mm; 22 kg
Glass / Box	Double glass 1.6/1.6 mm / IP68, 3 diodes
Connection	QC 4.10-35I / MC4-EVO2A; 4 mm² cable
Max. system voltage	1500 VDC; fuse 30 A
Mechanical loads	5400 Pa front / 2400 Pa rear
NOCT	45 ± 2 °C
Warranties	25 years product / 30 years linear power
Units per pallet	36 modules

Compatibilities

Compatible with grid-tied and hybrid inverters that support at least the Isc of each module and with string voltages within 1500 VDC; with MPPT controllers for off-grid sized to the Voc/Vmp of the array; with photovoltaic pumping systems; and with standard structures for 30 mm modules. Requires DC protections suitable for the Isc and field voltage and MC4-EVO2A connectivity.

The Pallet of 36 Bifacial Panels JA Solar 455W JAM54D40 LB is the smart purchase for projects seeking high performance, long service life, and efficient logistics.
