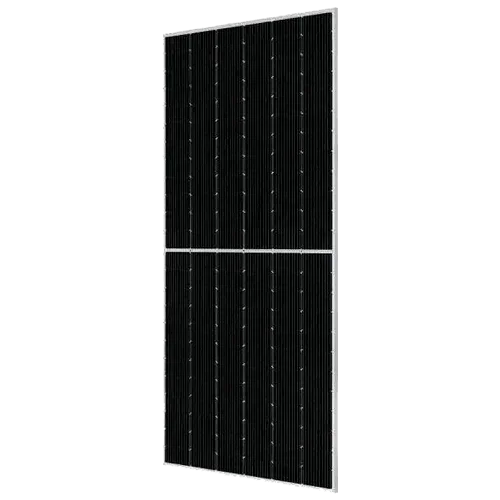

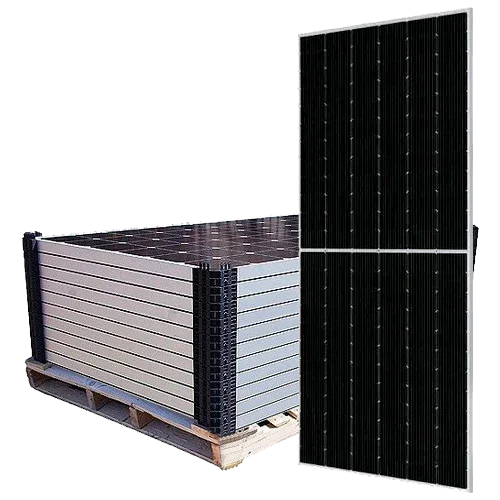

Pack of 10 Bifacial Panels JA Solar 595W JAM72D40 MB Mono PERC 144 cells
Modelo: 595W JAM72D40 MB- Sku: JASOPAC003
- Vendor: JA Solar
Specifications
Product Description
The Pack of 10 JA Solar 595W Bifacial Panels JAM72D40 MB brings together ten high-efficiency n-type modules with 144 half-cut Mono PERC cells and 2.0/2.0 mm dual glass construction. Designed to deliver more per square meter, they offer a combined front power output of 5.95 kW with the robustness of an IP68 junction box and industry-leading warranties. Thanks to their bifacial nature (bifaciality 80% ±10%), they capture reflected radiation on the rear side to increase annual generation and reduce the project's LCOE.
Main Features
- Power per module: 595 W; total pack power: 5.95 kW (front). With 10% rear irradiance, each module can reach ~655 W.
- Electrical parameters per module (STC): Voc 52.58 V, Vmp 44.64 V, Isc 13.99 A, Imp 13.33 A; efficiency 23.0%.
- N-type technology with lower LID, better thermal coefficient, and excellent response to low irradiance.
- Premium construction: dual glass 2.0/2.0 mm, 16BB, 30 mm frame, IP68 box with 3 diodes.
- Large format for plants and industrial rooftops: 2278 × 1134 × 30 mm; weight 31.8 kg.
- Certified mechanical resistance: 5400 Pa front and 2400 Pa rear; NOCT 45 ±2 °C.
Advantages or Benefits
- More kWh/kWp thanks to bifacial contribution and 23.0% efficiency.
- Reduced energy cost (LCOE) due to high power, low degradation (1% first year and 0.4% annually up to 30 years), and long service life.
- Reliability in demanding environments: dual glass, IP68, and wide thermal range (-40 °C to +85 °C).
- Easy integration with standard MC4-EVO2A connectors and 4 mm² cable.
- Pack of 10 units ideal for 6–8 kW fields, modular expansions, or grouping in long strings (1500 Vdc).
Purpose or Applications
Suitable for large-format commercial and residential self-consumption, warehouse rooftops, pergolas, and solar carports, as well as for grid-connected plants. Also valid for off-grid and photovoltaic pumping as long as the inverter/regulator is properly sized for the generator's voltages and currents.
Technical Specifications
| Model | JAM72D40-595/MB (bifacial, n-type) |
| Power per module | 595 W (≈655 W with 10% rear irradiance) |
| Efficiency | 23.0% |
| Cells | 144 (6×24) half-cut Mono PERC, 16BB |
| Dimensions / Weight | 2278 × 1134 × 30 mm / 31.8 kg |
| Glass | Dual glass 2.0 mm / 2.0 mm |
| Voc / Vmp | 52.58 V / 44.64 V |
| Isc / Imp | 13.99 A / 13.33 A |
| Max. system voltage | 1500 Vdc |
| Series fuse | 30 A |
| Box / Connectors | IP68, 3 diodes / QC 4.10-35I · MC4-EVO2A |
| Cable length | Vertical: 300 mm(+) / 400 mm(−) · Horizontal: 1300/1300 mm |
| Mechanical loads | 5400 Pa (front) / 2400 Pa (rear) |
| NOCT | 45 ±2 °C |
| Warranties | 25 years product / 30 years linear power |
Compatibilities
Compatible with grid-tied and hybrid inverters that support at least the module's Isc and string design within 1500 Vdc; with MPPT regulators for off-grid sized to Voc/Vmp; with PV pumping systems; and with standard structures for 30 mm frames. Requires DC protections suitable for the field's voltage and current and MC4-EVO2A connectivity.
The Pack of 10 JA Solar 595W Bifacial Panels JAM72D40 MB maximizes energy and reliability for professional projects with high returns.
