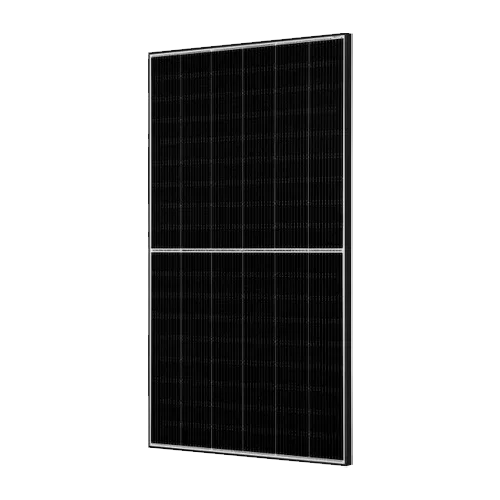

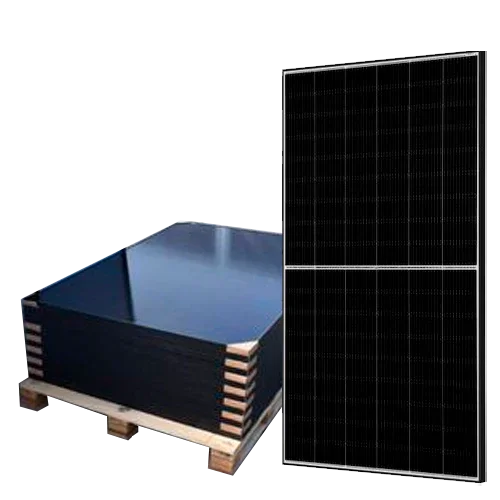

Pack of 10 Bifacial Panels JA Solar 455W JAM54D40 LB Mono PERC 108 cells

Modelo: 455W JAM54D40 LB

Sku: JASOPAC001
Vendor: JA Solar

€1.055,16 EUR

€844,12 EUR

Tax included.

Shipping calculated at checkout.

In stock!

Spend €150,00 to FREE SHIPPING

Pack of 10 JA Solar 455W Bifacial Panels JAM54D40 LB with 108 Mono PERC cells, double glass, and IP68 box. N-type performance, Voc 39.50 V and Isc 14.56 A. Total pack power: 4.55 kW front side.

Product variants

Quantity

I agree with the Terms and Conditions.

Purchase with Secure Payment

Specifications

Product Description

The Pack of 10 JA Solar 455W Bifacial Panels JAM54D40 LB includes ten high-efficiency n-type modules with double glass and Mono PERC technology with 108 cells. It is an optimized solution for residential or commercial projects seeking higher output on the same surface area, with a 25-year product warranty and 30-year linear power warranty.

Main Features

Front power per module: 455 W; pack power: 4.55 kW. With bifaciality of 80% ± 10% that can provide additional gains.
Electrical parameters of the 455 W module (STC): Voc 39.50 V, Vmp 33.00 V, Isc 14.56 A, Imp 13.79 A; efficiency of 22.8%.
With 10% rear irradiance: Pmax 491 W, Isc 15.73 A and Imp 14.89 A for higher annual energy yield.
Robust construction: double glass 1.6 mm/1.6 mm, long frame, IP68 junction box with 3 diodes and QC 4.10-35I / MC4-EVO2A connectors.
Dimensions and weight per module: 1762 × 1134 × 30 mm (±), 22 kg; 4 mm² cable (IEC) / 12 AWG (UL).
Strength and safety: static load 5400 Pa (front) and 2400 Pa (rear), max. system voltage 1500 Vdc, series fuse 30 A, NOCT 45 ± 2 °C.

Advantages or Benefits

Higher energy per square meter thanks to its bifacial nature and 22.8% efficiency.
Lower LCOE: 1% degradation in the first year and 0.4% annually up to 30 years, which stabilizes long-term output.
Reliability in demanding climates due to its IP68 box, double glass, and wide thermal range from −40 °C to +85 °C.
Universal compatibility with MC4-EVO2A connectors and standard 4 mm² cabling.
Pack of 10 units simplifies purchasing and logistics for 4–6 kW installations.

Purpose or Applications

Ideal for residential and commercial self-consumption, rooftop expansions, solar pergolas, industrial buildings, and parking lots. Also useful in photovoltaic pumping systems, off-grid installations with suitable regulators/inverters, or grid-connected plants.

Technical Specifications

Model	JAM54D40-455/LB (bifacial, n-type)
Power (front)	455 W
Efficiency	22.8%
Cells	Mono PERC 16BB – 108 (6×18)
Dimensions / Weight	1762×1134×30 mm; 22 kg
Glass	Double glass 1.6 mm / 1.6 mm
Voc / Vmp	39.50 V / 33.00 V
Isc / Imp	14.56 A / 13.79 A
Voc / Vmp (10% rear)	39.50 V / 32.99 V
Isc / Imp (10% rear)	15.73 A / 14.89 A
Max. system voltage	1500 Vdc
Series fuse	30 A
Box / Connector	IP68, 3 diodes / MC4-EVO2A
Cable length	300 mm(+) and 400 mm(−) vertical; 1200 mm(+) and 1200 mm(−) horizontal
Mechanical loads	5400 Pa front / 2400 Pa rear
NOCT	45 ± 2 °C
Warranties	25 years product / 30 years linear power

Compatibilities

Compatible with grid-tied and hybrid inverters whose input supports at least the module Isc and string voltages within 1500 Vdc; with MPPT regulators for off-grid systems sized to Voc/Vmp; with PV pumping systems; and with standard structures for 30 mm modules. Requires DC protections suitable for Isc and field voltage, as well as connectivity with MC4-EVO2A.

The Pack of 10 JA Solar 455W Bifacial Panels JAM54D40 LB offers the best power-to-area ratio and a guaranteed service life to maximize your self-consumption.
