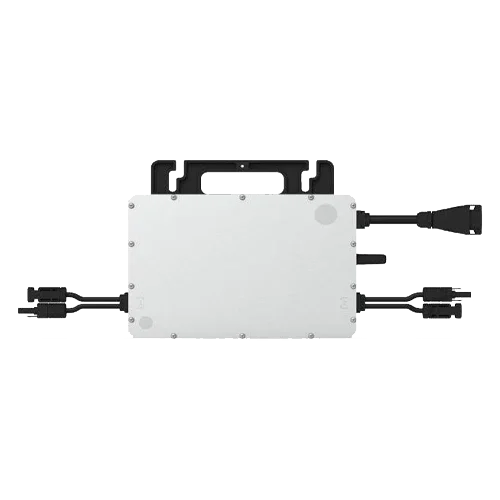

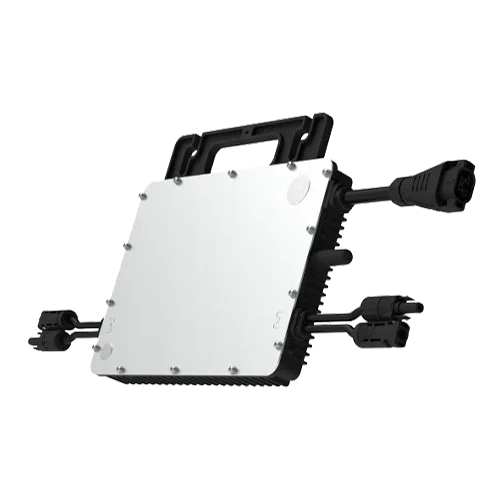

Hoymiles Microinverter HMS-1000-2T 1000W 2 MPPT 2 Panels

Modelo: HMS-1000-2T

Sku: HOYMINV004
Vendor: Hoymiles

€342,06 EUR

€273,65 EUR

Tax included.

Shipping calculated at checkout.

In stock!

Spend €150,00 to FREE SHIPPING

Hoymiles Microinverter HMS-1000-2T 1000W for 2 panels with 2×16 A input, 2 MPPT and MPPT 16–60 V. IP67, CEC efficiency 96.5%, and Sub-1G communication with S-Miles Cloud.

Product variants

Quantity

I agree with the Terms and Conditions.

Purchase with Secure Payment

Specifications

Product Description

The Hoymiles HMS-1000-2T 1000W 2 MPPT 2 Panel Microinverter is the top model of the HMS-2T series for two modules, designed for large-format, high-amperage panels. With 2×16 A input current, 1000 VA nominal AC power, MPPT range of 16–60 V, and IP67 protection rating, it ensures outstanding performance even in complex shading or orientation conditions. Its Sub-1G link with DTU provides stable communications, and the S-Miles Cloud platform offers per-panel monitoring, alarms, and detailed analytics to optimize system performance.

Main Features

Nominal output power: 1000 VA at 230 V, 50 Hz (nominal AC current 4.35 A).
2 MPPT architecture (1 input per MPPT) for maximum independence between modules.
MPPT range: 16–60 V; startup voltage 22 V; max. input voltage 65 V.
Max. input current: 2×16 A; permissible short-circuit current: 2×25 A.
CEC efficiency: 96.5%; MPPT efficiency: 99.8%; THD <3%; PF >0.99.
IP67 enclosure, passive cooling without fans, and galvanic isolation.

Advantages or Benefits

Maximum performance with 400–670 W modules and large cell sizes thanks to its high input current.
Scalability by panel pairs: ideal for phased expansion while maintaining granular control.
Lower OPEX with per-panel monitoring, remote diagnostics, and easy updates.
Outdoor reliability: IP67, sealed components, and natural convection cooling.
European regulatory compliance and safety features (rapid shutdown, HF isolation).

Purpose or Applications

Recommended for demanding residential self-consumption, SMEs, pergolas, and rooftops with multiple orientations, as well as projects requiring export control and zero feed-in via external metering. Its 1 kVA power allows you to maximize two next-generation modules in highly variable climates.

Technical Specifications

Nominal AC power	1000 VA
Nominal AC current	4.35 A
Voltage / Frequency	230 V (180–275 V) / 50 Hz (45–55 Hz)
No. MPPT / Inputs	2 / 1 per MPPT
MPPT range	16–60 V (startup voltage 22 V)
Max. input voltage	65 V
Max. input current	2×16 A (max. Isc 2×25 A)
CEC / MPPT efficiency	96.5% / 99.8%
THD / PF	<3% / >0.99 (0.8 leading…0.8 lagging)
Communication	Sub-1G with DTU; S-Miles Cloud monitoring
Cooling	Natural convection (no fans)
Protection rating	IP67 (outdoor)
Dimensions / Weight	261×180×31 mm / 3.1 kg
Ambient temperature	−40…+65 °C
Typical modules	400–670 W
Units per branch	10 AWG: 7 units · 12 AWG: 4 units
Standards	EN 50549-1, VDE-AR-N 4105, IEC/EN 62109, EMC

Compatibilities

Compatible with Hoymiles DTU gateways (DTU-WLite-S, DTU-Lite-S, DTU-W100, DTU-Pro-S, DTU-Pro-4G) and HMS accessories: HMS Connector, Trunk Cable AC 10 AWG, Connection Cable, Extension Connector, Sealing Cap, and disconnection tool. Integrable with DDSU666 (1F) and DTSU666 (3F) meters for export control and zero feed-in. No internal URLs, models are listed by name.

The Hoymiles HMS-1000-2T 1000W Microinverter is a high-power 2-in-1 solution that offers flexibility, safety, and advanced monitoring for next-generation photovoltaic projects.
