Lorentz 80m³ Solar Pool Kit PS2-600 CS-17-1 with Controller

Product Description

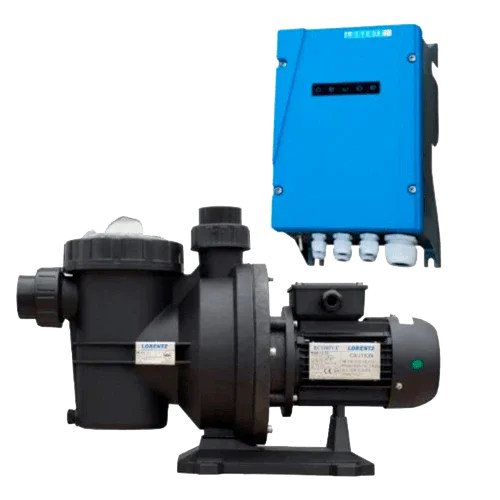

The Lorentz 80m³ PS2-600 CS-17-1 Solar Pool Kit with Controller is a turnkey solution for filtering and recirculating pools of up to 80 m³ using only solar energy. It integrates the Lorentz PS2-600 CS-17-1 centrifugal pump (maximum flow rate 18 m³/h; head 12 m), its MPPT PS2-600 controller, and 2 bifacial JA Solar modules of 595 W that maximize production during sunlight hours.

Main Features

• Hydraulic performance: 18 m³/h and 12 m head, ideal for residential pools up to 80 m³.
• MPPT PS2-600 controller: operates with Vmp > 68 V and supports up to 150 V Voc.
• ECDrive motor ≈0.70 kW brushless: high efficiency and low maintenance.
• Pump assembly with IP68 and robust materials for intensive use.
• Bifacial panels (2×595 W): higher effective production in real conditions.

Advantages or Benefits

• Energy saving: daily filtration without grid consumption.
• Automatic and intelligent: the MPPT adapts the pump speed to irradiation.
• Silent and reliable: brushless motor and sealed electronics.
• Quick installation: direct wiring diagram and 6 mm² PV1-F cable included.

Purpose or Applications

Filtration and recirculation of residential pools up to 80 m³, spas, and ponds with sand or cartridge filter, both in off-grid homes and for seasonal self-consumption.

Technical Specifications

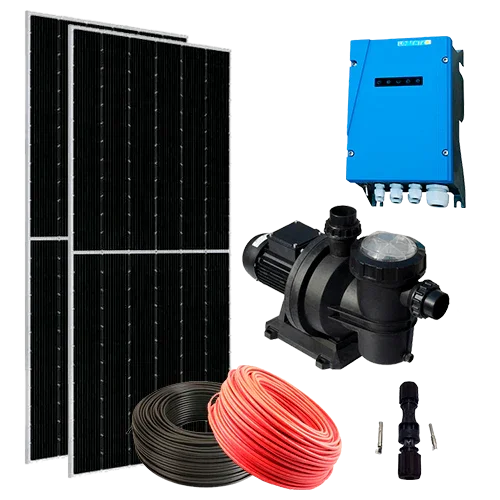

Kit Composition

• 1× Lorentz PS2-600 CS-17-1 Solar Pool Filter

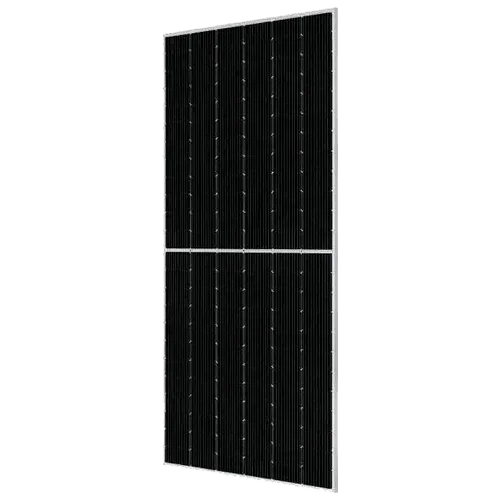

• 2× JA Solar 595 W JAM72D40 MB Bifacial Panel

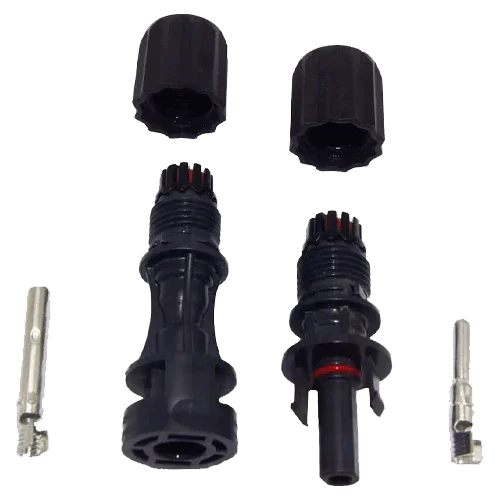

• 1× Pair of MC4 1500 VDC Connectors

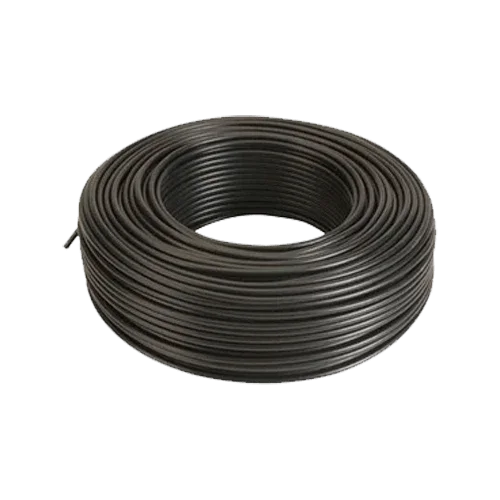

• 1× PV1-F Black Solar Cable 1×6 mm² 25 m

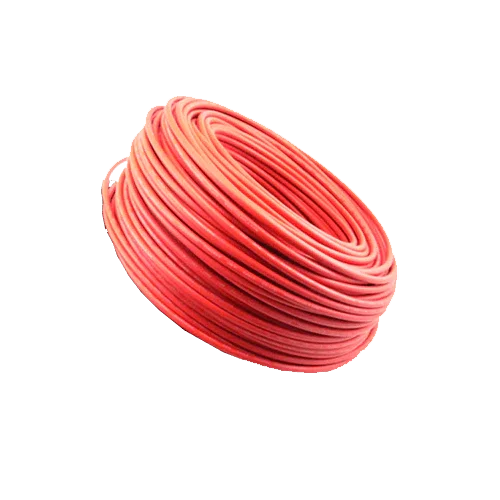

• 1× PV1-F Red Solar Cable 1×6 mm² 25 m

Compatibilities

Compatible with pools up to 80 m³. Supports external accessories such as panel structures, DC type II protection box, load break switch, and level probe/"dry well" function.

The Lorentz 80m³ PS2-600 CS-17-1 Solar Pool Kit with Controller allows you to keep water crystal clear with 100% solar energy, reducing costs and maintenance.
