Lorentz 125m³ Solar Pool Kit PS2-600 CS-17-1 with Controller

Product Description

The Lorentz 125m³ PS2-600 CS-17-1 Solar Pool Kit with Controller is sized for pools up to 125 m³. It maintains the same high-efficiency hydraulics and electronics (Lorentz PS2-600 CS-17-1 pump and MPPT PS2-600 controller), and increases PV generation with 3 bifacial 595 W modules to extend effective filtration hours and sustain the target flow rate throughout the day.

Main Features

• Professional hydraulics: 18 m³/h and 12 m head with a stable curve for volumes of 125 m³.
• MPPT PS2-600 controller: Vmp>68 V, Voc max. 150 V, intelligent pump management.
• ECDrive motor ≈0.70 kW, brushless: efficient, quiet, and durable.
• Protection rating IP68 on the pump unit and robust construction.
• Extended generation: 3×595 W bifacial modules for more hours of effective filtration.

Advantages or Benefits

• Free daily filtration with a longer operating window in summer.
• Fewer chemicals and clear water due to more hours of recirculation.
• Simple and scalable installation; minimal maintenance.
• Integrated electronic protections for safe use.

Purpose or Applications

Residential or community pools up to 125 m³, rural hotels, campsites, and off-grid homes seeking 100% solar-powered filtration.

Technical Specifications

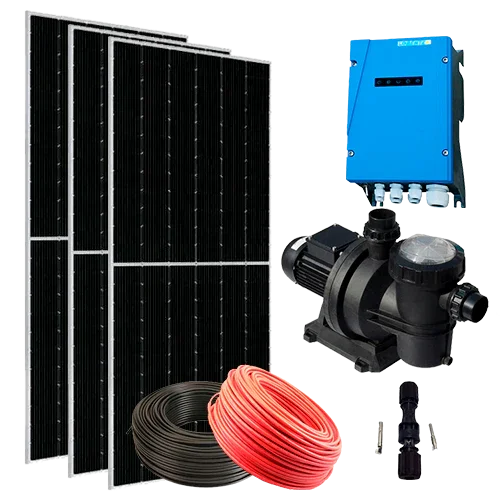

Kit Composition

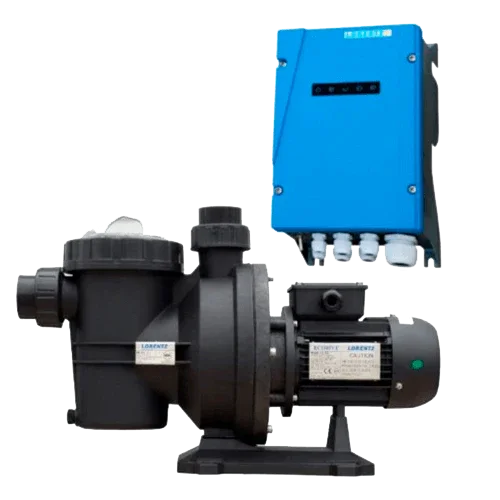

• 1× Lorentz PS2-600 CS-17-1 Solar Pool Filter

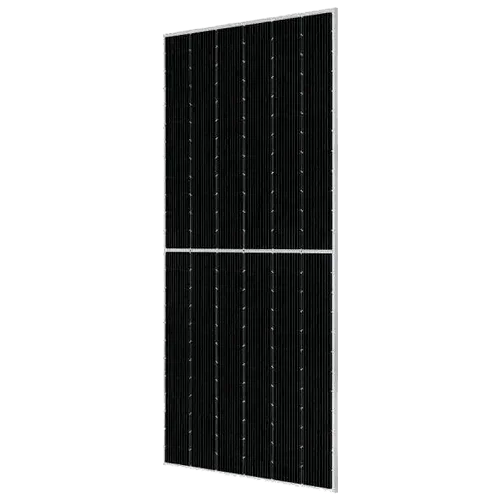

• 3× JA Solar 595 W JAM72D40 MB Bifacial Panel

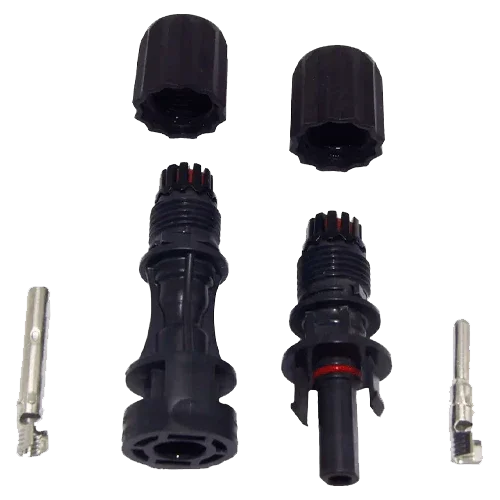

• 1× Pair of MC4 1500 VDC Connectors

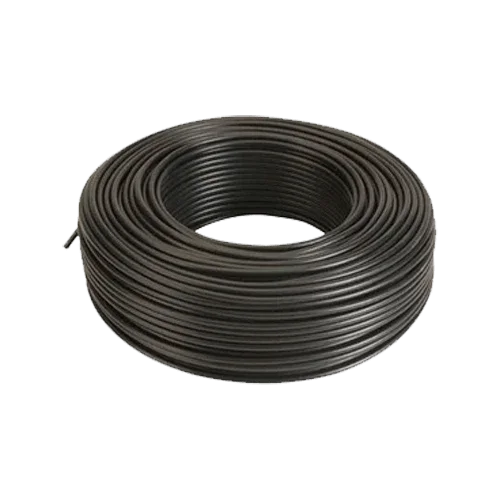

• 1× Solar Cable PV1-F Black 1×6 mm² 25 m

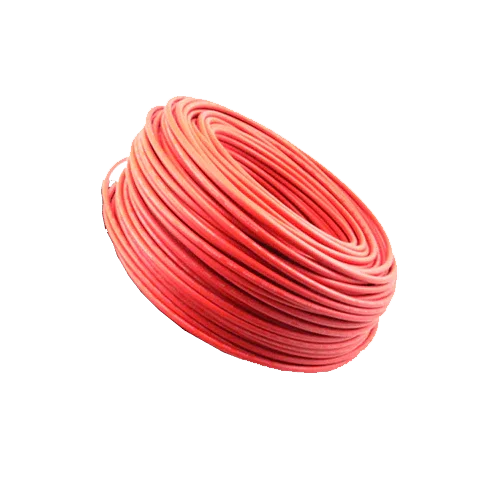

• 1× Solar Cable PV1-F Red 1×6 mm² 25 m

Compatibilities

Compatible with pools up to 125 m³. Recommended to integrate with structure for modules, DC type II protection box, load break switch, and level probe/“dry well”.

The Lorentz 125m³ PS2-600 CS-17-1 Solar Pool Kit with Controller maximizes filtration hours with 100% solar energy, reducing costs and improving water quality during peak season.
