ZIRI 4SC3-340 5HP 340m 6.9m³/h Solar Pump Kit

Product Description

The ZIRI 4SC3-340 5 HP 340 m 6.9 m³/h Solar Pump Kit is designed for high-lift pumping in deep wells, with 100% solar operation and minimal maintenance. The 4” submersible centrifugal pump combines 340 m maximum head with a flow rate of up to 6.9 m³/h, ideal for transferring water to elevated tanks, irrigation at high elevations, and long-distance conveyance. The system is solar only and includes an external controller with MPPT, which keeps performance stable and safe throughout the day. The PV array (14×455 W) is sized to operate within the controller’s window, maximizing useful pumping hours.

Main Features

• 4” centrifugal hydraulics: up to 6.9 m³/h and 340 m head for deep wells.
• 100% solar system with external MPPT controller (non-hybrid equipment) for greater reliability.
• Controller electrical range: Vmp 90–380 V and Voc ≤440 V (safe operation with long series).
• PV generator included: 14 × 455 W JA Solar (≈6.37 kWp) with MC4 connectors and PV1-F 1×6 mm² cable.
• Typical array configuration: two strings in parallel maintaining the MPPT window.
• Separate and accessible electronics for easy maintenance and diagnostics.

Advantages or Benefits

• Very high pressure for lifting water to tanks and networks located at high elevations.
• Minimal operating cost: operates solely on photovoltaic energy.
• More pumping hours thanks to MPPT tracking under variable irradiance.
• Safety: DC voltages within controlled limits (Voc ≤440 V) and simplified wiring.
• Professional reliability for continuous agricultural use and demanding projects.

Purpose or Applications

Sprinkler irrigation at medium/high pressure, filling elevated tanks or reservoirs, long-distance water transfer, and supply for agricultural or industrial operations with significant elevation differences.

Technical Specifications

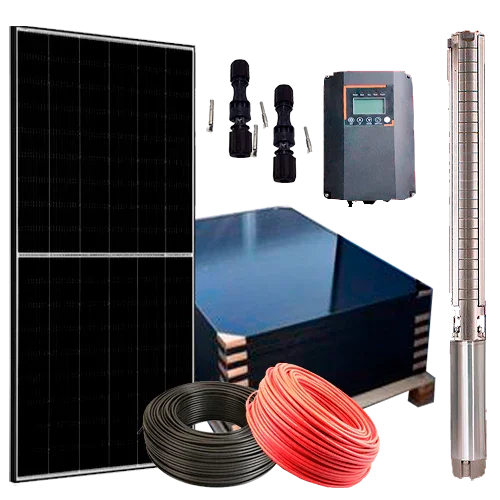

Kit Composition

• 1 × ZIRI 4SC3-340 5 HP 340 m 6.9 m³/h Solar Submersible Pump
• 14 × JA Solar 455 W JAM54D40 LB Bifacial Solar Panel
• 2 × Pair of MC4 WSPVCC-1500 Connectors
• 1 × PV1-F Black Solar Cable 1×6 mm² 50 m
• 1 × PV1-F Red Solar Cable 1×6 mm² 50 m

Compatibilities

Recommended accessories (not included): structures for 14 modules, DC protection box (PV circuit breaker + SPD), load break switch and string box if applicable, level probe/switch, check and foot valve, line filter, safety rope, and piping suitable for flow/pressure. If you expand or modify the PV generator, always respect the controller’s Vmp 90–380 V and Voc ≤440 V; the indicated PV power is a sizing recommendation to ensure good flow rate.

The ZIRI 4SC3-340 Solar Pump Kit is the professional option for deep wells requiring high pressure with 100% solar operation and long-term reliability.
