Shurflo 94-142-00 Gaskets Replacement Kit Series 9300
Modelo: 94-142-00- Sku: SHURREP018
- Vendor: Shurflo
Specifications
Product Description

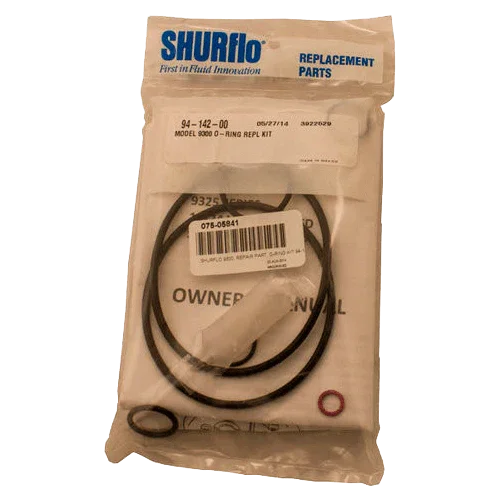

The Shurflo 94-142-00 Gasket Kit is the original seal set for submersible pumps of the 9300 series. It includes O-rings and critical gaskets that ensure watertightness between the casing, hydraulic head, and internal passages. Over time, the elastomer loses elasticity due to temperature, pressure, and water agents, causing micro-leaks, flow reduction, and thermal trips of the motor. This kit restores perfect sealing and factory hydraulic performance.
Main Features

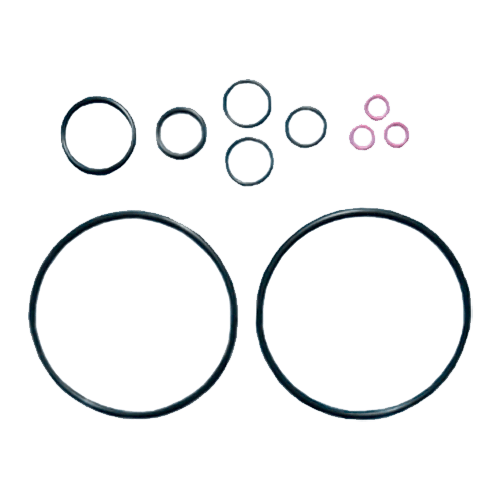

- Complete set of gaskets and sealing O-rings for key points of the 9300.
- Exact fit and selected materials for submersible operation and continuous cycles.
- Guaranteed compatibility with Shurflo 9300 pumps (including 9325).
- Reduces air ingress and internal losses that affect flow and pressure.
- Recommended after any intervention on the casing, valves, or diaphragm.
Advantages or Benefits
- Restores nominal performance and efficiency of the solar installation.
- Prevents moisture in the motor area and failures due to corrosion or overheating.
- Reduces vibrations and noise associated with cavitation and air intake.
- Quick and economical intervention that extends the life of the pumping assembly.
- Improves system reliability in deep wells and critical applications.
Purpose or Applications
Essential for scheduled maintenance, replacement of casing 94-140-00, or substitution of valves 94-137-00 and diaphragm 94-138-00. Applicable to 9300 pumps used in irrigation, tanks, off-grid homes, and livestock with solar energy.
Technical Specifications
| Reference | 94-142-00 (9300 series gasket kit) |
| Compatibility | Shurflo 9300 series pumps (e.g., 9325) |
| Contents | O-rings and gaskets for critical sealing points |
| Function | Restore watertightness and prevent leaks/air suction |
| Environment | Continuous submersible operation; resistant to service pressure and temperature |
| Maintenance | Replace when assemblies are opened or if leakage symptoms appear |
Compatibilities
Direct compatibility: Shurflo 9300 series submersible pumps.

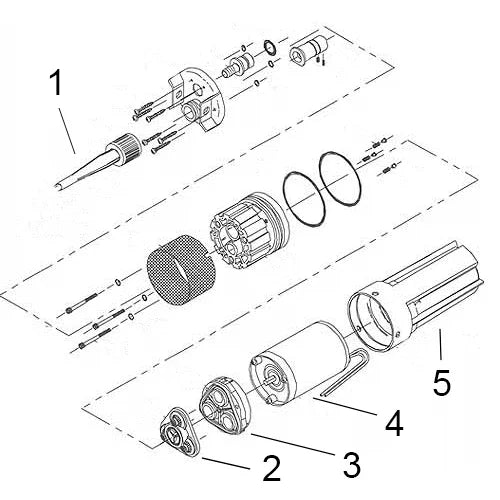

Related accessories/spare parts: Connector 94-136-00, Valves 94-137-00, Diaphragm 94-138-00, Motor 94-139-00, Casing 94-140-00.
The Shurflo 94-142-00 Gaskets ensure perfect sealing of the assembly and restore your 9300 pump to the reliability and performance you need in demanding solar installations.
