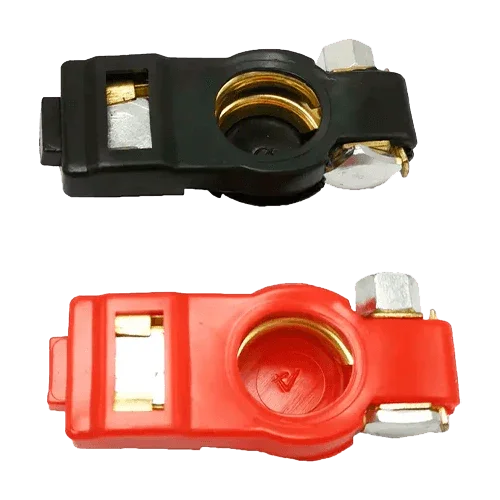

Battery Terminal Set with M8 Bolts
Modelo: Juego de Terminales- Sku: WORLACC003
- Vendor: WorldSunLight
Specifications
Product Description
The Battery Terminal Set with M8 Hardware is designed to provide reliable connections between your battery bank and power cabling in 6 V, 12 V, 24 V, or 48 V systems. Each set includes a positive and a negative terminal with color-coded covers (red/black) for easy polarity identification, enhanced safety, and protection against dust and moisture. Its copper body ensures excellent electrical conductivity, minimizes voltage drop, and withstands the demands of starting, traction, or photovoltaic self-consumption.
Main Features
- Included M8 hardware for securely fastening cable terminals with eyelets and power accessories.
- Copper body with protective coating: low resistance, high conductivity, and anti-corrosion performance.
- Plastic covers red (positive) and black (negative) with dustproof and moisture-resistant function.
- Compatible with 6–48 V banks: suitable for automotive, solar, and marine batteries.
- Optimized internal diameters for SAE tapered post: ~18 mm ( +) and ~17.5 mm ( − ), solid fit without play.
- Clamp design with locking screw: quick, repeatable assembly with high mechanical stability.
Advantages or Benefits
- Professional installation in minutes: attach the cable’s M8 eyelet, tighten, and you’re done.
- Lower voltage drop thanks to solid copper and large contact surface.
- Longer system lifespan by resisting corrosion and vibrations typical of vehicles and boats.
- Immediate visual safety through color coding and insulating covers.
- Versatility for expansions: supports bridges, ANL/MEGA fuses with M8 stud, disconnect switches, and busbars.
Purpose or Applications
Recommended for battery connections in residential and caravan photovoltaic systems, backup and inverters, light electric mobility, automotive, marine, and industrial applications where a low-resistance, highly reliable connection is required.
Technical Specifications
| Format | Set of 2 pieces (positive + negative) |
| Body material | Copper |
| Cover material | Insulating plastic (red/black), dustproof and moisture-resistant |
| Mounting hardware | M8 (studs and nuts for eyelet terminals) |
| Voltage compatibility | 6 V / 12 V / 24 V / 48 V |
| Internal diameter positive terminal | ≈ 18 mm (SAE tapered positive post) |
| Internal diameter negative terminal | ≈ 17.5 mm (SAE tapered negative post) |
| Approximate length | ≈ 63 mm (body with cover) |
| Color / Polarity | Red (+) / Black (−) |
| Electrical properties | High conductivity, low contact resistance |
Compatibilities
Suitable for batteries with SAE tapered post and connections via M8 eyelet terminals, M8 busbars, ANL/MEGA fuses with M8 stud, battery disconnect switches, and 12/24/48 V power cables. Compatible with flat terminals using appropriate eyelet terminals. Batteries not included.
The Battery Terminal Set with M8 Hardware is the practical and safe solution for achieving robust electrical connections in solar, automotive, and marine installations, ensuring maximum conductivity and durability with a clean, professional assembly.
