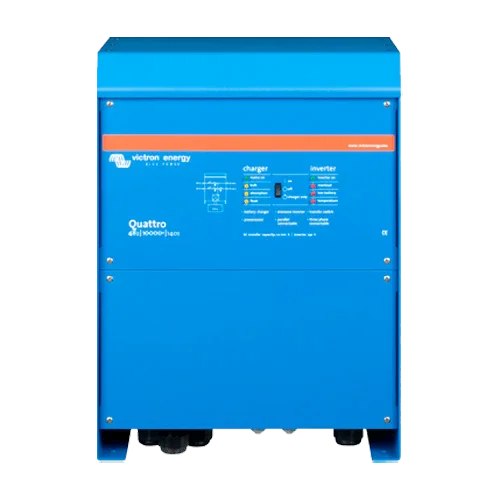

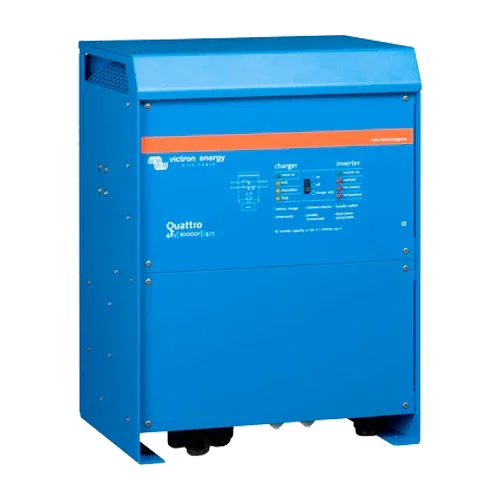

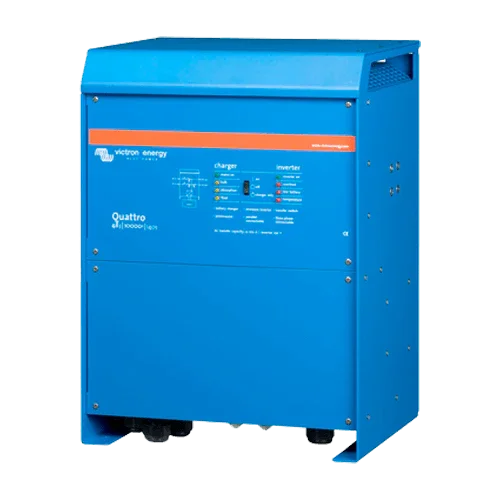

Inverter with Charger Victron Quattro 48V 10000VA 48/10000/140-100/100
Modelo: Quattro 48/10000/140-100/100- Sku: VICTINV052
- Vendor: Victron
Specifications
Product Description
The Victron Quattro 48V 10000VA 48/10000/140-100/100 is a professional inverter-charger for 48 V installations that require 10 kVA continuous power, absolute continuity, and advanced energy control. It integrates two AC inputs (grid and generator) with automatic switching, a main “no-break” output, and a 140 A charger capable of quickly recovering large-capacity battery banks. With PowerAssist, parallel/three-phase operation, and full monitoring via GX and VRM, it is the ideal centerpiece for large homes, businesses, or demanding microgrids.
Main Features
- Rated power: 10,000 VA with high peak capacity for motor starting and inductive loads.
- Dual AC input 2×100 A with ultra-fast transfer (<20 ms) keeping critical loads always active.
- 48 V charger up to 140 A with Abs/Float/Storage curves and lithium battery support via BMS.
- PowerAssist/PowerControl: limits input current and adds battery power during peaks.
- Scalable: parallel (up to 6 units) and three-phase via VE.Bus; 100 A auxiliary output and programmable relay.
- Monitoring and control: Digital Multi Control, Cerbo/CCGX, VE.Bus Smart Dongle, VRM portal with alarms and history.
Advantages or Benefits
- Total continuity for sensitive equipment with seamless switching.
- Fast recharging with 140 A, reducing generator hours and downtime.
- Ready to expand: parallel and three-phase to increase power or create microgrids.
- Remote management without fees with diagnostics and predictive maintenance.
- Electronic and thermal protections for intensive and safe operation.
Purpose or Applications
High-consumption residential, commercial and light industry, yachts, telecom centers, and microgrids with generator where dual AC source, high peak capacity, and advanced 48 V system control are required.
Technical Specifications
| Inverter power | 10,000 VA; very high peak for starting |
| Battery voltage | 48 V (typical range 38–66 V) |
| Charger | 140 A max.; Abs 57.6 V / Float 55.2 V / Storage 52.8 V |
| AC inputs | 2×100 A (187–265 V, 45–65 Hz) |
| Main output | “No-break” (<20 ms) |
| Efficiency / consumption | High (≈95%); search mode to reduce idle consumption |
| Auxiliary output | 100 A when AC input is present |
| Interfaces | VE.Bus; programmable relay; compatible with GX/VRM |
| Protection | IP21; integrated electrical and thermal protections |
| Dimensions / weight | ≈470 × 350 × 280 mm; ≈48–52 kg |
| Operating temperature | −40 °C to +65 °C (forced ventilation) |
Compatibilities
Digital Multi Control Panel, BMV-712 or SmartShunt, MK3-USB, VE.Bus Smart Dongle, Cerbo/Color Control GX, energy meters for ESS/zero feed-in and generator start via relay. Does not integrate MPPT controller; use Victron solar controllers for PV.
The Victron Quattro 48V 10000VA 48/10000/140-100/100 provides continuous power, dual AC input, and professional monitoring for high-performance 48 V systems, whether for self-consumption, backup, or off-grid installations.
