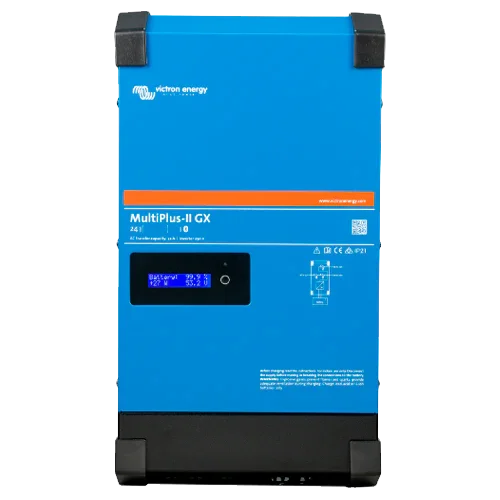

Inverter with Charger Victron MultiPlus-II 24V 5000VA 24/5000/120-50
Modelo: Multiplus-II 24/5000/120-50- Sku: VICTINV029
- Vendor: Victron
Specifications
Product Description
When a 24 V project demands more continuous power and very fast battery charging, the Victron MultiPlus-II 24V 5000VA 24/5000/120-50 delivers with 5000 VA and advanced energy management. Its 50 A automatic transfer, pure sine wave output at 230 V, and PowerAssist ensure stable loads even if the grid or generator falls short. Thanks to its ESS compatibility, it is perfect for self-consumption with batteries, comprehensive backup, and professional applications.
Main Features
- Continuous power 5000 VA (≈4000 W) and peak starting power up to ≈9000 W.
- 50 A automatic transfer with “no-break” time (<20 ms) for total continuity.
- Battery charger of up to 120 A with adjustable profiles and temperature compensation.
- PowerControl/PowerAssist: combines grid/generator with battery to prevent overloads and outages.
- Ready for ESS with anti-islanding, support for meter or external sensor, and advanced flow control.
- Professional scalability: up to 6 units in parallel and three-phase configurations.
Advantages or Benefits
- Greater starting capacity for pumps, air conditioners, compressors, or industrial loads.
- Fewer generator hours: the 120 A charger restores the bank faster, reducing fuel and noise.
- Monitoring and control from VictronConnect or GX devices with remote access via VRM.
- Robust installation with electronic protections, programmable relay, and VE.Bus communications.
- Platform ready to expand and integrate more power or phases as the project requires.
Purpose or Applications
Off-grid homes with high demand at 24 V, residential and commercial ESS systems, premium marine and camper applications, micro-grids with backup generator, and backup panels requiring 50 A transfer and high peaks.
Technical Specifications
| Model | MultiPlus-II 24/5000/120-50 |
| Battery voltage | 24 V (approx. range 19–33 V) |
| Continuous power | 5000 VA / ≈4000 W at 25 °C |
| Peak power | ≈9000 W |
| AC output | 230 V ±2 % | 50 Hz (adjustable to 60 Hz) |
| Transfer | 50 A “no-break” (<20 ms) |
| Charger | Max current 120 A | Absorption ≈28.8 V | Float ≈27.6 V | Storage ≈26.4 V |
| Max efficiency | ≈95 % |
| No-load consumption | ≈15–18 W (search mode ≈3 W) |
| Communication | VE.Bus, auxiliary inputs/outputs, remote On/Off |
| Functions | PowerControl, PowerAssist, ESS, programmable relay |
| Protection | Overload, over/under-voltage, short circuit, temperature, etc. |
| Protection rating | IP22 |
| Dimensions / Weight | ≈565×320×149 mm / ≈30–33 kg |
| Operating temperature | −40…+65 °C (active ventilation) |
Compatibilities
Recommended accessories and components: Cerbo GX / Color Control GX / Octo GX; VRM portal; VE.Bus Smart Dongle; MK3-USB; Digital Multi Control panel; 100 A:50 mA energy meter or external AC sensor; Victron MPPT controllers and grid-tied inverters in ESS configurations.
The Victron MultiPlus-II 24V 5000VA 24/5000/120-50 combines power, charging speed, and advanced control to provide professional reliability to any modern 24 V system.
