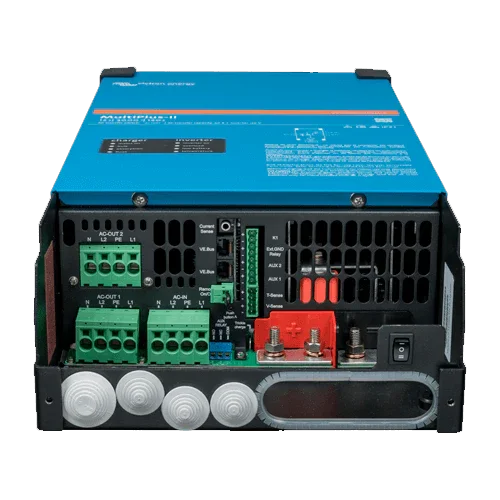

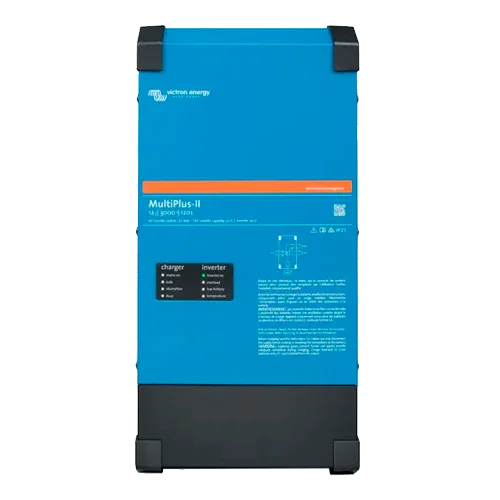

Inverter with Charger Victron MultiPlus-II 12V 5000VA 12/5000/220-50
Modelo: Multiplus-II 12/5000/220-50- Sku: VICTINV013
- Vendor: Victron
Specifications
Product Description
With greater power reserve and an ultra-fast charger, the Victron MultiPlus-II 12V 5000VA 12/5000/220-50 is the choice for high-demand 12 V projects. It delivers 5000 VA continuous with pure sine wave, 50 A automatic transfer, and PowerAssist to supplement the grid or a generator when the load exceeds available power, keeping the installation stable and efficient.
Main Features
- Continuous power 5000 VA (4000 W) with a peak of 9000 W for hard start loads.
- Automatic transfer 50 A with “no-break” function (<20 ms) to protect sensitive equipment.
- Fast charger up to 220 A with temperature sensor and adjustable profiles.
- Integration in ESS with anti-islanding and support for external sensor/meter to prioritize self-consumption.
- Scalable: parallel up to 6 units and possibility of three-phase configurations.
- VE.Bus communications, two general-purpose ports, and remote control via GX/VRM or VictronConnect.
Advantages or Benefits
- Stable and silent power at 230 V for off-grid homes, boats, or professional vehicles.
- Faster battery recovery thanks to high charging current, reducing generator hours.
- Total continuity: the main output maintains critical loads during outages and transfers.
- Safe operation with electronic protections and active thermal management.
- Investment ready to grow and adapt to new energy needs.
Purpose or Applications
Recommended for off-grid homes with high peaks, 12 V ESS systems with large battery capacity, cruising boats, premium campers, and backup solutions requiring 50 A transfer and high charging current.
Technical Specifications
| Model | MultiPlus-II 12/5000/220-50 |
| Battery voltage | 12 V (range 9.5–17 V) |
| Continuous power | 5000 VA / 4000 W at 25 °C |
| Peak power | 9000 W |
| AC output | 230 V ±2 % | 50 Hz (adjustable to 60 Hz) |
| Transfer | Automatic transfer 50 A (“no-break” <20 ms) |
| Charger | Max current 220 A | Absorption 14.4 V | Float 13.8 V | Storage mode 13.2 V |
| Max efficiency | ≈95 % |
| No-load consumption | ≈15–18 W (search mode ≈3 W) |
| Communication | VE.Bus, 2 general-purpose ports, remote On/Off |
| Functions | PowerControl, PowerAssist, ESS, programmable relay |
| Protection | Overload, short circuit, over/under voltage, temperature, etc. |
| Protection rating | IP22 |
| Dimensions / Weight | ≈565×320×149 mm / ≈30–33 kg |
| Operating temperature | −40 … +65 °C (active ventilation) |
Compatibilities
Recommended accessories and components: Cerbo GX / Color Control GX / Octo GX; VRM portal; 100 A:50 mA energy meter or external AC sensor; VE.Bus Smart Dongle; MK3-USB interface; Digital Multi Control panel; Victron controllers/MPPT and grid-tied PV inverters in ESS systems.
The Victron MultiPlus-II 12V 5000VA 12/5000/220-50 provides high-level power, ultra-fast charging, and advanced energy management for 12 V installations that demand professional performance and total continuity.
