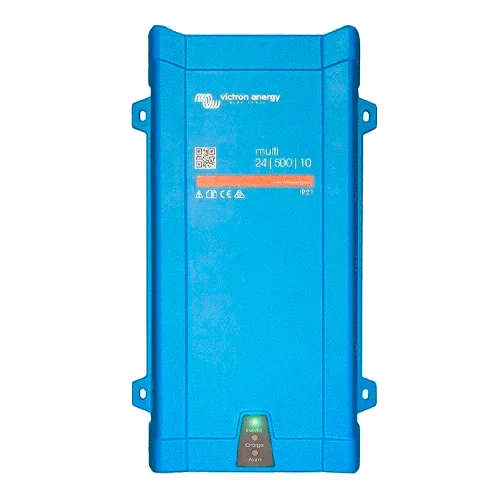

Inverter with Charger Victron MultiPlus 24V 500VA 24/500/10-16
Modelo: Multiplus 24/500/10-16- Sku: VICTINV016
- Vendor: Victron
Specifications
Product Description
The Victron MultiPlus 24V 500VA 24/500/10-16 integrates a 230 V sine wave inverter and a 24 V smart battery charger into a single unit, designed for small-scale mobile and residential applications. With its fast 16 A transfer switch, it ensures continuous and stable power supply for sensitive electronics, reducing downtime and interruptions when switching between the battery and an external source (grid or generator). Its compact size, Victron efficiency, and compatibility with the VE.Bus ecosystem make it the ideal choice for caravans, boats, and cabins with modest but constant demands.
Main Features
- Inverter power: 500 VA (≈430 W continuous at 25 °C); peak ≈900 W for startups.
- 10 A battery charger with adaptive multi-stage algorithm.
- 16 A transfer switch with fast and stable switching.
- 24 V DC input (typical range 19–33 V) and 230 V 50 Hz pure sine output.
- High efficiency (≈90 %) and Search Mode for very low standby consumption (~2 W).
- VE.Bus, programmable relay, and integration with GX systems and VRM portal.
Advantages or Benefits
- Pure sine wave that protects sensitive equipment (IT, communications, instrumentation).
- Safe and controlled charging that extends the life of the battery bank (AGM, GEL, open lead-acid, or lithium).
- Service continuity thanks to fast transfer and peak power for startups.
- Ultra-low standby consumption that maximizes autonomy in off-grid and recreational vehicles.
- Remote monitoring and control for diagnostics, alerts, and energy optimization.
Purpose or Applications
Especially suitable for compact motorhomes, camper vans, small boats, 24 V solar systems for cabins, remote instrumentation, and mobile workstations that require stable 230 V with integrated charger and low consumption.
Technical Specifications
| Nominal power | 500 VA (≈430 W at 25 °C); peak ≈900 W |
| DC input voltage | 24 V (≈19–33 V) |
| AC output | 230 V ±2 %, 50 Hz (adjustable) |
| Max efficiency | ≈90 % |
| No-load consumption | ≈6 W; in Search Mode ≈2 W |
| Charger | 10 A; Absorption ≈28.8 V / Float ≈27.6 V / Storage ≈26.4 V |
| Transfer | 16 A |
| Communications | VE.Bus, programmable relay, DIP; GX/VRM compatible |
| Protection / IP | Multiple protections; IP21 |
| Dimensions / Weight | ≈311×182×100 mm; ≈4.5 kg |
| Operating temperature | −40…+65 °C (with ventilation) |
| Compatible batteries | Lead (AGM, GEL, open) and lithium (configurable) |
Compatibilities
Compatible with: Cerbo GX / Ekrano GX, VE.Bus Smart Dongle, Digital Multi Control Panel, MK3-USB interface, BMV-712 Smart and SmartShunt monitors, VictronConnect, and VRM portal.
The Victron MultiPlus 24V 500VA 24/500/10-16 offers reliable 230 V supply and optimized 24 V charging in a lightweight, professional format, perfect for small off-grid or mobile systems that demand maximum efficiency and reliability.
