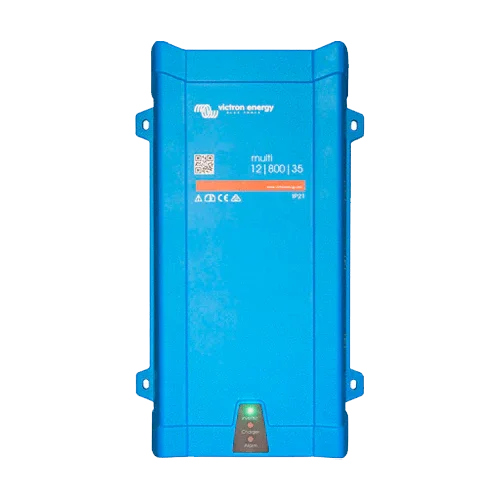

Inverter with Charger Victron MultiPlus 12V 800VA 12/800/35-16
Modelo: Multiplus 12/800/35-16- Sku: VICTINV002
- Vendor: Victron
Specifications
Product Description
The Victron MultiPlus 12V 800VA 12/800/35-16 enhances performance in caravans, boats, and off-grid homes by integrating a 230 V sine wave inverter, 35 A smart charger, and dynamic power management. With PowerControl and PowerAssist, it supplements the grid or generator during demand peaks, ensuring stable power supply and optimal battery bank charging.
Main Features
- Continuous power: 700 W at 25 °C (peak 1600 W); 230 V 50 Hz pure sine wave output.
- 35 A charger with adaptive algorithm and temperature sensor for lead-acid and lithium.
- 16 A transfer switch and PowerControl/PowerAssist functions.
- 12 V DC input (9.5–17 V) with high efficiency (≈92–93%).
- Search Mode for standby consumption ~2 W and programmable relay.
- VE.Bus for parallel operation, three-phase, remote control, and monitoring in VRM.
Advantages or Benefits
- Powers sensitive loads without noise or drops thanks to pure sine wave.
- Prevents generator/outlet tripping by limiting current and supplying power from the battery during peaks.
- Fast and safe charging that extends battery life even in demanding climates.
- Ready to expand: parallel operation and three-phase option with Victron devices.
- Management and diagnostics from the VictronConnect app and the VRM portal.
Purpose or Applications
Versatile solution for equipped motorhomes, recreational boats, site cabins, food trucks, and 12 V residential solar systems with moderate consumption, where 230 V continuity and a powerful charger are required.
Technical Specifications
| Inverter power | 800 VA (700 W at 25 °C); peak 1600 W |
| DC input voltage | 12 V (9.5–17 V) |
| AC output | 230 V ±2%, 50 Hz (adjustable) |
| Max efficiency | ≈92–93% |
| No-load consumption | ~7 W; in Search Mode ~2 W |
| Charger | 35 A; absorption 14.4 V / float 13.8 V / storage 13.2 V |
| PowerControl/Assist | Yes (supplies power from battery during peaks) |
| Transfer | 16 A |
| Parallel / Three-phase | Up to 6 units in parallel and 3-phase option |
| Communications | VE.Bus; programmable relay; DIP switches |
| Protection / IP | Multiple protections; IP21 |
| Dimensions / Weight | 360×240×100 mm; 6.4 kg |
| Operating temperature | −40…+65 °C (ventilated) |
| Certifications | EN/IEC 60335, EN 62109-1, ECE R10-5 |
Compatibilities
Compatible with: Cerbo GX/Ekrano GX, VE.Bus Smart, Multi Control Digital Panel, MK3-USB Interface, BMV-712 Smart and SmartShunt monitors, VRM portal, and VictronConnect app.
The Victron MultiPlus 12V 800VA 12/800/35-16 provides stable power, fast charging, and intelligent management for 12 V projects that demand performance and reliability with expansion capability.
