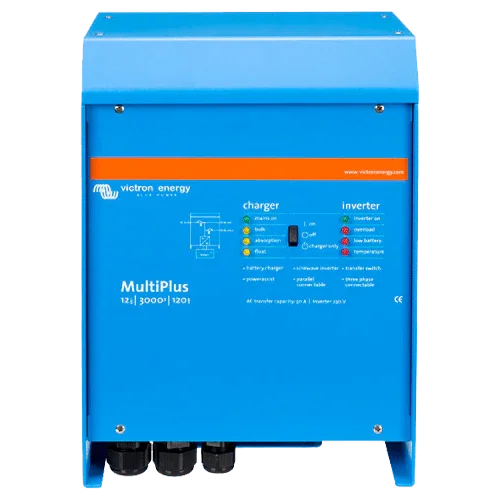

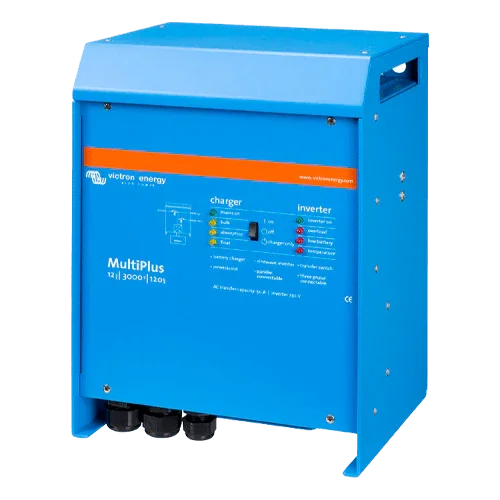

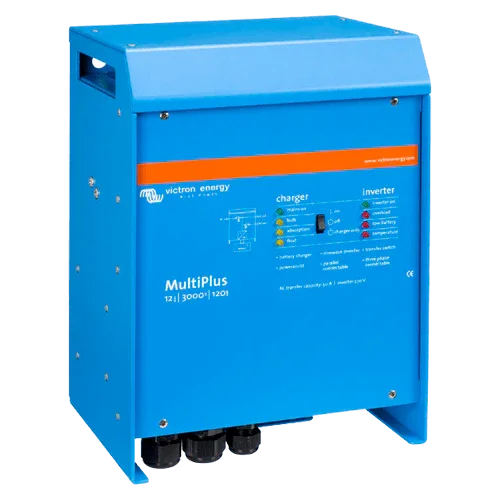

Inverter with Charger Victron MultiPlus 12V 3000VA 12/3000/120-50
Modelo: Multiplus 12/3000/120-50- Sku: VICTINV011
- Vendor: Victron
Specifications
Product Description
The Victron MultiPlus 12V 3000VA 12/3000/120-50 is the version with reinforced switching (50 A) of the MultiPlus 3 kVA at 12 V. It combines a high peak pure sine wave inverter with a fast 120 A charger and PowerControl/PowerAssist functions to manage available power and support peaks from the battery. Its UPS-type transfer time keeps sensitive equipment operational, while the second AC output allows separation of non-critical loads.
Main Features
- Inverter power: 3000 VA (≈2500 W continuous); peak ≈6000 W for startups.
- 120 A charger with multi-stage algorithms optimized for lithium and lead-acid.
- Automatic switching of 50 A (“-50” code) for powerful mains/generators.
- PowerAssist and PowerControl: prevents tripping and stabilizes the internal grid.
- Two AC outputs: main uninterrupted and secondary active only with AC input available.
- VE.Bus, programmable relay, and Victron ecosystem for professional configuration and monitoring.
Advantages or Benefits
- Superior transfer capacity (50 A) for panels with more simultaneous loads.
- Uninterrupted continuity, protecting sensitive electronics and processes.
- Optimizes investment: more usable power without oversizing generators.
- Total control from app and cloud portal, with history and alarms.
- Robust, reliable installation ready for parallel expansions.
Purpose or Applications
Off-grid homes with multiple circuits, well-equipped boats and motorhomes, mobile workshops, telecom, and light residential/industrial backup systems requiring 50 A transfer at 12 V.
Technical Specifications
| Power | 3000 VA (≈2500 W continuous); peak ≈6000 W |
| Nominal voltage | 12 Vdc |
| Charger | 120 A; Abs ≈14.4 V / Float ≈13.8 V / Storage ≈13.2 V |
| AC Transfer | 50 A; UPS <20 ms |
| Waveform | Pure sine wave 230 V / 50 Hz |
| Efficiency | ≈94 % |
| No-load consumption | ≈10–15 W (search mode ≈2–3 W) |
| Communications | VE.Bus; remote on/off; programmable relay |
| Protections | Overload, short circuit, high/low V, temperature, etc. |
| Protection rating | IP20 (indoor) |
| Dimensions / Weight | ≈362 × 258 × 218 mm / ≈18 kg |
| Operating temperature | −40 … +65 °C (derating with temperature) |
Compatibilities
Compatible with: Cerbo GX, VE.Bus Smart Dongle, Digital Multi Control Panel, MK3-USB, BMV-712/SmartShunt, VictronConnect app, and VRM portal. It is recommended to use with AC/DC protections, contactors, and advanced monitoring.
The Victron MultiPlus 12V 3000VA 12/3000/120-50 is the choice for projects that require continuous power, high transfer capacity, and intelligent energy management at 12 V.
