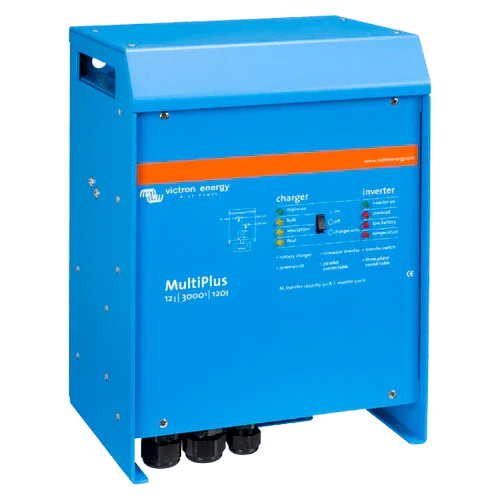

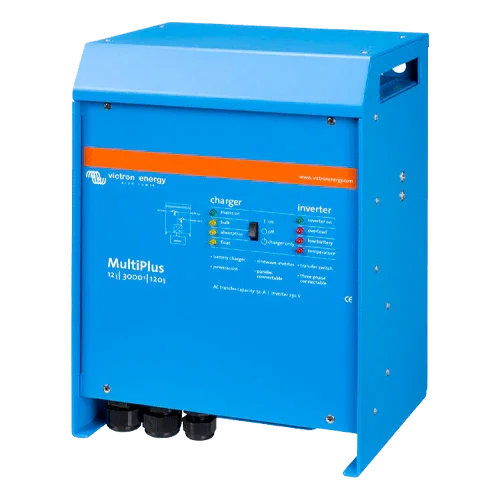

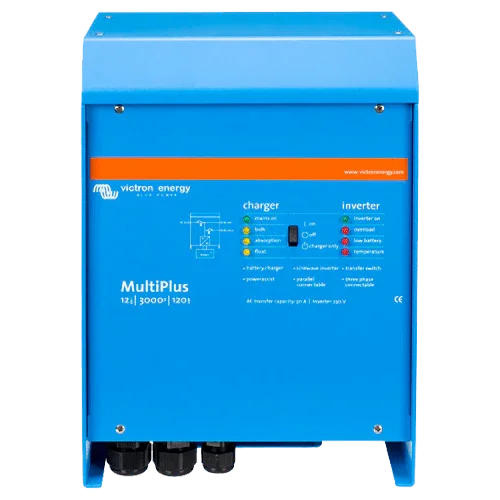

Inverter with Charger Victron MultiPlus 12V 3000VA 12/3000/120-16

Modelo: Multiplus 12/3000/120-16

Sku: VICTINV010
Vendor: Victron

€1.624,50 EUR

€1.299,59 EUR

Tax included.

Shipping calculated at checkout.

In stock!

Spend €150,00 to FREE SHIPPING

Victron MultiPlus 12V 3000VA 12/3000/120-16 is a pure sine wave inverter with charger with 120 A charger, PowerAssist and 16 A transfer, ideal for campers, boats, and off-grid homes with multiple loads.

Product variants

Quantity

I agree with the Terms and Conditions.

Purchase with Secure Payment

Specifications

Product Description

The Victron MultiPlus 12V 3000VA 12/3000/120-16 combines a pure sine wave inverter of 3 kVA with an ultra-fast 120 A charger and a 16 A automatic transfer switch. Designed for 12 V systems that require real power and continuity, it integrates PowerControl/PowerAssist to supplement the grid or generator with battery energy, while its UPS-type switching keeps sensitive equipment running without flicker.

Main Features

Inverter power: 3000 VA (≈2500 W continuous); peak ≈6000 W for demanding startups.
120 A charger with multi-stage curves and profiles for AGM, GEL, and lithium.
Automatic transfer of 16 A with typical time <20 ms (UPS mode).
PowerControl and PowerAssist functions to limit input and support peaks from the battery.
Two AC outputs: main uninterrupted and secondary active only with grid/generator.
VE.Bus for advanced configuration, monitoring, and parallel operation; programmable relay.

Advantages or Benefits

Guaranteed continuity for sensitive electronics (routers, PCs, light medical equipment).
Greater available power without oversizing the generator or grid connection thanks to PowerAssist.
Optimized battery management that extends service life with intelligent charging algorithms.
Scalability and professional control with Cerbo GX, VictronConnect app, and VRM portal.
Clean installation: inverter and charger integrated in a single robust unit.

Purpose or Applications

Ideal for motorhomes and boats with several simultaneous consumers, off-grid homes with refrigerators, pumps or light tools, telecom/IoT rooms, and as a high-performance residential UPS at 12 V.

Technical Specifications

Power	3000 VA (≈2500 W continuous); peak ≈6000 W
Nominal voltage	12 Vdc
Charger	120 A; Abs ≈14.4 V / Float ≈13.8 V / Storage ≈13.2 V
AC Transfer	16 A; UPS <20 ms
Waveform	Pure sine wave 230 V / 50 Hz
Efficiency	≈94 %
No-load consumption	≈10–15 W (search mode ≈2–3 W)
Communications	VE.Bus; remote on/off; programmable relay
Protections	Overload, short circuit, high/low V, temp., etc.
Protection rating	IP20 (indoor use)
Dimensions / Weight	≈362 × 258 × 218 mm / ≈18 kg
Operating temperature	−40 … +65 °C (derating with temperature)

Compatibilities

Compatible with: Cerbo GX, VE.Bus Smart Dongle, Multi Control Digital Panel, MK3-USB interface, BMV-712/SmartShunt monitors, VictronConnect app, and VRM portal. Recommended accessories: AC/DC protections, contactors, and battery/temperature sensors.

The Victron MultiPlus 12V 3000VA 12/3000/120-16 offers power, reliability, and intelligent energy management for off-grid and marine applications that demand continuous performance and total control.
