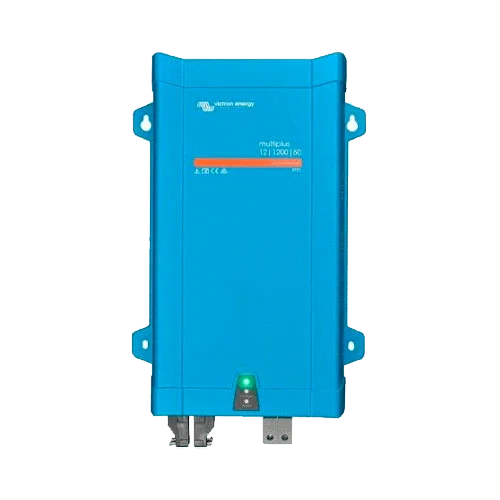

Inverter with Charger Victron MultiPlus 12V 1200VA 12/1200/50-16
Modelo: Multiplus 12/1200/50-16- Sku: VICTINV003
- Vendor: Victron
Specifications
Product Description
The Victron MultiPlus 12V 1200VA 12/1200/50-16 combines a 230 V pure sine wave inverter and a 50 A smart charger with advanced power management functions in a single enclosure. Designed for 12 V installations that require electrical stability and fast battery bank recharging, it ensures continuity thanks to its fast switching and coordination with grid or generator via PowerControl and PowerAssist. Its VE.Bus architecture allows for parallel or three-phase expansion and integration with the Victron ecosystem for remote monitoring and control.
Main Features
- Continuous power 1000 W at 25 °C (1200 VA); peaks up to 2400 W for demanding load startups.
- 12 V battery charger at 50 A with adaptive algorithm (absorption/float/storage) and temperature sensor.
- Fast 16 A transfer switch: prioritizes grid or generator without noticeable interruptions.
- PowerControl and PowerAssist: limits input current and supplies power from the battery during peaks.
- High efficiency (≈93–95 %) and Search Mode with standby consumption ~3 W to save energy.
- VE.Bus for parallel operation (up to 6 units) and three-phase option; programmable relay and DIP switches.
Advantages or Benefits
- Pure sine wave that protects sensitive electronics and appliances.
- Fast and safe recharging that extends the life of the battery bank (lead or lithium).
- Service continuity: switching to grid/generator is performed quickly and stably.
- Scalable and connectable: easy expansion and monitoring from VRM/App VictronConnect.
- Ultra-low standby consumption that optimizes autonomy in off-grid and mobile applications.
Purpose or Applications
Ideal for equipped motorhomes, boats, tiny houses, and 12 V residential solar systems with medium consumption, where stable 230 V, a powerful charger, and the ability to handle demand peaks are required.
Technical Specifications
| Inverter power (25 °C) | 1200 VA (1000 W); peak 2400 W |
| Power at 40 / 65 °C | 900 W / 600 W |
| DC input voltage | 12 V (9.5–17 V) |
| AC output | 230 V ±2 %, 50 Hz (adjustable) |
| Max efficiency | ≈93–95 % |
| No-load consumption | ~10 W; Search Mode ~3 W |
| Charger | 50 A; absorption 14.4 V / float 13.8 V / storage 13.2 V |
| Transfer | 16 A |
| PowerControl / PowerAssist | Yes |
| Communications | VE.Bus, programmable relay, DIP switches (requires RJ45 ASS030065510 splitter in 500/800/1200 VA models) |
| Protection / IP | Multiple protections; IP21 |
| Dimensions / Weight | 406×250×100 mm; 8.2 kg |
| Operating temperature | −40…+65 °C (ventilated) |
| Certifications | EN/IEC 60335, EN 62109-1, ECE R10-5 |
Compatibilities
Compatible with: Cerbo GX/Ekrano GX, VE.Bus Smart Dongle, Digital Multi Control Panel, MK3-USB interface, BMV-712 Smart and SmartShunt monitors, VRM portal, and VictronConnect app.
The Victron MultiPlus 12V 1200VA 12/1200/50-16 stands out for its balance between power, fast charging, and connectivity, offering reliable 230 V and intelligent energy management in medium-sized 12 V systems.
