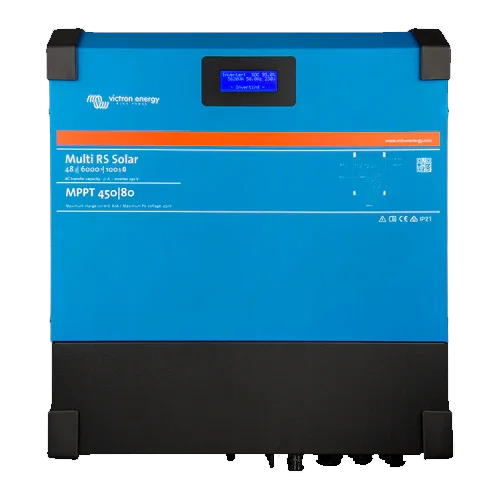

Inverter with Charger and MPPT Victron Multi RS Solar 48V 6000VA 48/6000

Modelo: Multi RS Solar 48/6000

Sku: VICTINV097
Vendor: Victron

€2.340,30 EUR

€1.872,23 EUR

Tax included.

Shipping calculated at checkout.

In stock!

Spend €150,00 to FREE SHIPPING

Victron Multi RS Solar 48V 6000VA 48/6000 Inverter with Charger and MPPT integrates a sine wave inverter, dual MPPT 80–450 V (6 kWp) and 100 A charger. PowerAssist, Bluetooth, VE.Can/VE.Direct, and 9 kW peak for off-grid systems.

Product variants

Quantity

I agree with the Terms and Conditions.

Purchase with Secure Payment

Specifications

Product description

The Victron Multi RS Solar 48V 6000VA 48/6000 Inverter with Charger and MPPT is a high-performance “all-in-one” for 48 V off-grid systems. It combines a 6 kVA pure sine wave inverter, a fully programmable 100 A battery charger, and a dual MPPT high-voltage solar charge controller (80–450 V), all in a compact unit with a front display and smart connectivity. Thanks to PowerControl and PowerAssist, it prioritizes critical loads, prevents generator/grid overload, and supplies extra power from the battery during demand peaks. Its high efficiency, wide operating range, and professional-grade protection electronics make it the ideal solution for off-grid homes, marine applications, or technical cabins requiring reliability and advanced control.

Main features

6 kVA inverter (≈4.8–5.3 kW depending on battery voltage) with 9 kW peak for demanding startups.
Dual MPPT 80–450 V up to 6 kWp (≈3 kW per tracker), ideal for long strings and reduced cable cross-section.
Integrated battery charger of 100 A with configurable absorption and float.
PowerControl/PowerAssist: intelligent energy management with generator/grid and 50 A transfer.
Connectivity: Bluetooth, VE.Can and VE.Direct; programmable relay and remote on/off input.
Front display with battery, inverter, and solar data; analog I/O for external sensors.

Advantages or benefits

True all-in-one: fewer devices, less wiring, and lower installation complexity.
Quality energy: pure sine wave to protect sensitive electronics and appliances.
More PV production: wide MPPT range (80–450 V) allowing higher voltage strings with less loss.
Optimized autonomy: high efficiency and fine control of thresholds, alarms, and charging modes.
Intelligent management: configuration/diagnostics via VictronConnect app or VRM portal through GX device.

Purpose or applications

Designed for off-grid homes with medium/high consumption, vessels with a 48 V battery bank, telecom and technical cabins, mobile workshops or micro-businesses off-grid that require high continuous power, high peaks, and professional photovoltaic utilization with high-voltage strings.

Technical specifications

Model	Multi RS Solar 48/6000
Battery (DC input)	48 V (≈38–62 V; typical start ≥41 V)
AC Output	230 V ± 2 % \| 50/60 Hz
Continuous power	≈4.8–5.3 kW at 25 °C (depending on Vbat); 4.5 kW at 40 °C; 3 kW at 65 °C
Peak power	9 kW (3 s) / 7 kW (≈4 min)
Grid transfer / pass-through	50 A switch \| Maximum pass-through current 50 A
Max. efficiency	≈96.5% (1 kW) \| ≈94% (5 kW)
No-load consumption	≈20 W
PV MPPT	2× (80–450 V; start 120 V) \| Max. PV power 6 kWp (≈3 kW per tracker)
PV current	I_oper max. ≈13 A (limit ≈20 A); I_sc max. ≈16 A
Charger	100 A; Absorption approx. 57.6 V (adjustable); Float approx. 55.2 V (adjustable)
Communications	Bluetooth, VE.Can, VE.Direct; analog I/O; remote on/off
Programmable relay	Yes (alarm / DC undervoltage / generator start)
AC outputs	Main AC-out + AC-out-2 for non-critical loads
Protections	Short circuit, overload, high/low Vbat, overtemperature, 230 V on output, earth leakage (solar)
Degree of protection	IP21
Dimensions / weight	≈425 × 460 × 125 mm / ≈12.3 kg
Parallel / Three-phase	Supports three-phase systems with 1 unit per phase (no parallel on the same phase)

Compatibilities

Integration with Cerbo GX / Color Control GX (VRM monitoring), SmartShunt or BMV-712 Smart, VE.Direct-USB interface, Filax transfer switch, DC Lynx distribution (busbars and fuses), battery temperature/voltage sensors, and remote input compatible with Victron BMS. Use MEGA/MIDI fuses, DC isolator, and DC circuit breaker sized to the system.

The Victron Multi RS Solar 48V 6000VA 48/6000 Inverter with Charger and MPPT provides professional-grade continuous power, dual high-voltage MPPT, and intelligent management to maximize the performance of your 48 V off-grid installation.
