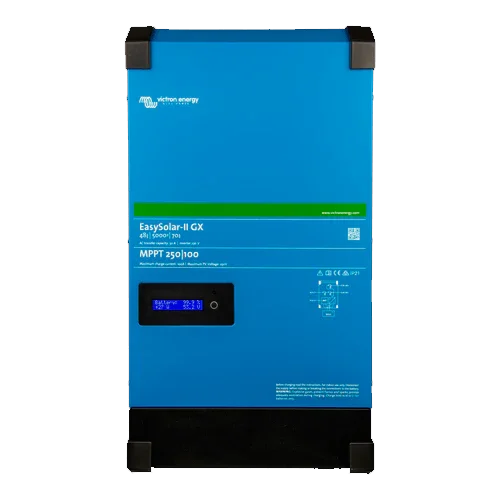

Inverter with Charger and MPPT Victron EasySolar-II GX 48V 5000VA 48/5000/70-50

Modelo: EasySolar-II GX 48/5000/70-50

Sku: VICTINV056
Vendor: Victron

€2.303,96 EUR

€1.843,17 EUR

Tax included.

Shipping calculated at checkout.

In stock!

Spend €150,00 to FREE SHIPPING

Victron EasySolar-II GX 48V 5000VA 48/5000/70-50 integrates inverter/charger and MPPT 250/100 in a single unit. 50 A transfer, 70 A charger, Wi-Fi/VRM and display for self-consumption, backup, and 48 V off-grid systems.

Product variants

Quantity

I agree with the Terms and Conditions.

Purchase with Secure Payment

Specifications

Product Description

The Victron EasySolar-II GX 48V 5000VA 48/5000/70-50 is an “all-in-one” solution that combines a 5 kVA MultiPlus-II inverter/charger, a SmartSolar MPPT 250/100 controller, and a GX interface with display, Wi-Fi, and Ethernet in a single chassis. Designed for demanding 48 V installations, it simplifies system design, reduces wiring and potential failure points, and offers full control via the app and VRM portal. With PowerAssist, it prioritizes self-consumption, prevents tripping when the grid or generator is limited, and maintains critical loads during outages with an ultra-fast 50 A transfer.

Main Features

3-in-1 integration: 5 kVA inverter/charger, MPPT 250/100, and GX device with display and connectivity.
Inverter power: 5000 VA (≈4000 W continuous at 25 °C) with peaks up to 9000 W for difficult starts.
Automatic 50 A switching (“no-break” output) with imperceptible transfer time (<20 ms).
48 V / 70 A battery charger with Absorption, Float, and Storage profiles for lead-acid and lithium (BMS via CAN).
High-performance MPPT: 250 V max Voc, 100 A output, and recommended PV power ≈ 5–6 kWp.
Comprehensive connectivity: VE.Bus, VE.Direct, USB, Ethernet, BMS-Can, and Wi-Fi with free monitoring on VRM.

Advantages or Benefits

Compact and clean installation: less space, less wiring, and fewer possible failures.
Optimized self-consumption and zero feed-in option with clamp/energy meter and ESS mode.
Electrical continuity for sensitive equipment thanks to the “no-break” output and 50 A transfer.
Remote management and diagnostics from mobile or web, with history, alarms, and settings without fees.
Professional scalability: parallel and/or three-phase operation via VE.Bus to grow with demand.

Purpose or Applications

Ideal for homes and businesses with 48 V systems seeking to maximize self-consumption with backup, high-consumption boats and special vehicles, technical cabins, and isolated microgrids with generators, where high peaks, efficient charging, and centralized control in a single device are required.

Technical Specifications

Inverter power	5000 VA / ≈4000 W (25 °C); peak ≈9000 W
Battery voltage	48 V (DC range ≈38–66 V)
AC transfer	50 A automatic; main “no-break” output
Charger	70 A; Abs 57.6 V / Float 55.2 V / Storage 52.8 V
Integrated MPPT	250/100: max Voc 250 V; I_out 100 A; recommended PV power ≈ 5–6 kWp; efficiency up to 98 %
Inverter efficiency	≈96 %; idle consumption ≈18 W (AES ≈12 W / search mode ≈2 W)
AC outputs	Main uninterrupted + auxiliary output (active only with AC input)
Communications	VE.Bus, VE.Direct, USB, Ethernet, BMS-Can, and Wi-Fi; VRM portal
Protection / IP	Full electronic protections; IP21
Dimensions / weight	≈565 × 308 × 237 mm; ≈30–34 kg
Operating temperature	−40 °C to +65 °C (active ventilation)

Compatibilities

Compatible with Digital Multi Control (current limit/PowerAssist), VE.Bus Smart Dongle (Bluetooth), Cerbo GX, BMV-712 or SmartShunt monitors, and single/three-phase energy meters for ESS and zero feed-in. As the MPPT 250/100 is included, no external solar regulator is required.

The Victron EasySolar-II GX 48V 5000VA 48/5000/70-50 concentrates power, control, and monitoring in a single professional device that maximizes self-consumption and ensures continuity in 48 V systems.
