Inverter with Charger and MPPT Victron EasySolar-II GX 48V 3000VA 48/3000/35-32

Modelo: EasySolar-II GX 48/3000/35-32

Sku: VICTINV055
Vendor: Victron

€1.639,36 EUR

€1.311,49 EUR

Tax included.

Shipping calculated at checkout.

In stock!

Spend €150,00 to FREE SHIPPING

Victron EasySolar-II GX 48V 3000VA 48/3000/35-32 is an all-in-one with MPPT 250/70, 35 A charger and 32 A transfer. Includes Wi-Fi/Ethernet, VE.Bus, and display for local and remote control in 48 V systems.

Product variants

Quantity

I agree with the Terms and Conditions.

Purchase with Secure Payment

Specifications

Product Description

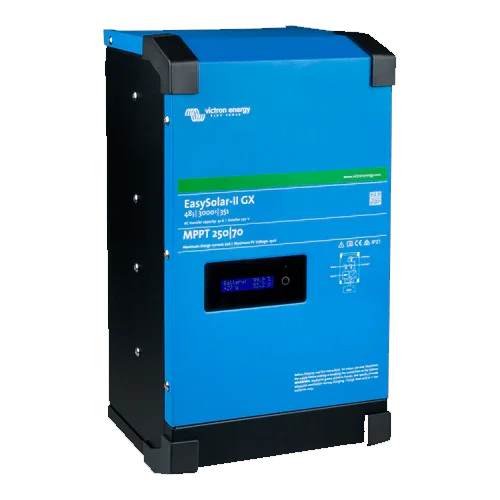

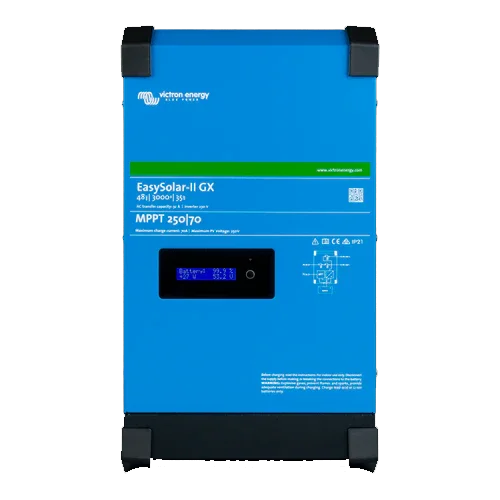

The Victron EasySolar-II GX 48V 3000VA 48/3000/35-32 integrates MultiPlus-II, SmartSolar MPPT 250/70 and GX device with display in a single chassis. With 3000 VA (2400 W continuous), Wi-Fi/Ethernet and VRM, it is the compact solution for self-consumption with battery, backup and off-grid at 48 V. The PowerAssist function prevents tripping when the AC input is limited and the ESS mode allows zero feed-in with the appropriate meter.

Main Features

3-in-1 device: inverter/charger, MPPT 250/70 A and GX gateway with display.
Power: 3000 VA / 2400 W (peak 5500 W) with pure sine wave.
32 A switching without interruption (<20 ms) for priority loads.
48 V / 35 A charger with lead and lithium profiles (BMS via CAN).
MPPT: 250 V max Voc, 70 A output; recommended PV power ≈ 4000 W; controller efficiency up to 98%.
Total connectivity: VE.Bus, VE.Direct, USB, Ethernet, BMS-Can and Wi-Fi with free management in VRM.

Advantages or Benefits

Installation and space savings by integrating inverter, charger and controller in a single unit.
Smart self-consumption with zero feed-in option and priority control.
Electrical continuity for sensitive electronics thanks to the “no-break” output.
Scalability: parallel and three-phase via VE.Bus to increase power.
Remote control from smartphone or web: settings, alarms and history with no fees.

Purpose or Applications

Homes and SMEs with 48 V battery, marine and special vehicles, technical cabins and off-grid systems that require high peaks, efficient charging and centralized management.

Technical Specifications

Inverter power	3000 VA / 2400 W (25 °C); peak 5500 W
Battery voltage	48 V (range 38–66 V)
AC transfer	32 A automatic; “no-break” output
Charger	35 A; Abs 57.6 V / Float 55.2 V / Storage 52.8 V
MPPT	250 V max Voc; 70 A; PV power ≈ 4000 W; efficiency 98%
Inverter efficiency	≈ 95%; idle consumption 11 W (search 2 W)
AC outputs	Main uninterrupted + auxiliary output (active only with AC input)
Communications	BMS-Can, USB, Ethernet, VE.Direct, VE.Bus, Wi-Fi; VRM
Dimensions / weight	≈ 499 × 268 × 237 mm; ≈ 26 kg
Protection / IP	Full electronic protections; IP21

Compatibilities

Compatible with energy sensor/meter for ESS (zero feed-in), Digital Multi Control, VE.Bus Smart Dongle, Cerbo GX, BMV-712 or SmartShunt. The MPPT 250/70 is integrated; no external controller required.

The Victron EasySolar-II GX 48V 3000VA 48/3000/35-32 offers a compact and professional solution that maximizes self-consumption, ensures continuity and simplifies your 48 V system.
