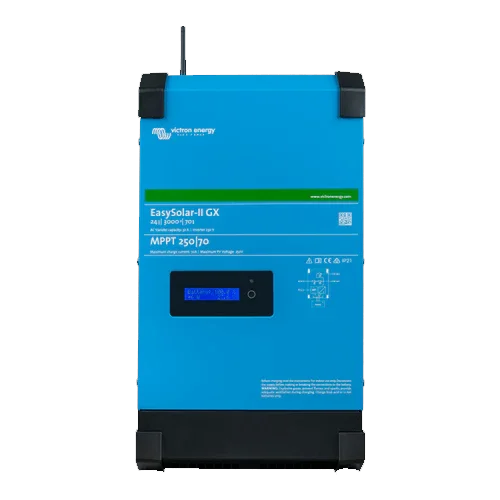

Inverter with Charger and MPPT Victron EasySolar-II GX 24V 3000VA 24/3000/70-32

Modelo: EasySolar-II GX 24/3000/70-32

Sku: VICTINV054
Vendor: Victron

€1.639,36 EUR

€1.311,49 EUR

Tax included.

Shipping calculated at checkout.

In stock!

Spend €150,00 to FREE SHIPPING

Victron EasySolar-II GX 24V 3000VA 24/3000/70-32 integrates inverter/charger and MPPT 250/70 in a single unit. 32 A transfer, 70 A charger, Wi-Fi/VRM and display. Compact solution for self-consumption, backup, and off-grid at 24 V.

Product variants

Quantity

I agree with the Terms and Conditions.

Purchase with Secure Payment

Specifications

Product Description

The Victron EasySolar-II GX 24V 3000VA 24/3000/70-32 combines a MultiPlus-II inverter/charger, a SmartSolar MPPT 250/70 controller, and a GX interface with display, Wi-Fi, and Ethernet in a single unit. This integration simplifies wiring, saves installation time, and offers complete control via app or VRM portal. With 3000 VA (2400 W continuous) and PowerAssist, it stabilizes the grid or generator, prioritizes self-consumption, and maintains critical loads during outages.

Main Features

All-in-one: inverter/charger, MPPT 250/70 A, and GX device with display and connectivity.
Power: 3000 VA / 2400 W (peak 5500 W) with pure sine wave and high efficiency.
Automatic 32 A switching (“no-break” output) for continuity <20 ms on critical loads.
24 V / 70 A charger with Absorption, Float, and Storage stages for lead-acid and lithium (via BMS-Can).
MPPT: 250 V max Voc, 70 A output, recommended PV power ≈ 2000 W, efficiency up to 98%.
Interfaces: BMS-Can, USB, Ethernet, VE.Direct, VE.Bus, and Wi-Fi with free monitoring on VRM.

Advantages or Benefits

Simplified installation with less space, less wiring, and fewer failure points.
Optimized self-consumption and zero feed-in possible using external clamp/meter and ESS.
Electrical continuity for sensitive equipment thanks to ultra-fast transfer.
Advanced remote management: configuration, alarms, and history from app and VRM portal with no fees.
Scalable: parallel and three-phase via VE.Bus to grow with the installation.

Purpose or Applications

Homes and businesses at 24 V with self-consumption and backup, boats and campers, technical or telecom cabins, and off-grid systems where start-up peaks, intelligent management, and remote control are required in a compact format.

Technical Specifications

Inverter power	3000 VA / 2400 W (25 °C); peak 5500 W
Battery voltage	24 V (range 19–33 V)
AC transfer	32 A automatic; “no-break” output
Charger	70 A; Abs 28.8 V / Float 27.6 V / Storage 26.4 V
MPPT	250 V max Voc; 70 A; PV power ≈ 2000 W; efficiency 98%
Inverter efficiency	≈ 94%; idle consumption 13 W (search 3 W)
AC outputs	Main uninterrupted + auxiliary output (active only with AC input)
Communications	BMS-Can, USB, Ethernet, VE.Direct, VE.Bus, Wi-Fi; VRM
Dimensions / weight	≈ 499 × 268 × 237 mm; ≈ 26 kg
Protection / IP	Full electronic protections; IP21

Compatibilities

Compatible with current meter/sensor for zero feed-in, Digital Multi Control, VE.Bus Smart Dongle, Cerbo GX, BMV-712, or SmartShunt. Integrates the solar controller; no external MPPT required.

The Victron EasySolar-II GX 24V 3000VA 24/3000/70-32 concentrates power, management, and connectivity in a compact unit that maximizes self-consumption and ensures continuity at 24 V.
