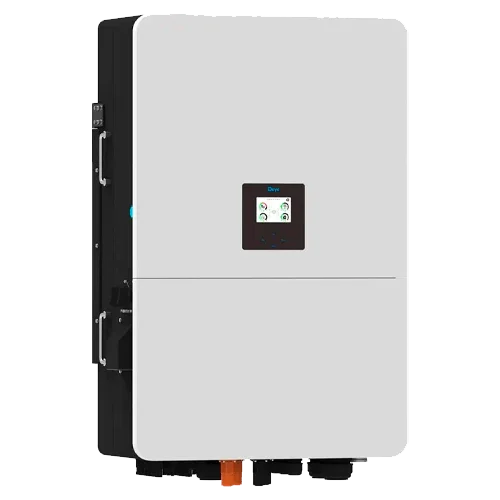

Deye Sun 80kW Three-Phase Hybrid Inverter SG02HP3-EU-EM6

Product Description

The Deye Sun 80kW SG02HP3-EU-BM5 Three-Phase Hybrid Inverter is designed for C&I plants that require high continuous power, advanced management, and maximum flexibility. With 6 MPPT and 12 strings, two high-voltage (HV) battery inputs, and on-grid/off-grid operation with EPS mode, it allows for DC and AC coupling for retrofit, stabilizes the internal grid, and prioritizes self-consumption with time-of-use (TOU) scheduling. Its IP65 enclosure and intelligent cooling ensure reliability in demanding environments.

Main Features

• Nominal AC power: 80 kW three-phase (230/400 V or 220/380 V, 50/60 Hz); 1.5× peak in EPS (10 s).
• PV generation: 6 MPPT with 12 strings (2 per MPPT); 160 kWp DC max.; MPPT range 150–850 V; max. Vdc 1000 V.
• HV battery: 2 independent inputs (160–1000 Vdc) with up to 80 A + 80 A total charge/discharge.
• Reference efficiencies: 97.6% max., 97.0% European; MPPT > 99%.
• 100% unbalanced output per phase (limit 50% of nominal power per phase) and passthrough 200 A.
• RS485/RS232/CAN communications and Wi-Fi/LAN/4G/BT/GPRS dongles for portal/app with telemetry and updates.

Advantages or Benefits

• Superior production and stability: 6 MPPT reduce losses due to shading and mismatch and maintain power over a wide voltage range.
• Programmable savings: 6 TOU periods to charge during off-peak and discharge during peak, maximizing self-consumption and reducing the bill.
• Operational continuity: EPS/UPS mode with 1.5× peak that maintains critical loads during grid failures or generator startup.
• Flexible integration: DC/AC coupling to modernize existing plants, compatibility with diesel generator and multi-brand HV packs via CAN/RS485.
• Scalability: parallel connection of up to 10 units to grow in phases without redesigning the installation.
• Industrial robustness: IP65, automatic thermal derating, Type II SPD on DC and full protection on AC.

Purpose or Applications

Suitable for commercial and industrial self-consumption (warehouses, hotels, sports centers, agribusiness, lodges, refrigeration, pumping, and processes with high peaks). Also ideal for retrofit of photovoltaic plants that need to add HV storage and backup without replacing the existing PV inverter.

Technical Specifications

Compatibilities

This product is compatible with HV batteries (160–1000 Vdc) with BMS via CAN/RS485, three-phase meter/CT for zero-export, Wi-Fi/LAN/4G/BT/GPRS dongles, AC/DC panels with Type II SPD, and diesel generators for charging and support. No internal links to specific models have been provided.

Deye Sun 80kW SG02HP3-EU-BM5 Three-Phase Hybrid Inverter is a professional solution for demanding renewable energy projects. It increases autonomy, optimizes space, and improves the efficiency of your installation.
