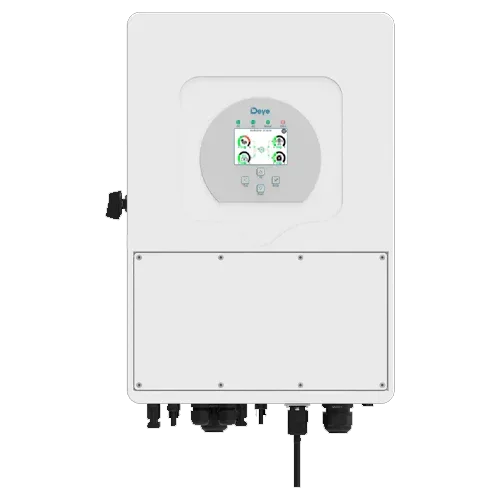

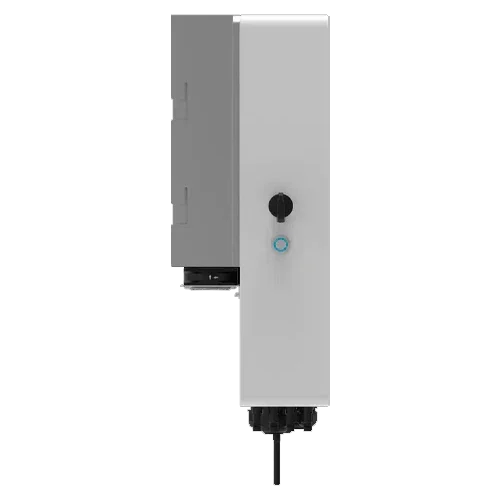

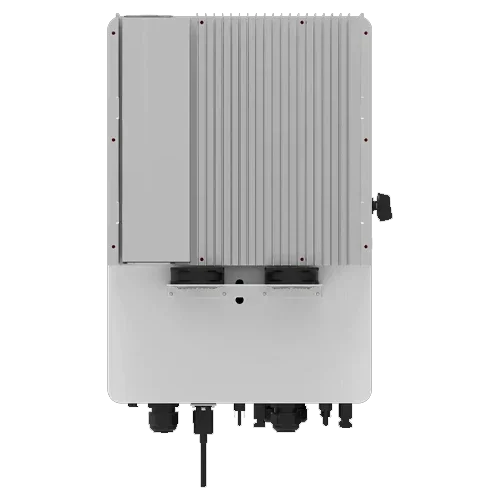

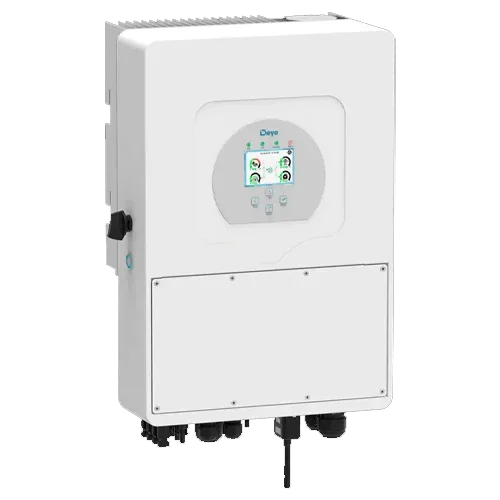

Deye Sun 20kW SG01HP3-EU-AM2 Three-phase Hybrid Inverter

Modelo: SUN-20K SG01HP3-EU-AM2

Sku: DEYEINV010
Vendor: Deye

€3.196,77 EUR

€2.557,42 EUR

Tax included.

Shipping calculated at checkout.

In stock!

Spend €150,00 to FREE SHIPPING

Deye Sun 20kW SG01HP3-EU-AM2 Three-Phase Hybrid Inverter delivers high power with IP65 and 100% unbalanced output. With 2 MPPT and HV batteries (160–700 V), 26 kW PV max. and parallel up to 10, it is ideal for commercial self-consumption with EPS backup.

Product variants

Quantity

I agree with the Terms and Conditions.

Purchase with Secure Payment

Specifications

Product Description

The Deye Sun 20kW SG01HP3-EU-AM2 Three-Phase Hybrid Inverter is the highest power model in the HV series for three-phase 230/400 V applications that require service continuity, high generation and storage capacity, and versatile integration. It incorporates two MPPTs for strings up to 1000 Vdc, compatibility with high-voltage batteries (160–700 V), and on-grid / off-grid operation with EPS/UPS mode. Its output supports 100% phase imbalance (with a limit of 50% of Pn per phase), making it easy to supply mixed three-phase and single-phase loads. The IP65 enclosure, 97.6% efficiency, and the ability to operate in parallel with up to 10 units allow for seamless scaling in businesses, workshops, coworkings, and small industries.

Main Features

Nominal AC power: 20 kW three-phase with 1.5× peak (10 s) in EPS/UPS mode.
Solar architecture: 2 MPPT (1+1), 150–850 V; max DC voltage 1000 V; startup 180 V.
HV battery: 160–700 Vdc; 37 A charge/discharge; auto-adaptation to BMS (CAN/RS485).
Photovoltaic: 26 kW DC max. for greater consumption and load coverage.
100% unbalanced output; passthrough AC 80 A continuous.
Parallel operation up to 10 units; DC/AC coupling for retrofit with existing inverters.

Advantages or Benefits

Production and savings: 6 TOU periods to shift consumption and maximize self-consumption.
Continuity: UPS/EPS that maintains critical loads in the event of grid incidents.
Flexible integration: combines DC coupling of the PV field and AC with previous equipment.
Robustness: IP65, comprehensive protections (SPD, RCMU, anti-islanding) and smart cooling <45 dB.
Scalability: modular parallel growth and zero-export with main meter measurement.

Purpose or Applications

Designed for SMEs, workshops, restaurants, lodges, and high-consumption residential users who require continuous power, backup, and detailed energy control. Excellent for modernizing existing plants through AC coupling, maintaining the previous PV inverter and adding HV storage.

Technical Specifications

AC Power	20 kW nominal · 22 kW max. · EPS peak 1.5× (10 s)
Battery (HV)	160–700 Vdc · 37 A charge/discharge · 1 input · CAN/RS485
MPPT	2 (1+1) · 150–850 V · Voc max. 1000 V · startup 180 V
PV max.	26 kWdc · current per MPPT 32 A + 32 A (Isc 39 A + 39 A)
Grid / Output	3L/N/PE · 220/380 V or 230/400 V · 50/60 Hz · THDi <3% · PF 0.8 cap–0.8 ind
Passthrough AC	80 A continuous (grid → loads)
Protections	IP65 · Anti-islanding · RCMU/RCD · SPD II DC / III AC
Dimensions / Weight	≈408 × 638 × 237 mm · ≈30.5 kg
Warranty	5 years (extendable according to program)

Compatibilities

Compatible with HV batteries (160–700 Vdc) via CAN/RS485, main meter measurement RS485/CT for zero-export, Wi-Fi/LAN/4G/BT dongles, and AC/DC panels with SPD Type II. No specific internal links provided.

Deye Sun 20kW SG01HP3-EU-AM2 Three-Phase Hybrid Inverter is a professional solution for demanding renewable energy projects. It increases autonomy, optimizes space, and improves the efficiency of your installation.
