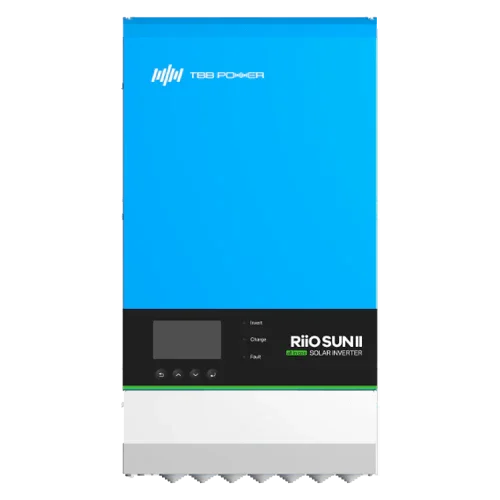

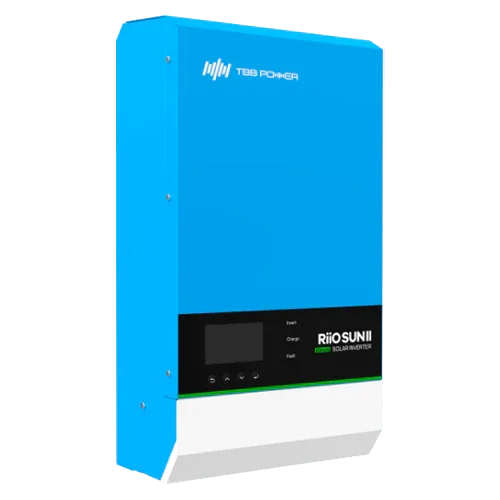

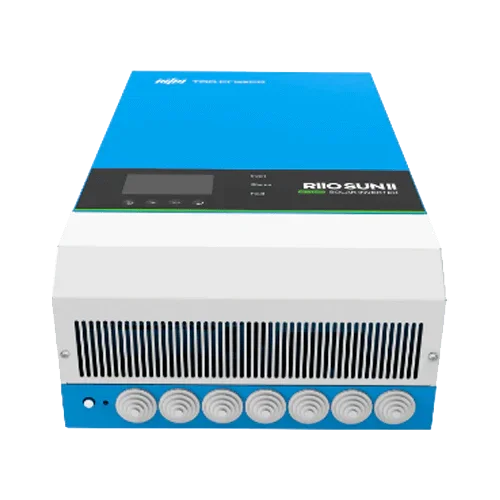

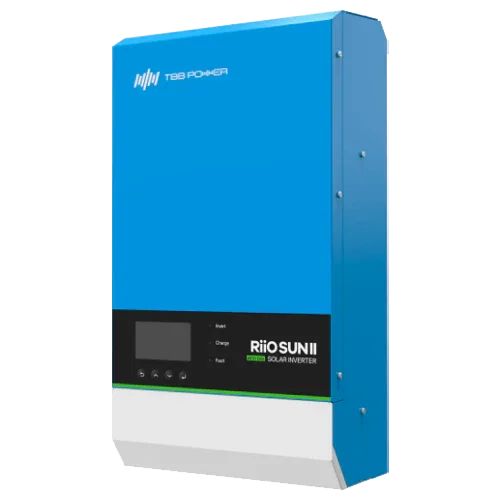

TBB Riio Sun II 5 kW 48V 5KVA-S Inverter Charger MPPT 250V 100A
Modelo: 48V 5KVA-S- Sku: TBBINVE007
- Vendor: TBB
Specifications
Product Description
The TBB Riio Sun II 5 kW 48 V 5KVA-S MPPT 250 V 100 A Inverter Charger integrates a pure sine wave inverter, high-capacity solar charge controller, and powerful AC charger into a single unit. Designed for 48 V battery banks, it allows management of larger photovoltaic arrays with two MPPT 250 V trackers providing up to 100 A of charging current, optimizing performance and reducing wiring losses. The 70 A grid/generator charger accelerates battery recovery in adverse weather or during consumption peaks. With intelligent management, advanced communications, and protections, it is a robust solution for off-grid self-consumption, microgrids, and professional backup.
Main Features
- Continuous power: 5 kW (5 kVA) at 230 V AC, stable pure sine wave.
- 2 independent MPPT: 250 V / 100 A total for series strings and improved PV design.
- Integrated AC charger: 70 A multi-stage, profiles for lead-acid and LiFePO₄.
- Battery system: 48 V, adjustable parameters and BMS compatibility.
- Communications: RS485, dry contact relay, and Solar/Battery/Grid priority control.
- Protections: overload, short circuit, thermal, PV reverse, DC and AC over/undervoltage.
Advantages or Benefits
- Superior performance thanks to two MPPTs that maximize production on roofs with different orientations.
- Lower installation cost: high PV voltage (250 V) allows for smaller cable sections and less loss.
- Assured autonomy with 70 A AC charger for fast recharging from grid or generator.
- Battery lifespan protected by optimized charging curves and lithium BMS compatibility.
- Comprehensive management and monitoring via RS485 for reliable and traceable operation.
Purpose or Applications
High-consumption off-grid homes, businesses and workshops, telecommunications, installations with auxiliary generator, and 48 V backup systems requiring continuous 5 kW, high solar charging current, and reduced recovery times.
Technical Specifications
| Nominal power | 5 kW (5 kVA) 230 V AC |
| Bank voltage | 48 V |
| MPPT trackers | 2 × MPPT |
| PV input (max Voc) | 250 V |
| MPPT current | Up to 100 A total |
| AC charger | 70 A (multi-stage, lead-acid and LiFePO₄) |
| Communication | RS485, dry contact |
| Wave type | Pure sine wave |
| Operating modes | Solar / Battery / Grid-Generator priority |
| Protections | Overload, thermal, PV reverse, over/undervoltage, short circuit |
| Installation | Indoor use, all-in-one chassis |
Compatibilities
Compatible with 48 V AGM, GEL, open lead-acid, and LiFePO₄ banks with BMS. Supports PV strings in series respecting Voc ≤ 250 V and the total regulator current (100 A). Integrates generators, DC/AC protection panels, fuses, disconnectors, and SPD.
The TBB Riio Sun II 5 kW 48 V 5KVA-S Inverter Charger offers power, fast recharging, and professional control for high-performance off-grid projects.
