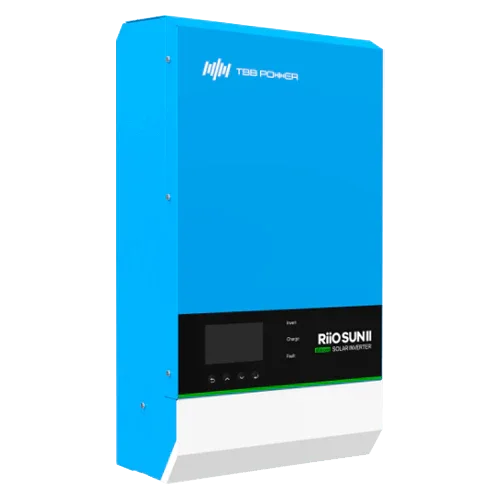

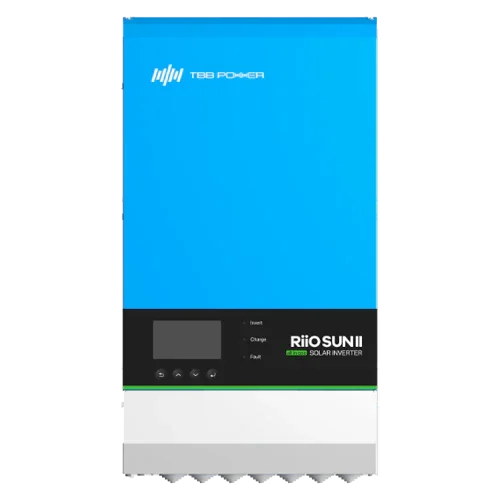

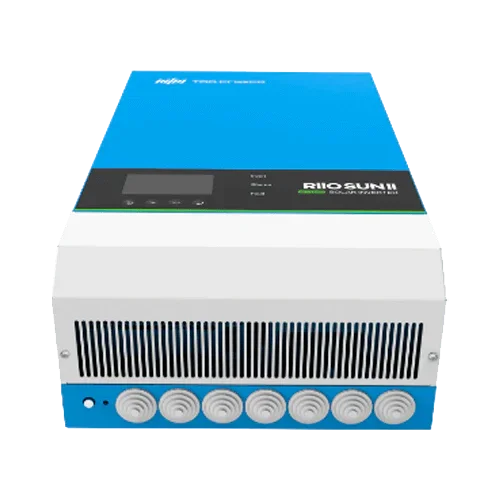

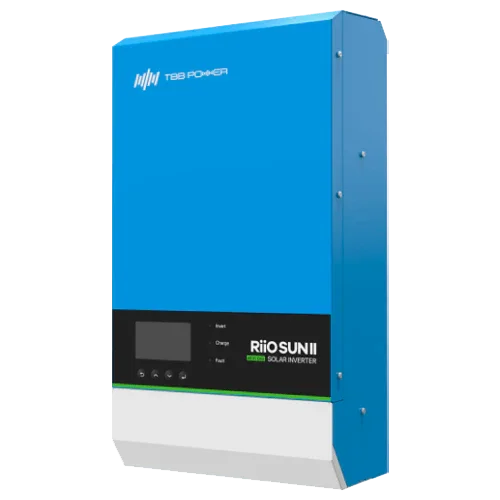

TBB Riio Sun II Inverter Charger 3 kW 48V 3KVA-S MPPT 250V 60A
Modelo: 48V 3KVA-S- Sku: TBBINVE006
- Vendor: TBB
Specifications
Product Description
The Inverter Charger TBB Riio Sun II 3 kW 48 V 3KVA-S MPPT 250 V 60 A combines a 3 kW pure sine wave inverter with a MPPT 250 V/60 A solar charge controller and a grid/generator charger of 35 A. Designed for 48 V battery banks, it provides higher continuous power, excellent utilization of the PV array due to high input voltage, and advanced energy management with professional-grade protections and communications.
Main Features
- Continuous power: 3 kW (3 kVA) at 230 V AC, pure sine wave.
- Integrated PV controller: MPPT 250 V / 60 A suitable for long series strings.
- AC charger: 35 A with programmable profiles for lead-acid and LiFePO₄.
- Battery system: 48 V with BMS compatibility.
- Intelligent control: Solar/Grid/Battery priorities, dry contact relay, and RS485 port.
- Protections: overload, short circuit, thermal, over/undervoltage, and PV polarity.
Advantages or Benefits
- Greater capacity for critical loads with 3 kW continuous.
- MPPT 250 V reduces cable size and losses, maximizing production.
- Stable recharging from grid or generator with 35 A to maintain autonomy.
- Simplified installation by integrating inverter, charger, and controller in a single chassis.
- Battery protection and longer service life thanks to charging profiles and BMS.
Purpose or Applications
Off-grid homes with medium-high consumption, small businesses, workshops, telecommunications, and 48 V backup systems requiring 3 kW continuous and a 60 A MPPT with high input voltage.
Technical Specifications
| Nominal power | 3 kW (3 kVA) 230 V AC |
| Battery voltage | 48 V |
| Photovoltaic controller | MPPT 250 V / 60 A |
| PV input (max Voc) | 250 V |
| AC charger | 35 A (multi-stage, lead and lithium) |
| Communication | RS485 and dry contact relay; integration with BMS |
| Wave type | Pure sine wave |
| Modes | Solar / Battery / Grid-Generator priority |
| Protections | Overload, thermal, PV reverse, over/undervoltage, short circuit |
| Installation | Indoor use, ventilated enclosure, all-in-one format |
Compatibilities
Compatible with 48 V AGM, GEL, open lead-acid, and LiFePO₄ battery banks with BMS. PV array in series respecting Voc ≤ 250 V and the maximum current of the MPPT (60 A). Integrates generators and DC/AC protections panels, fuses, disconnectors, and SPD.
The Inverter Charger TBB Riio Sun II 3 kW 48 V 3KVA-S MPPT 250 V 60 A provides power, control, and efficiency for 48 V off-grid projects with higher demands.
