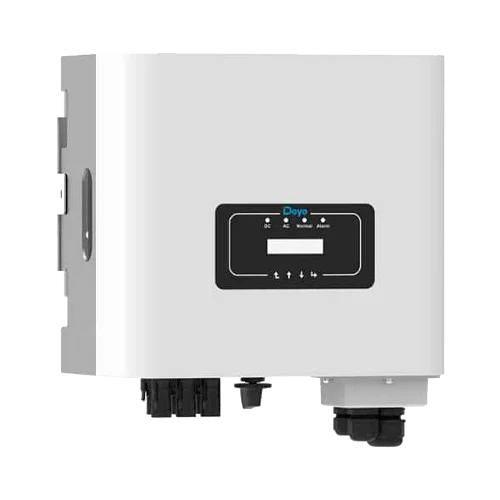

Deye Sun 8kW Single-Phase Inverter G02P1-EU-AM2

Product Description

The Deye SUN-8K G02P1-EU-AM2 Single-Phase Inverter is designed for homes and small commercial applications seeking more power without sacrificing efficiency or control. Its dual MPPT architecture with asymmetric input (1 string on MPPT A and up to 2 parallel strings on MPPT B) makes it easy to design arrays on mixed roofs, while the start at 80 V and the wide MPPT range (70–500 V) allow production from early hours with short strings. With IP65 protection rating and natural cooling, it operates reliably in protected outdoor environments. In addition, it integrates key functions such as zero-export via RS485/CT meter, VSG mode, and optional anti-PID, offering a robust solution for on-grid self-consumption without batteries.

Main Features

• Single-phase power 8 kW AC, 230 V connection (L/N/PE), 50/60 Hz.
• 2 asymmetric MPPTs: MPPT A (1× string, 18 A max.) and MPPT B (up to 2× strings, 26 A max.).
• Maximum efficiency up to 97.7% and European efficiency ≈97.2%.
• Startup at 80 V; MPPT range 70–500 V; max. PV voltage 550 V.
• Integrated protections: anti-islanding, RCMU, SPD Type II on DC and AC, insulation monitoring.
• RS485/RS232 communication and option for Wi-Fi / Bluetooth / 4G / LAN / GPRS via dongle.

Advantages or Benefits

• Higher real production: high performance and fast MPPT tracking maximize useful kWh throughout the year.
• Design flexibility: asymmetric 1+2 input to combine orientations, slopes, or areas with partial shading.
• Regulatory control: export limitation (zero-export) with RS485 meter/CT to meet grid requirements.
• Simple installation: MC4 connectors, compact size, and portal/app with advanced parameters.
• Reliability and outdoor installation: IP65, natural convection (≤35 dB), and automatic thermal derating.
• Electrical safety: SPD Type II on both sides, ground fault monitoring, and DC component.

Purpose or Applications

The Deye SUN-8K G02P1-EU-AM2 Single-Phase Inverter is ideal for homes with high consumption, small businesses, and retrofit projects requiring 8 kW on-grid without batteries. It stands out on roofs with two or three sections, in installations with export restrictions, and in solutions where high power density, low maintenance, and remote monitoring are valued.

Technical Specifications

Compatibilities

This product is compatible with mono and bifacial panels (PERC, TOPCon, HJT, poly) within the indicated electrical range; single-phase RS485/CT meter for zero-export; and Deye communication dongles (Wi-Fi/BT/4G/LAN/GPRS). It is not hybrid: it does not support batteries; for storage, use a Deye hybrid inverter and compatible batteries.

With the Deye SUN-8K G02P1-EU-AM2 Single-Phase Inverter you get power, efficiency, and export control in a compact and robust format, perfect for taking your self-consumption to the next level with simple integration and future-ready design.
