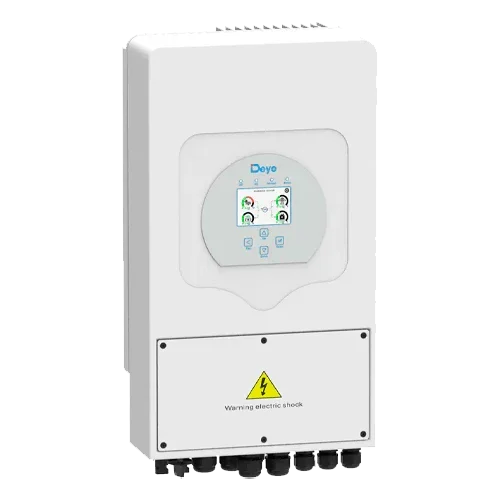

Deye Sun 5kW SG03LP1-EU Single-Phase Hybrid Inverter

Modelo: SUN-5K SG03LP1-EU

Sku: DEYEINV001
Vendor: Deye

€1.467,70 EUR

€1.174,16 EUR

Tax included.

Shipping calculated at checkout.

In stock!

Spend €150,00 to FREE SHIPPING

Deye Sun 5kW SG03LP1-EU Single-Phase Hybrid Inverter offers intelligent management, EPS backup, and advanced communications. With 2 MPPT and IP65 protection, it enables self-consumption, AC retrofit, and charging from the grid or generator with maximum efficiency.

Product variants

Quantity

I agree with the Terms and Conditions.

Purchase with Secure Payment

Specifications

Product Description

The Deye Sun 5kW SG03LP1-EU Single-Phase Hybrid Inverter is a 48 V solution for residential self-consumption and small businesses that combines high efficiency, IP65 protection, and complete energy control. It features two independent MPPTs to optimize your panels, EPS output for backup during outages, programmable charge/discharge scheduling, and communications for remote monitoring. Additionally, it supports AC coupling (retrofit) to make use of existing photovoltaic installations and allows parallel operation with other units for seamless expansion.

Main Features

Nominal AC power: 5 kW single-phase (230 V, 50/60 Hz) with adjustable power factor.
Solar architecture: 2 MPPT (1 string per MPPT), MPPT range 150–425 Vdc, max PV voltage 500 Vdc.
Superior efficiency: up to 97.6% (European 96.5%) and MPPT tracking 99.9%.
48 V battery: window 40–60 V, max charge/discharge 120 A with lithium (CAN/RS485) or AGM/GEL lead-acid.
EPS backup: peak 2× nominal power for 10 s for critical loads.
Scalability: parallel operation of up to 16 units and AC coupling for retrofit.

Advantages or Benefits

Direct savings: prioritizes solar energy and configures 6 time-of-use (TOU) periods to charge during off-peak and discharge during peak hours.
Service continuity: EPS mode maintains lighting, IT, or refrigeration during grid outages.
Flexible installation: IP65 rating and natural cooling; ideal for indoor or protected outdoor use.
True compatibility: works with LiFePO₄/NMC batteries via BMS (CAN/RS485) and with lead-acid banks.
Control and data: portal/app with telemetry, alarms, events, and remote updates.
Grows with you: parallelizable and compatible with meter/CT for zero-export.

Purpose or Applications

Designed for single-phase homes and businesses seeking self-consumption with storage, protection against outages, and optimization of the electricity bill. Perfect for both new installations and for upgrading existing photovoltaic systems through AC coupling.

Technical Specifications

Power	5 kW AC (nominal) · 5.5 kW max.
Nominal voltage	230 Vac single-phase · 48 V battery (40–60 V)
MPPT	2 (1 string per MPPT) · 150–425 Vdc · Max Voc 500 Vdc
PV current	13 A per MPPT (admissible Isc 17 A)
Efficiency	97.6% max. · 96.5% European · MPPT 99.9%
Battery charge/discharge	up to 120 A / 120 A
Backup (EPS)	Peak 2× nominal (10 s)
Communication	RS485/CAN/RS232; optional Wi-Fi/BT/4G/LAN
Protection rating	IP65 · Natural cooling
Dimensions / Weight	330×580×232 mm · ≈ 20.5 kg
Installation	Wall-mounted · Indoor/Protected outdoor

Compatibilities

Compatible with 48 V battery banks with BMS via CAN/RS485 (LiFePO₄/NMC) and with AGM/GEL, single-phase meter or CT clamps for zero-export, and communication dongles (Wi-Fi/BT/4G/LAN). No internal links to specific models have been provided.

Deye Sun 5kW SG03LP1-EU Single-Phase Hybrid Inverter is a professional solution for demanding renewable energy projects. It increases autonomy, optimizes space, and improves the efficiency of your installation.
