90W 6000K 1300 lm 10Ah Solar Street Light JND-7483
Modelo: JND-7483- Sku: JANDILU021
- Vendor: Jandei
Specifications
Product Description

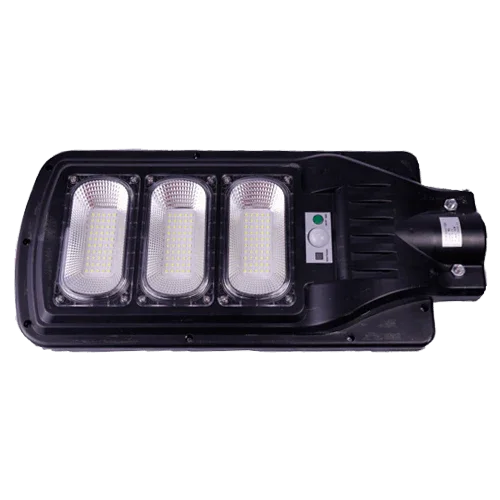

The Solar Street Light 90W 6000K 1300 lm 10Ah JND-7483 is an “all-in-one” luminaire designed to illuminate outdoor areas with maximum efficiency and zero grid consumption. It integrates the solar panel, battery, and the optical assembly of 168 LEDs into a single unit, offering up to 1300 lumens of cool white light at 6000K. Its operation is fully automatic: it charges during the day and, at dusk, turns on intelligently with the help of its motion sensor and remote control, optimizing nighttime autonomy. It is a compact and robust solution for gardens, pathways, entrances, and common areas.
Main Features
- 90 W LED power with 168 high-performance LEDs and an approximate output of 1300 lm.
- Integrated system: panel, battery, and luminaire in a single block for quick installation.

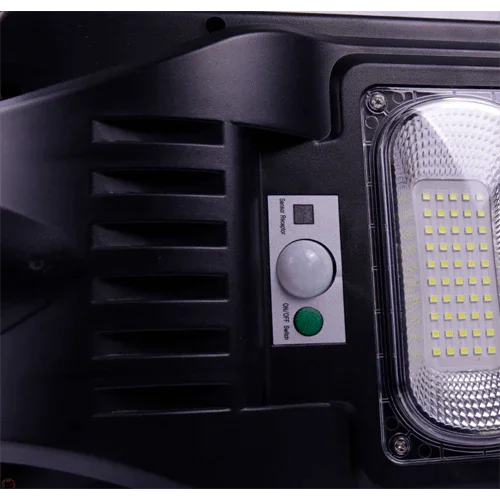

- Motion sensor (radar): reduced power in standby and 100% when presence is detected (≈6–7 m).
- 10,000 mAh lithium-ion battery that ensures stable autonomy night after night.
- IP65 for outdoor use, with a body made of aluminum and weather-resistant plastic.
- Remote control included to select modes and schedules without accessing the equipment.
Advantages or Benefits
- Installation without wiring: reduces installation time and avoids trenches or conduits.
- Total energy savings: operates exclusively on solar energy.
- Intelligent security: increased brightness with movement improves visibility and deters intrusions.
- Low maintenance: simply clean the panel and check the tightness of the screws.
- Compact design: all-in-one format that facilitates mounting on poles, masts, or walls.
Purpose or Applications
Designed to illuminate pedestrian and vehicle access points, patios, pathways, gardens, parking lots, container areas, loading zones, and residential or commercial perimeters. Ideal for locations without electrical connection or where reducing consumption and construction work is desired.
Technical Specifications
| Model | JND-7483 |
| Type | All-in-one solar LED street light |
| LED Power | 90 W |
| Luminous flux | ≈ 1300 lm |
| Light color | Cool white 6000K |
| Number of LEDs | 168 units |

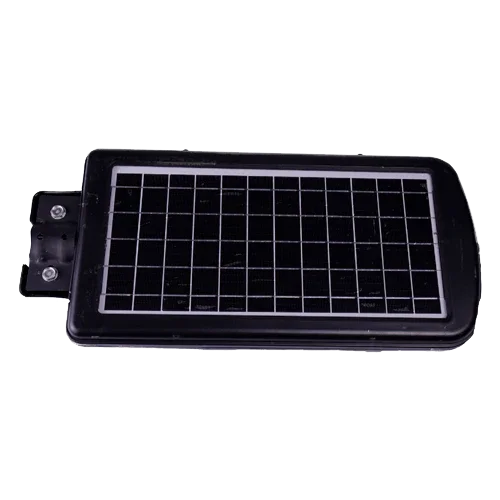

| Solar panel | Polycrystalline 4.5 V / 9 W (integrated) |
| Battery | Lithium-ion 10,000 mAh (internal) |
| Detection | Radar sensor ~6–7 m; dimming in standby and 100% with movement |
| Protection | IP65 – outdoor use |
| Materials | Aluminum + plastic |
| Luminaire dimensions | 500 × 230 × 78 mm |
| Panel dimensions (top) | ≈ 383 × 193 mm |
| Mounting | Mast, pole, or wall (hardware according to support) |
| Control | Remote control included |
| Warranty | 3 years |
Compatibilities
Universal installation on poles, masts, and walls using clamps or screws suitable for each support and substrate. Does not require inverters or grid connection. Can be used with standard mounting accessories and with specific supports for street lights; as a reference, it is compatible with the JND-77861 street light support (accessory not included).
The Solar Street Light 90W 6000K 1300 lm 10Ah JND-7483 provides reliable, safe, and sustainable lighting, simplifying installation and reducing costs through its integrated design and intelligent energy management.
