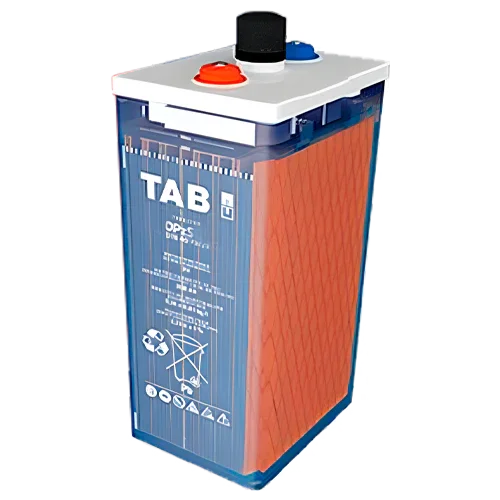

2V Stationary Element TAB 6 OPZS 420 | 632Ah
Modelo: 6 OPZS 420- Sku: TABBATE033
- Vendor: TAB
Specifications
Product Description
The 2V Stationary Element TAB 6 OPZS 420 | 632Ah offers high capacity in a 2 V format with OPzS tubular technology. Designed for continuous float operation, it provides reliability, low self-discharge, and ease of maintenance in solar and critical installations.
Main Features
- Capacity: C100 ≈ 632 Ah; nominal OPzS (C10) ≈ 420 Ah.
- Nominal voltage: 2 V; tubular construction that maximizes cycles and stability.
- Design life: up to 20 years at 20 °C, with long water refill intervals.
- Translucent SAN container with level markings and cap with ceramic filter.
- Safety and standards: IP25; design in accordance with DIN/EN/IEC for stationary batteries.
- Dimensions and weight (wet): 145 × 206 × 536 mm (L×W×H) approx.; 34 kg.
Advantages or Benefits
- Excellent capacity-to-lifetime ratio, ideal for long discharges (C10–C100).
- Lower operating cost due to low water consumption and reduced self-discharge.
- Electrolyte visibility for quick inspections and preventive maintenance.
- Modular compatibility for 12/24/48 V banks with standardized connections.
- Proven reliability in demanding industrial and energy applications.
Purpose or Applications
Recommended for use in off-grid or hybrid photovoltaic systems with large battery banks, telecom stations, data centers with UPS, emergency lighting, industrial control and monitoring, and railway or airport applications.
Technical Specifications
| Technology | Vented lead-acid OPzS, tubular plate |
| Nominal voltage | 2 V |
| Capacity | C100 ≈ 632 Ah | C10 ≈ 420 Ah |
| Self-discharge | ≈2–3 %/month at 20 °C |
| Design life | Up to 20 years (20 °C, float) |
| Temperature range | -20 °C…+55 °C (optimal 10–30 °C) |
| Protection type | IP25 |
| Electrolyte | Sulfuric acid 1.24 ± 0.01 kg/l (20 °C) |
| Container | Translucent SAN; SAN/ABS lid |
| Connection | Sealed sliding pole; M10 hardware |
| Dimensions (L×W×H) | 145 × 206 × 536 mm |
| Weight (wet) | ≈34 kg |
Compatibilities
Compatible with racks and supports for 2 V DIN OPzS elements, flexible insulated copper bridges, other cells in the OPzS series for configuring 24/48 V banks, float rectifiers/chargers, and control and maintenance accessories.
The 2V Stationary Element TAB 6 OPZS 420 | 632Ah stands out for its reliability and long life, making it the safe choice for solar battery banks and industrial backup systems.
