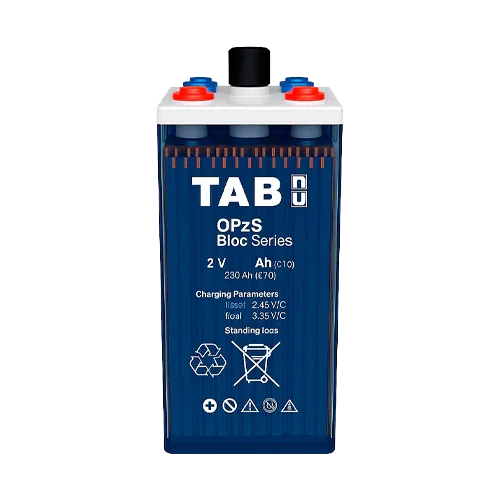

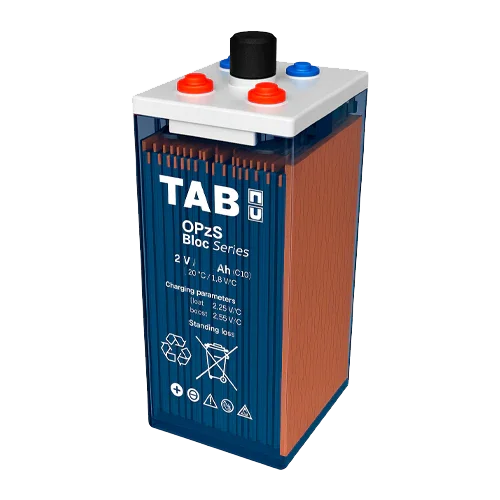

2V Stationary Element TAB 10 OPZS 1000 | 1510Ah
Modelo: 10 OPZS 1000- Sku: TABBATE037
- Vendor: TAB
Specifications
Product Description
The 2V Stationary Element TAB 10 OPZS 1000 | 1510Ah is a very high-capacity OPzS cell for stationary battery banks with extended autonomy. Its tubular positive plate architecture, low self-discharge, and extended maintenance intervals provide a reliable solution for solar installations, critical infrastructure, and industrial processes that cannot be stopped.
Main Features
- Capacity: C100 ≈ 1510 Ah; nominal OPzS capacity (C10) ≈ 1000 Ah.
- Nominal voltage: 2 V; tubular technology with excellent active material retention.
- Design life: up to 20 years at 20 °C in float operation.
- Very low self-discharge (≈2–3 %/month at 20 °C) for high availability.
- Translucent SAN container, level markings, and cap with ceramic filter.
- Dimensions and weight (wet): 234 × 206 × 536 mm (L×W×H) approx.; 60 kg.
Advantages or Benefits
- Very high capacity per cell reduces the total number of elements required.
- Optimized total cost of ownership due to durability and low maintenance.
- Stable voltage in float operation and excellent performance in long discharges.
- Immediate visual inspection of the electrolyte for preventive maintenance.
- Suitable for harsh industrial environments and critical 24/7 loads.
Purpose or Applications
Perfect for large battery banks in off-grid or hybrid photovoltaic installations, data centers/UPS, telecom stations, emergency lighting, and industrial control and signaling systems.
Technical Specifications
| Technology | Vented lead-acid OPzS, tubular plate |
| Nominal voltage | 2 V |
| Capacity | C100 ≈ 1510 Ah | C10 ≈ 1000 Ah |
| Design life | Up to 20 years (20 °C, float operation) |
| Self-discharge | ≈2–3 %/month at 20 °C |
| Temperature range | -20 °C…+55 °C (recommended 10–30 °C) |
| Protection type | IP25 |
| Electrolyte | Sulfuric acid 1.24 ± 0.01 kg/l (20 °C) |
| Container | Translucent SAN; SAN/ABS lid |
| Connection | Sealed sliding pole; M10 hardware |
| Dimensions (L×W×H) | 234 × 206 × 536 mm |
| Weight (wet) | ≈60 kg |
Compatibilities
Compatible with DIN racks for 2 V OPzS cells, insulated flexible copper links, other OPzS cells for 12/24/48 V banks, float rectifiers/chargers, and maintenance and monitoring accessories.
The 2V Stationary Element TAB 10 OPZS 1000 | 1510Ah combines high capacity, long life, and high reliability for the most demanding energy and industrial backup projects.
