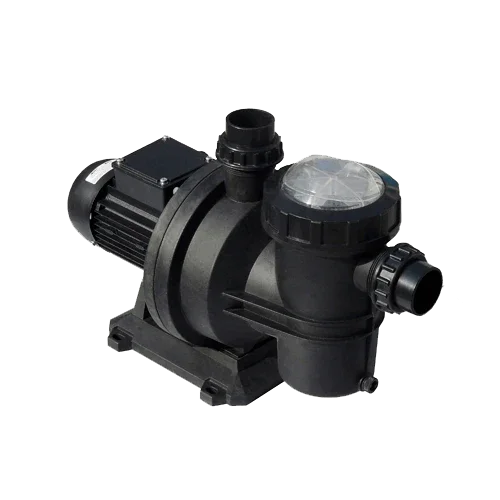

Lorentz PU600 CS-17-1 Solar Water Treatment Plant 18 m³/h 12 m Centrifugal

Product Description

The Lorentz PU600 CS-17-1 Solar Pool Filter is a surface pumping unit (motor + hydraulic head) designed for pool filtration and recirculation in solar systems. It combines a high-performance centrifugal pump with a 0.70 kW brushless motor, premium materials, and an integrated non-return valve to provide stable flow and minimal maintenance. This version does not include a controller, allowing integration into existing systems or combination with the appropriate solar controller according to the available photovoltaic power.

Main Features

• Maximum flow rate: 18 m³/h and maximum head: 12 m, ideal for pool filters and solar recirculation.
• 0.70 kW brushless DC motor, max. motor efficiency up to 92%, and speed range 900–3,300 rpm.
• PE CS-17-1 centrifugal pump head with integrated non-return valve and pump efficiency up to 51%.
• Premium materials: hydraulic body in PP and motor in stainless steel (AL/AISI 304) for high durability.
• Water temperature up to 60 °C and suction/positive inlet head up to 3 m.
• Pump unit weight approx. 8.7 kg (motor 5.2 kg + head 3.5 kg) for easy installation.

Advantages or Benefits

• Robust solution for solar pool filtration with high flow and moderate pressure.
• Lower maintenance thanks to the brushless motor and optimized centrifugal hydraulics.
• Corrosion-resistant materials that increase service life in outdoor environments.
• Integration flexibility: as it does not include a controller, you can choose the most suitable solar controller for your installation and PV array.
• Surface installation with suction up to 3 m: facilitates servicing and reduces downtime.

Purpose or Applications

Suitable for pool filters, water recirculation in solar thermal and photovoltaic systems, ponds, fountains, and light water transfer processes in residences, campsites, hotels, or other facilities where 18 m³/h and up to 12 m head are required.

Technical Specifications

Compatibilities

Requires a compatible solar controller (for example, Lorentz PS2-600, not included). It can be used in photovoltaic pool pumping/filtration and recirculation systems. PV array compatibility is determined by the selected controller (size the generator and protections according to Vmp/Voc and controller input current). It can also be integrated into battery systems via the appropriate controller.

The Lorentz PU600 CS-17-1 Solar Pool Filter offers high flow and professional reliability for solar filtration and recirculation, with high-quality materials and the flexibility to choose the controller that best suits your installation.
