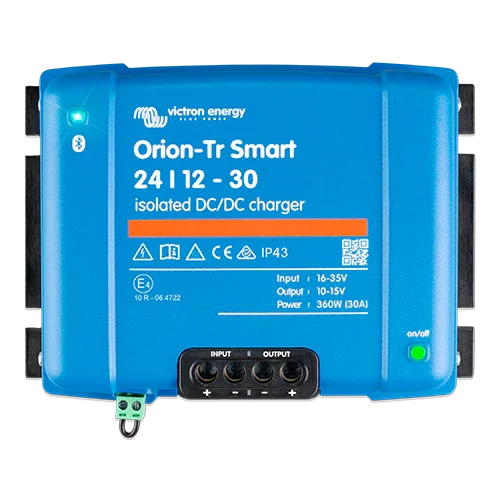

Victron Orion-Tr Smart DC-DC Converter 24/12-30A 360W
Modelo: Orion-Tr Smart 24/12-30A 360W- Sku: VICTCON023
- Vendor: Victron
Specifications
Product Description
The Victron Orion-Tr Smart 24/12-30A 360W is the isolated DC-DC converter for those who need to step down from 24V to 12V with higher charging current. It integrates Bluetooth for configuring voltages and timings from the VictronConnect app, a three-stage charging algorithm, and engine running detection that prevents discharge of the starter battery. Its robust galvanic isolation, IP43-protected electronics, and progressive thermal control ensure continuous reliability in work vehicles, advanced campers, and boats.
Main Features
- 30A continuous and 360W at 40 °C (≈430W at 25 °C) for demanding 12V equipment.
- 200V galvanic isolation between input, output, and case eliminates ground loops and noise.
- Bluetooth Smart with VictronConnect: fine adjustment of voltages, timings, and profiles (lead-acid/lithium).
- Regulated output 10–15V (±0.2V) with ultra-low ripple (~2 mV rms) for sensitive electronics.
- Comprehensive protections: short circuit, overtemperature, input fuse, and controlled thermal reduction.
- Unlimited parallel connection to increase current; screw terminals up to 16 mm².
Advantages or Benefits
- Powers high-demand 12V loads from a 24V system without complex relays or alternator modifications.
- Protects the service battery with intelligent 3-stage charging or fixed voltage for critical equipment.
- Prevents starter battery discharge thanks to engine running detection or remote On/Off control.
- Clean and quick installation: compact format, robust wiring, and app-based configuration without a PC.
- Scalable and fleet-ready: add units in parallel as the project grows.
Purpose or Applications
Perfect for fleets with a main 24V battery bank that require stable 12V for compressor fridges, communications, lighting, and onboard electronics; professional campers, emergency vehicles, and boats with dual 24/12V systems.
Technical Specifications
| Input voltage | 16–35 V DC (typ.) |
| Output voltage | 12.2 V DC nominal (adjustable 10–15 V; ±0.2 V) |
| Output current | 30 A (40 A max. 10 s) |
| Output power | 360 W @40 °C (≈430 W @25 °C) |
| Efficiency | ≈88 % |
| Isolation | Galvanic 200 V (input/output/case) |
| Algorithm | 3 stages (bulk/absorption/float) or fixed voltage |
| Bluetooth | VictronConnect (instant reading) |
| Remote On/Off | H/L input; engine running detection mode |
| Protections | Short circuit, overtemperature, integrated input fuse |
| Protection rating | IP43 electronics / IP22 connections |
| Dimensions | 130 × 186 × 80 mm |
| Weight | ≈1.8 kg |
| Operating temperature | -20 to +55 °C (derating ≈3 %/°C > 40 °C) |
| Certifications | ECE R10-5; EMC and safety |
Compatibilities
Recommended accessories and ecosystem: VictronConnect app, appropriately rated MEGA/ANL fuses, DC distributors, wiring up to 16 mm², remote On/Off relay/switch, and additional protections. Possibility of parallel connection with other Orion-Tr Smart units to increase total current.
The Victron Orion-Tr Smart 24/12-30A 360W combines high current, galvanic isolation, and Bluetooth control for stable and professional 24→12V conversion in any demanding mobile application.
