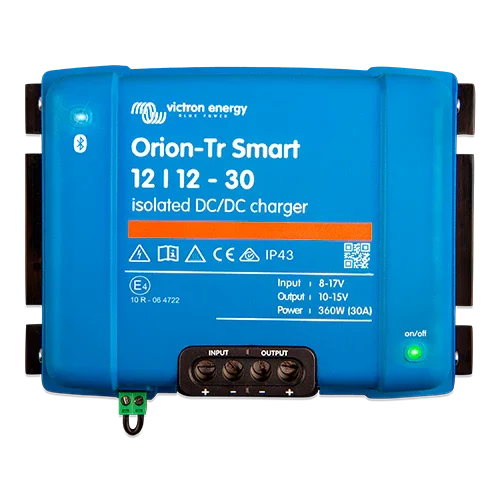

Victron Orion-Tr Smart DC-DC Converter 12/12-30A 360W
Modelo: Orion-Tr Smart 12/12-30A 360W- Sku: VICTCON009
- Vendor: Victron
Specifications
Product Description
The Victron Orion-Tr Smart 12/12-30A 360W is a high-performance isolated DC-DC converter for 12V systems that require higher charging current without compromising safety. It features Bluetooth for configuration and monitoring from your mobile device, a 3-stage adaptive charging algorithm, and engine running detection, protecting the starter battery in vehicles with Euro 5/Euro 6 smart alternators and in boats with long wiring and voltage drops.
Main Features
- 30A continuous and 360W at 40 °C (430W at 25 °C) for demanding 12V loads.
- 200V galvanic isolation between input, output, and casing to prevent ground loops.
- Bluetooth Smart with VictronConnect for voltage and timing adjustments, and instant readings.
- Adjustable output 10–15V with ±0.2V tolerance; noise level of only 2 mV rms.
- Comprehensive protections: short circuit, overtemperature, input fuse, and controlled thermal derating.
- Unlimited parallel connection to increase current; screw terminals up to 16 mm².
Advantages or Benefits
- Optimizes the life of service batteries (AGM, GEL, flooded lead-acid, or lithium) with precise charging and configurable profile.
- Prevents discharge of the starter battery by stopping when the engine is not running.
- Quick implementation without additional equipment: configuration via app and direct wiring.
- Stable performance in hot environments and typical automotive and marine vibrations.
- Simple scalability by adding more Orion-Tr Smart units in parallel as the project grows.
Purpose or Applications
Perfect for campers with multiple loads, emergency vehicles, caravans, boats with onboard electronics, navigation systems and compressor fridges, or to power 12V auxiliary banks from the same 12V system with full control.
Technical Specifications
| Input voltage | 8–17 V DC |
| Nominal output voltage | 12.2 V DC (adjustable 10–15 V; ±0.2 V) |
| Output current | 30 A (40 A max. 10 s) |
| Output power | 430 W @25 °C / 360 W @40 °C |
| Efficiency | ≈87 % |
| Isolation | Galvanic 200 V (input/output/casing) |
| Algorithm | 3 stages (bulk/absorption/float) or fixed voltage |
| Bluetooth | VictronConnect with instant reading |
| Remote On/Off | Dual-phase H/L connector |
| Protections | Short circuit, overtemperature, integrated input fuse |
| IP | IP43 electronics / IP22 connections |
| Dimensions | 130 × 186 × 80 mm |
| Weight | 1.8 kg |
| Temperature | -20 to +55 °C (derating 3 %/°C > 40 °C) |
| Standards | ECE R10-5; EN 60950; EN 61000 |
Compatibilities
Recommended accessories: VictronConnect, remote On/Off switch, MEGA/ANL fuses rated at 30–40 A, DC distributors, relays, and wiring up to 16 mm². Can be paralleled with other Orion-Tr Smart units to increase total available current.
With the Victron Orion-Tr Smart 12/12-30A 360W you get more charging power, galvanic isolation, and Bluetooth control for 12V systems that require continuous professional performance.
