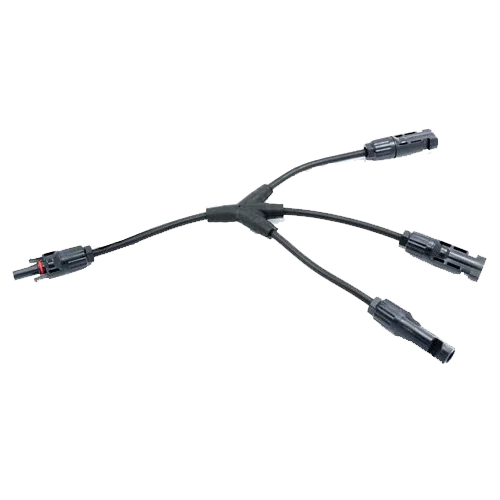

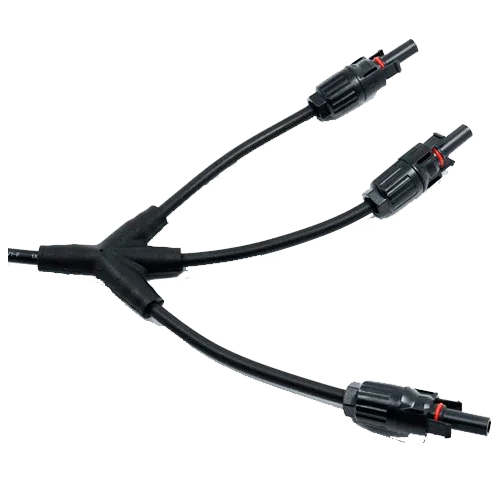

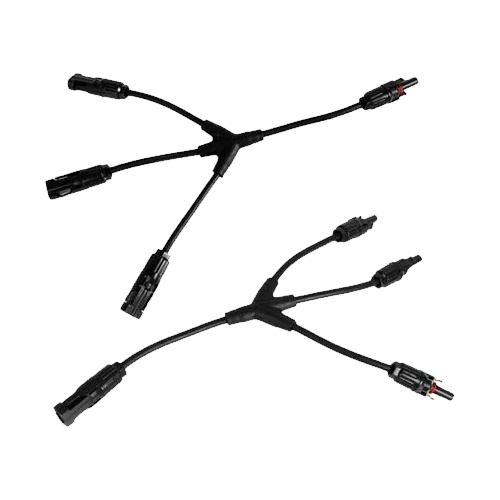

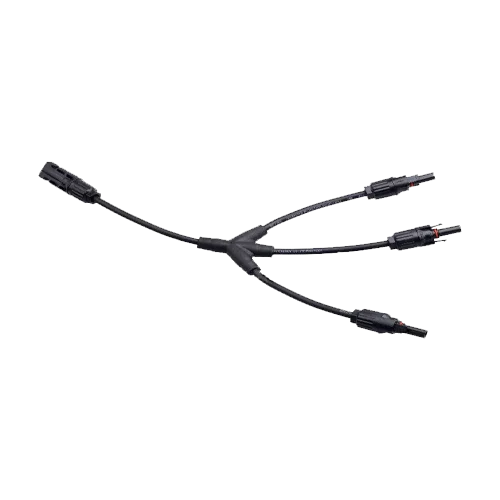

MC4 Solar Connector 3 to 1 WSPVY3 40A 1000V DC
Modelo: WSPVY3- Sku: WORLACC002
- Vendor: WorldSunLight
Specifications
Product Description

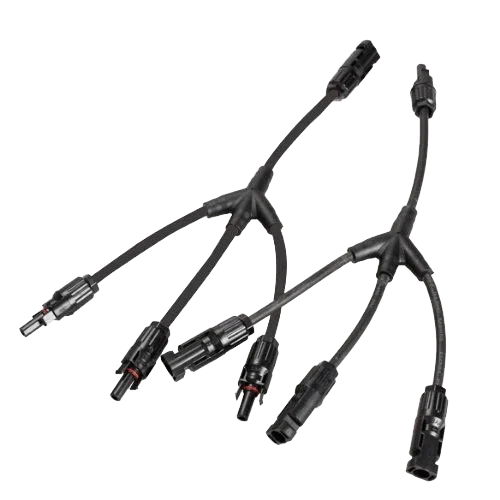

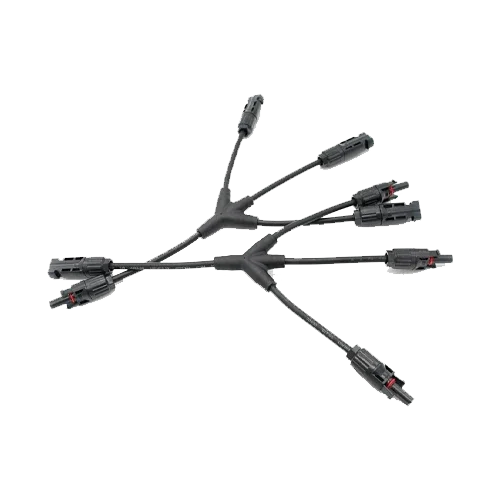

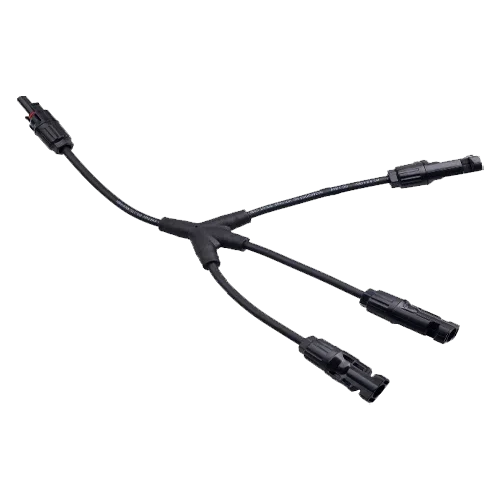

The MC4 Solar Connector 3 to 1 WSPVY3 40A 1000V DC is a “Y” type branch connector that groups three photovoltaic strings into a single MC4 output, optimizing cabling and reducing installation time. Manufactured with high-strength materials and environmental protection rating IP65, it offers electrical safety, low voltage drop, and a stable connection even in demanding environments.
Main Features
- Rated current 40 A for high string currents without overheating.
- Rated voltage 1000 V DC and test voltage 6000 V (50 Hz, 1 min) for maximum dielectric robustness.
- Contact material: tinned copper with contact resistance ≤ 1 mΩ, minimizing losses.
- Housing in UV-resistant PPO/PC, flame class UL94-V0 and double insulation (Class II).
- Protection rating IP2X/IP65: touch safety and protection against dust/water jets.
- Insertion force ≤ 50 N and extraction force ≥ 50 N; secure connection with multiple coupling cycles.
Advantages or Benefits
- Reduces the number of cables reaching the combiner box or inverter, simplifying installation.
- Improves system reliability with tinned copper contacts and low resistance.
- IP65 protection and self-extinguishing materials for safe outdoor operation.
- Design with keyed housings prevents polarity errors and incorrect connections.
- Wide thermal range (-40 °C to +110 °C) for extreme climates without premature degradation.
Purpose or Applications
Ideal for residential, commercial, or industrial photovoltaic installations where it is necessary to combine three identical solar strings into a single input, whether to a DC combiner, protections, or to an MPPT that accepts the sum of currents.
Technical Specifications
| Configuration | MC4 3 to 1 (3 inputs / 1 output) |
| Rated current | 40 A |
| Rated voltage | 1000 V DC |
| Test voltage | 6000 V (50 Hz, 1 min) |
| Category/pollution | CAT II / Grade 2 |
| Contact resistance | ≤ 1 mΩ |
| Contact material | Tinned copper |
| Insulation material | PPO/PC |
| Protection rating | IP2X / IP65 |
| Flame class | UL94-V0 |
| Safety class | II (double insulation) |
| Insertion force | ≤ 50 N |
| Extraction force | ≥ 50 N |
| Temperature range | -40 °C ~ +110 °C |
| Approximate dimensions | Total length approx. 300 mm (branch ~197 mm) |
Compatibilities
Compatible with standard MC4 connectors, 4/6 mm² photovoltaic solar cables, DC combiner boxes, direct current protections (fuses and SPD type II for 1000 V DC), and MC4 inputs of inverters/protection networks that accept the combined current.
The MC4 Solar Connector 3 to 1 WSPVY3 40A 1000V DC is the professional solution to unify three strings with maximum safety, less wiring complexity, and a durable connection in any photovoltaic installation.
