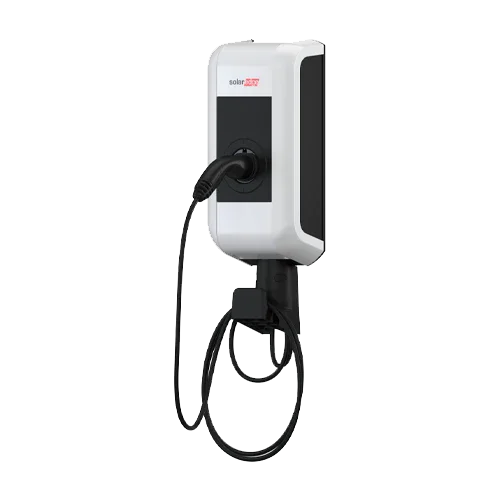

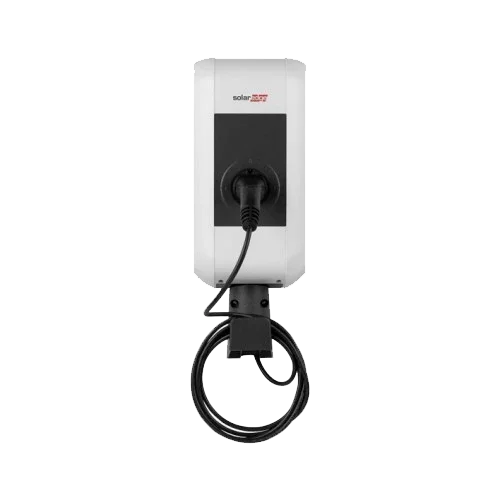

VE Charger SolarEdge 22kW Type 2 6m SE-EVK22C00-01
Modelo: SE-EVK22C00-01- Sku: SOEDCAR001
- Vendor: SolarEdge
Specifications
Product Description
The SolarEdge VE Charger 22kW Type 2 6m SE-EVK22C00-01 is the smart solution for charging your electric vehicle using the same platform that manages your solar energy. With up to 22 kW AC power, single-phase and three-phase compatibility, and native communication with the SolarEdge Home ecosystem, this charger utilizes photovoltaic surplus, schedules charging during off-peak tariff hours, and offers a simple user experience via the mySolarEdge app. Its robust IP54 and IK10 design allows for confident indoor or outdoor installation.
Main Features
- Configurable power: 4.6 / 7.4 / 11 / 22 kW (up to 32 A).
- Type 2 connection with 6 m fixed cable (mode 3, IEC 61851-1).
- Single-phase or three-phase (230/400 V, 50 Hz), TT/TN/IT networks.
- Protection ratings: IP54 (dust/water) and IK10 (impacts).
- Connectivity: Wi-Fi 2.4 GHz and Ethernet; control with mySolarEdge.
- Compatible with OCPP; optional RFID and MID meter.
Advantages or Benefits
- Real savings: prioritizes the use of solar surplus to charge the EV and reduces grid purchases.
- Smart management: schedule times, current limits, and profiles from the app with charging history.
- Advanced safety: continuous residual current detection ≥6 mA (IEC 62955) and CE compliance.
- Flexible installation: top or side supply entry, spring terminals, and standard cable sizes.
- Total integration: a single manufacturer for PV, battery, and EV; unified monitoring and centralized support.
- Outdoor ready: IK10 resistant housing, operation from −25 °C with fanless dissipation.
Purpose or Applications
Ideal for homes with SolarEdge photovoltaic installations that want to charge their vehicle with solar energy and optimize costs. Also suitable for community garages and small businesses needing a robust, manageable charging point compatible with access policies via RFID cards.
Technical Specifications
| AC output power | 4.6 / 7.4 / 11 / 22 kW (configurable) |
| Rated current | 10/13/16/20/25/32 A (single/three-phase) |
| Voltage / Frequency | 3×230/400 V, 50 Hz |
| Charging mode | Mode 3, IEC 61851-1 |
| Connector | Type 2, 6 m fixed cable |
| Protections | RDC-DD ≥6 mA (IEC 62955); overvoltage category III |
| Protection ratings | IP54 / IK10 |
| Self-consumption | 4 W idle / 5 W connected / 7 W charging |
| Communication | Wi-Fi 2.4 GHz, Ethernet (LSA+/RJ45), OCPP compatible |
| Authentication | Optional RFID (MIFARE ISO 14443/15693) |
| MID metering | Optional (class B EN 50470-1/-3) |
| Environment | Indoor/outdoor; RH 5–95% non-condensing |
| Operating temp. | −25…+50 °C @16 A; −25…+40 °C @32 A (no direct sun) |
| Max altitude | 2,000 m a.s.l. |
| Supply entry | Top (surface) / side (coplanar) |
| Power cable section | 16 A: 5×2.5 mm² · 32 A: 5×6 mm² (suggested) |
| Terminals | Spring; rigid/flexible 0.2–16 mm² |
| Dimensions (H×W×D) | 643 mm* / 495 mm** × 240 mm × 142 mm |
| Weight | 7.8 kg (cable version) / 5 kg (base version) |
| Inverter compatibility | SolarEdge inverters enabled for SetApp |
| Warranty | 3 years |
*Height for cable variant; **height for base/socket variant.
Compatibilities
Direct integration with the SolarEdge Home ecosystem, control and monitoring from the mySolarEdge app. Compatible with SolarEdge inverters enabled for SetApp and with SolarEdge energy management solutions. For access control, add the RFID card kit and, if precise billing is required, the optional MID meter.
The SolarEdge VE Charger 22kW Type 2 6m SE-EVK22C00-01 combines power, safety, and smart management so you can charge your vehicle with the most efficient energy: that of your own solar installation.
