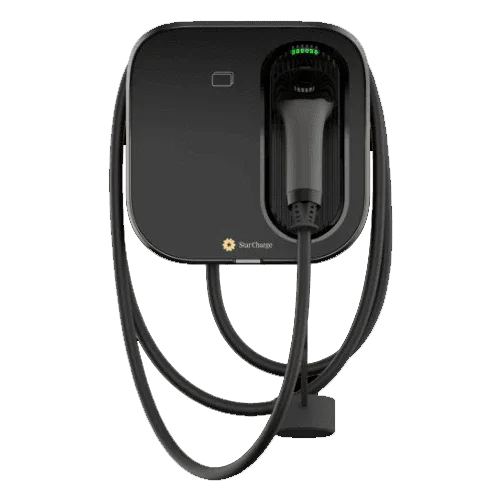

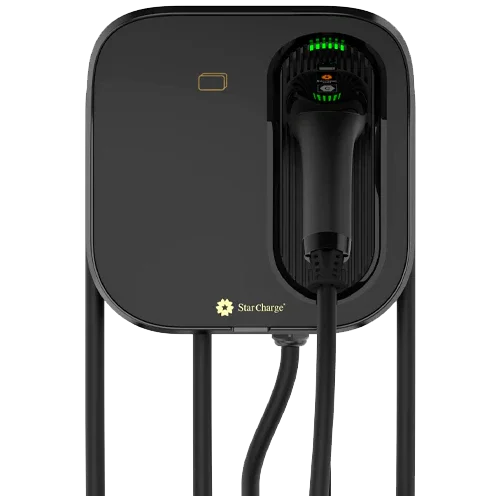

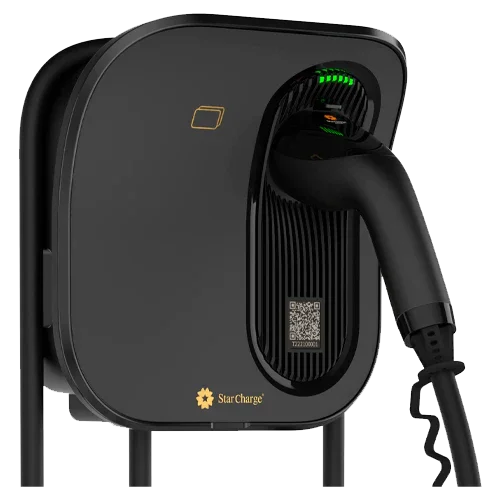

VE Star Charge Artemis Basic Charger 7.4kW Type 2 Cable 5m
Modelo: Artemis Basic 7,4kW Type 2 Cable 5m- Sku: STARCAR001
- Vendor: Star Charge
Specifications
Product Description
The VE Star Charge Artemis Basic 7.4kW Type 2 Cable 5m Charger is a single-phase Mode 3 wallbox designed for safe and efficient home charging. Its housing with IP65 and IK10 protection, the integrated 6 mA DC residual current device, and a comprehensive protection package make it ideal for those seeking professional reliability with simple installation. In addition, it features an RS485 interface for integration with energy management systems and inverters (optional accessories).
Main Features
- Rated power: 7.4 kW (32 A max., single-phase).
- Output connector: Type 2 (box C) with fixed 5 m cable.
- Integrated protection: 6 mA DC residual current device + overcurrent, overvoltage, undervoltage, overtemperature, earth fault, and surge protection.
- Protection rating: IP65 and IK10 impact resistance for demanding outdoor use.
- Communication: RS485 for load management; RFID reader (ISO/IEC 14443 A) and offline card.
- Status LED indicator and optional emergency stop button.
Advantages or Benefits
- Quick wall installation and easy commissioning.
- Maximum safety thanks to industrial-grade electronic and mechanical protections.
- Weatherproof (IP65) and impact-resistant (IK10), perfect for open garages or outdoor use.
- Intelligent load management via RS485 with accessories, optimizing photovoltaic self-consumption.
- Clear user experience with status LED and RFID card authentication.
Purpose or Applications
Ideal for homes and residential parking with single-phase grid, self-consumption projects with inverter, second homes, and small commercial installations that require a reliable, robust charger with a 5 m cable.
Technical Specifications
| Charging mode | Mode 3 (IEC 61851-1) |
| Output power / current | 7.4 kW max., 32 A single-phase |
| Nominal input voltage | 230 V AC ±10 %, 50/60 Hz (L1+N+PE) |
| Earthing system | TN-S, TN-C-S, TT |
| Charging interface | 1 x Type 2 connector (box C) |
| Measurement | Integrated measurement chip, accuracy ±1 % |
| Internal RCD | DC 6 mA |
| Protections | Overcurrent, overvoltage, undervoltage, residual current, overtemperature, earth fault, surges |
| User interface | Status LED; emergency stop button (optional) |
| Authentication | Offline RFID card; ISO/IEC 14443 A reader |
| Communication | RS485; no Bluetooth; no back-end |
| Communication with EV | Control pilot |
| Operating temperature | -30 °C to +50 °C |
| Humidity | 5–95 % non-condensing |
| Altitude | ≤3000 m a.s.l. |
| IP / IK rating | IP65 / IK10 |
| Included cable | 5 m |
| Dimensions (WxHxD) | 280×280×148 mm (post: 100×210×50 mm) |
| Weight | Approx. 4.0 kg (including cable) |
| Installation | Wall mounting (optional post) |
| Standards and certifications | IEC 61851-1, IEC 62955, IEC 61851-21-2, CE-RED, CB, RoHS 2.0, REACH |
Compatibilities
RS485 interface for connection with inverters and storage systems (requires optional manufacturer accessories). Offline RFID card authentication. No internal links included.
VE Star Charge Artemis Basic 7.4kW Type 2 Cable 5m Charger offers professional safety, integration with self-consumption, and convenient, robust charging for your electric vehicle.
