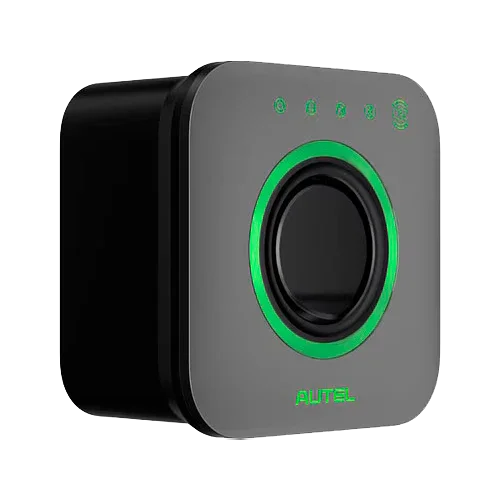

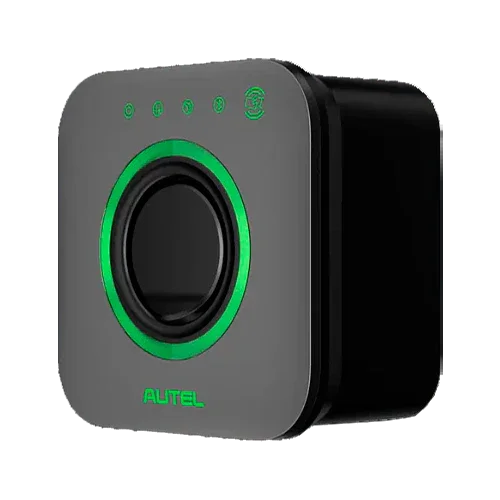

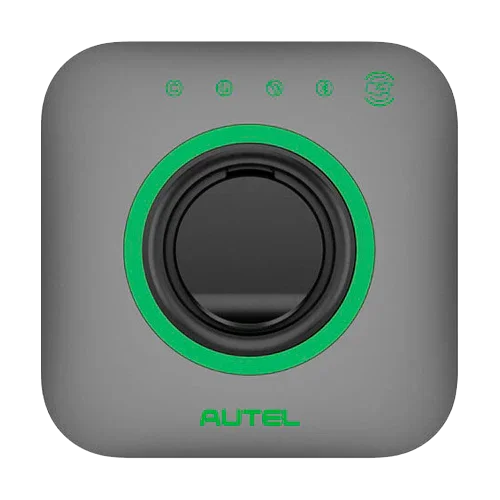

VE Charger Autel MaxiCharger AC Compact 7.4kW/22kW Type 2
Modelo: Maxicharger AC Compact 7.4kW/22kW- Sku: AUTECAR001
- Vendor: Autel
Specifications
Product Description
The VE Charger Autel MaxiCharger AC Compact 7.4kW/22kW Type 2 is an intelligent and ultra-compact wallbox for AC charging, designed for homes, parking lots, and small fleets. It offers management via app, Wi-Fi/Bluetooth connectivity, OCPP 1.6J compatibility, and single-phase 7.4 kW or three-phase 22 kW variants. Its IP54/IK10 construction ensures outdoor resistance and reliable long-term use.
Main Features
- AC power: 7.4 kW (1P, 32 A) or 22 kW (3P, 32 A) with Type 2 connector (socket or tethered cable).
- Integrated connectivity: Bluetooth and Wi-Fi; control via Autel Charge App / Cloud.
- Native OCPP 1.6J for integration with monitoring and payment platforms.
- Built-in safety: RCD type A 30 mA + DC detection 6 mA (RDC-DD).
- Robust enclosure: IP54 against dust/water and IK10 against impacts.
- Very compact wall format: 202 × 202 × 100 mm; wall or pedestal mounting.
Advantages or Benefits
- Simple and clean installation, with internal protections that simplify upstream panel design.
- Smart management: scheduling, current limits, and OTA updates.
- Scalable: load balancing between multiple units and compatibility with OCPP backends.
- Operational efficiency: precise measurement (±2%) and configurable end of charge to protect the battery.
- Total versatility: suitable for residential, semi-public, or business use.
Purpose or Applications
Perfect for home garages, communities, company parking lots, and commercial premises. Supports single-phase 230 V or three-phase 400 V networks and charges any electric or plug-in hybrid vehicle with a Type 2 connector (IEC 62196-2), from private cars to internal fleets with access control via RFID (optional) or app.
Technical Specifications
| Power | 7.4 kW (1P, 32 A) / 22 kW (3P, 32 A) |
| Nominal voltage | 230 V single-phase / 400 V three-phase, 50 Hz |
| Format | Ultra-compact wall-mounted; pedestal option |
| Vehicle connector | Type 2 (socket with/without shutter) or fixed Type 2 cable |
| Communications | Bluetooth, Wi-Fi; OCPP 1.6J |
| Safety | RCD A 30 mA + DC 6 mA (RDC-DD); internal protections |
| Ratings | IP54 / IK10 |
| Dimensions | 202 × 202 × 100 mm |
| Thermal range | −30 °C to +50 °C |
| Mounting | Wall or pedestal; recommended height 0.8–1.2 m |
Compatibilities
Works with all electric and plug-in hybrid vehicles with a Type 2 connector. Integrates OCPP 1.6J for third-party backends and is compatible with load balancing between several MaxiCharger AC Compact units in the same installation.
VE Charger Autel MaxiCharger AC Compact 7.4kW/22kW Type 2 is a professional and scalable solution that provides safety, connectivity, and advanced control, optimizing daily charging in homes, parking lots, and businesses.
