ZIRI 3SCP1-140 1.5HP 160m 3.9m³/h Hybrid Submersible Solar Pump

Product Description

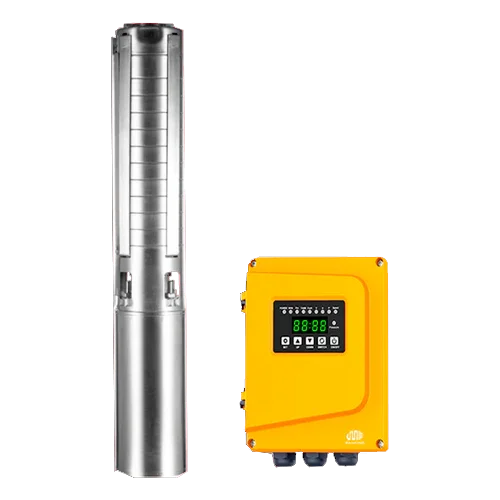

The ZIRI 3SCP1-140 1.5CV Hybrid Submersible Solar Pump combines high performance and versatility for deep wells, elevated tanks, and high-altitude irrigation. Now includes an external controller, prepared to operate continuously with solar energy (DC) and with grid power or generator (AC), ensuring stable service even under variable irradiance conditions.

Main Features

• Hydraulic pressure power: manometric head up to 160 m with a maximum flow rate of 3.9 m³/h.
• Hybrid DC/AC: MPPT window 60–360 V (Voc max. 400 V) and alternating current supply 90–240 V AC.
• External controller included: greater thermal dissipation, easy maintenance, and advanced electronic protection.
• 3” submersible body with 1½” outlet to reduce pressure losses and facilitate connection.
• 1.5 kW (1.5 CV) motor optimized for continuous pumping with high efficiency.
• Approximate weight 9.8 kg and compact design for standard deep well casings.

Advantages or Benefits

• Service continuity: operates with direct solar and, when needed, with grid or generator.
• Greater control and reliability thanks to the included external controller, which improves thermal management and component replacement.
• Energy efficiency: the MPPT maximizes photovoltaic production and reduces operating costs.
• Flexible installation: supports various string configurations always within the indicated voltage range.
• High head for hillside homes, elevated tanks, sprinkler or drip irrigation at high elevations.

Purpose or Applications

Ideal for supply in deep wells, filling elevated tanks, medium/high-pressure agricultural irrigation, and water systems in properties or facilities without grid connection. Its hybrid mode allows backup with generator or grid when solar production is insufficient.

Technical Specifications

Compatibilities

Direct compatibility: ZIRI external controller included (DC/AC mode). Compatible accessories: submersible cable and cable gland for 3”, 1½” check valve, level probe, type II DC protections, AC circuit breaker, IP65 waterproof panel, solar cable, and structure for panels. Recommendation: size the PV generator with a minimum indicative power ≥ 800 W according to required head/flow and always within the MPPT range.

The ZIRI 3SCP1-140 1.5CV Hybrid Submersible Solar Pump stands out for its high useful head, hybrid operation, and included external controller, offering a robust and efficient solution for demanding pumping projects.
