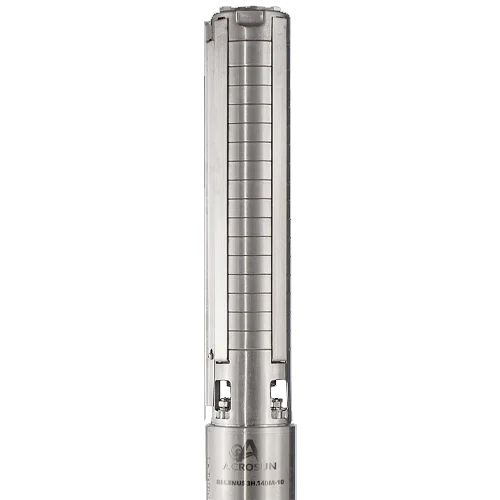

Acrosun Submersible Solar Pump Belenus 3H 140M-10

Product Description

The Acrosun Belenus 3H 140M-10 Submersible Solar Pump is a centrifugal pump for 4” wells designed to achieve high manometric heights with contained power consumption. With a maximum electrical power P1 of 3 kW (3 HP), it reaches up to 140 m in height and a flow rate of 9.96 m³/h, providing sufficient pressure for deep wells, elevated tanks, and demanding irrigation. Its hybrid architecture allows it to operate directly with photovoltaic panels in direct current and, when necessary, with alternating current supply from the grid or a generator. The AISI 304 stainless steel body and IP68 protection rating ensure reliability in continuous submerged service.

Main Features

• High hydraulic performance: up to 140 m head and 9.96 m³/h flow rate for deep wells.
• Hybrid operation: photovoltaic range of 60–380 Vdc and AC backup from 90–240 Vac.
• Power and efficiency: max. P1 3 kW (3 HP) with a nominal speed of 3,600 rpm.
• Robust construction: pump and motor in AISI 304 stainless steel with IP68 protection rating.
• Practical installation: standard threaded outlet (1.5”) and 3-wire cabling without defined polarity.
• Integrated protections: StopFlow system that helps preserve the hydraulics and the motor.

Advantages or Benefits

• Assured pressure in deep wells and long lines thanks to its high manometric head.
• Energy savings by utilizing solar energy and reduced dependence on the electrical grid.
• Operational continuity with AC backup on cloudy days or during demand peaks.
• Long service life due to stainless materials and IP68, reducing downtime and maintenance.
• Stable working curve for sprinkler irrigation, micro-sprinkling, or elevated tanks.

Purpose or Applications

Recommended for pumping from 4” or larger wells in agricultural estates, livestock operations, and isolated homes. Ideal for filling elevated tanks, supplying pressurized irrigation networks, long-distance transfers, and systems requiring high water column with optimized consumption.

Technical Specifications

Compatibilities

Compatible with the Acrosun UControl controller for automated filling, additional protection, and irrigation control (optional accessory, not included). Supports photovoltaic arrays within the 60–380 Vdc range and backup with generator or single-phase grid 90–240 Vac. Standard 1.5” hydraulic connection for common valves, pipes, and fittings.

The Acrosun Belenus 3H 140M-10 Submersible Solar Pump combines high pressure, robustness, and hybrid integration to ensure reliable water supply in demanding solar pumping and deep well projects.
