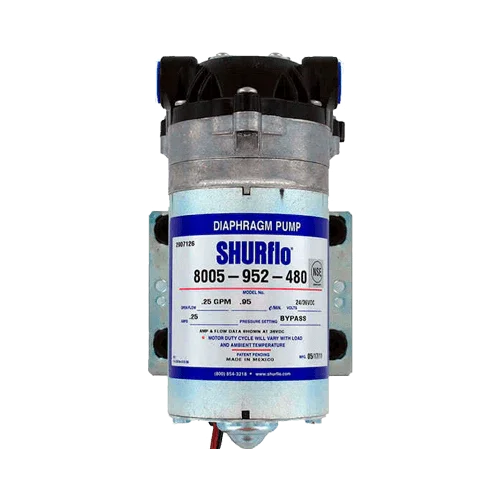

Shurflo Pressure Pump 24/36V 1.37 l/min 90 PSI 8005-952-480
Modelo: 8005-952-480- Sku: SHURBOM016
- Vendor: Shurflo
Specifications
Product Description
The Shurflo Pressure Pump 24/36V 1.37 l/min 90 PSI 8005-952-480 is a 3-chamber diaphragm pump designed as a booster for reverse osmosis (R.O.) systems and other technical applications where it is necessary to increase pressure with a controlled flow rate and external control. It operates at 24/36 VDC, does not include an internal pressure switch, and offers an 80–110 PSI bypass that protects the system in case of closures or restrictions in the line. Its positive displacement architecture ensures a stable flow, and its construction with a Nylon body, EPDM valves, and Santoprene diaphragm provides excellent chemical resistance and long service life in continuous operation.
Main Features
- Versatile power supply 24/36 VDC with permanent magnet motor (P/N 11-147-13).
- No pressure switch: controlled by external pressure switches, low/high pressure switches, or by the R.O. system electronics.
- Internal bypass 80–110 PSI (max.) to limit overpressure in the line.
- Nominal flow rate 1.37 l/min, perfect for small/medium size R.O. membranes.
- Hydraulic ports 3/8"-18 NPT female for direct connection to hose or pipe.
- Materials in contact: Nylon (body), EPDM (valves), and Santoprene (diaphragm).
Advantages or Benefits
- Professional integration in R.O. systems: as it does not have a pressure switch, it is controlled by the sensors/solenoids of the equipment.
- Protection against pressure spikes through bypass, reducing risks for membranes and filter housings.
- Continuous operation within the thermal curve, ideal for long water production cycles.
- High chemical compatibility with treated water and typical filtration components.
- Easy maintenance with availability of kits and spare parts from the 8005 series.
Purpose or Applications
Mainly as a reverse osmosis booster pump (domestic, marine, laboratory, vending) and as a pressure boosting pump in filtration or instrumentation where control is managed by the system's electronics/pressure switches. Also useful in small off-grid processes at 24/36 V that require stable pressure with a very limited flow rate.

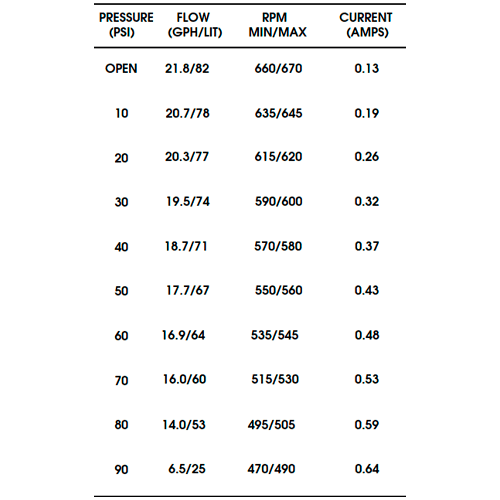

Technical Specifications
| Model | Shurflo 8005-952-480 |
| Nominal voltage | 24/36 VDC |
| Flow rate | 1.37 l/min (typical) |
| Pressure | Up to 90 PSI · Bypass 80–110 PSI (max.) |
| Pressure switch | Not included (external control) |
| Type | 3-chamber diaphragm, positive displacement |
| Ports | 3/8"-18 NPT female |
| Materials in contact | Nylon (body), EPDM (valves), Santoprene (diaphragm) |
| Duty cycle | Continuous (depending on ambient temperature) |
| Liquid temperature | up to 82 °C |
| Approx. weight | ≈ 2.2 kg |
| Approvals | NSF (drinking water) |
Compatibilities
Recommended with a suitable pre-filter, low/high pressure valve, inlet solenoid valve, and R.O. unit control. If used outside of R.O., install external pressure switches/relays and a check valve as per the diagram. Check fluid compatibility with EPDM/Santoprene.
The Shurflo Pressure Pump 24/36V 1.37 l/min 90 PSI 8005-952-480 offers clean integration, bypass protection, and reliability in continuous operation, making it the ideal option for boosters in reverse osmosis and demanding filtration.
