Shurflo Pressure Pump 12V 10.8 l/min 40 PSI 2088-443-144
Modelo: 2088-443-144- Sku: SHURBOM002
- Vendor: Shurflo
Specifications
Product Description

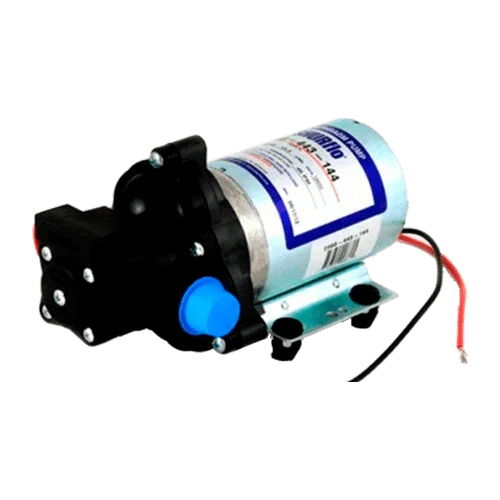

The Shurflo Pressure Pump 12V 10.8 l/min 40 PSI 2088-443-144 is a 3-chamber diaphragm pump designed to supply potable water with stable pressure in recreational vehicles, boats, and mobile systems. It integrates a pressure switch, is self-priming, and offers a generous flow rate with low consumption at 12 V, maintaining quiet and reliable operation.
Main Features
- Operating voltage: 12 VDC with permanent magnet motor and thermal protection.
- Pressure: 40 PSI cut-off with adjustable pressure switch 30–50 PSI (reset 25 ± 5 PSI).
- Flow rate: 10.8 l/min at open discharge; ≈ 8.5 l/min at 40 PSI for taps and showers.
- Self-priming: up to 2.7 m (≈ 9 ft) vertically; max. inlet pressure 2.1 bar (30 PSI).
- Connections: 1/2"-14 parallel male thread, compatible with Shurflo swivel fittings.
- Materials suitable for potable water: body in PP and diaphragm/valves in Santoprene; integrated check valve.
Advantages or Benefits
- Water on demand: the pressure switch maintains constant pressure and reduces unnecessary cycles, extending service life.
- Easy installation: standard 1/2" connections, base with silent blocks, and compact size for tight spaces.
- Quiet and stable operation, ideal for mobile residential and marine use.
- Protection and safety: motor with thermal protector and positive displacement design that prevents reverse siphoning.
- Low maintenance cost: wide availability of fittings, filters, and service kits for the 2088 series.
Purpose or Applications
Especially suitable for caravans/motorhomes, marine (fresh water on board), camper vans, food trucks, and site cabins. It can also be used as a basic pressure pump in off-grid systems with a tank and small internal tap network, as well as for light irrigation or water transfer within pressure and temperature limits.

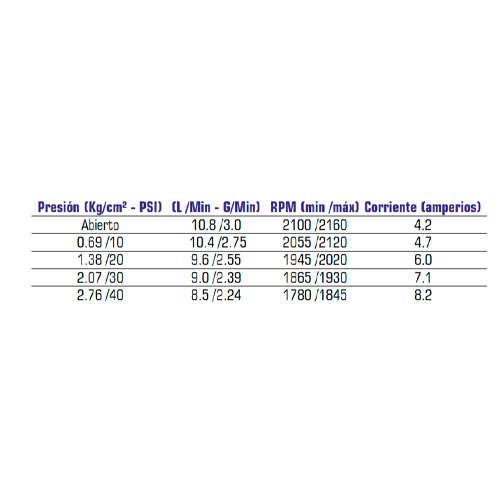

Technical Specifications
| Model | Shurflo 2088-443-144 |
| Nominal voltage | 12 VDC |
| Flow rate | 10.8 l/min (open) · ≈ 8.5 l/min at 40 PSI |
| Cut-off pressure | 40 PSI (adjustable 30–50 PSI; reset 25 ± 5 PSI) |
| Pump type | 3-chamber diaphragm, positive displacement |
| Self-priming | up to 2.7 m vertical |
| Max. inlet pressure | 2.1 bar (30 PSI) |
| Liquid temperature | up to 54 °C |
| Connections | 1/2"-14 parallel male thread |
| Materials in contact | PP; diaphragm and valves in Santoprene |
| Check valve | Integrated (1-way) |
| Duty cycle | Intermittent |
| Typical consumption | ≈ 4–10 A depending on pressure/flow |
| Approx. dimensions | 218 × 127 × 113 mm |
| Weight | ≈ 2.18 kg |
| Certifications | NSF/UL/CSA/IAPMO (potable water) |
Compatibilities
It is recommended to install with a 50-mesh filter/strainer on suction to protect valves and diaphragm, Shurflo 1/2" swivel fittings (barb or NPT), and, if you wish to reduce rapid cycling, a Shurflo accumulator. Compatible with 3/8"–1/2" flexible hose and low-profile pressurized tanks.
The Shurflo Pressure Pump 12V 10.8 l/min 40 PSI 2088-443-144 combines stable pressure, durability, and safe materials for potable water, offering a compact and professional solution for mobile and marine installations seeking long-term reliability.
