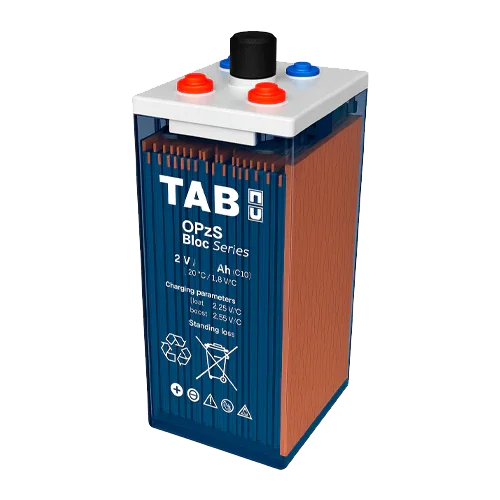

24V Stationary Battery TAB 12 OPZS 1500 | 2260Ah
Modelo: 12 OPZS 1500- Sku: TABBATE061
- Vendor: TAB
Specifications
Product Description

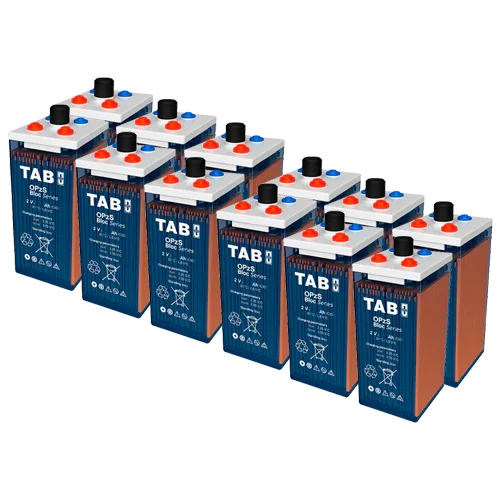

The 24V Stationary Battery TAB 12 OPZS 1500 | 2260Ah is a very high-capacity bank configured with twelve TAB 12 OPZS 1500 2 V cells connected in series. This OPzS architecture, based on tubular positive plates, offers great voltage stability in float mode, very low self-discharge, and an extended design life, making it a reference solution for large photovoltaic installations, industrial UPS, and telecommunications. The set is supplied with flexible connectors and connection hardware, allowing for quick assembly with minimal contact resistance.
Main Features
- Bank capacity: C100 ≈ 2260 Ah (C10 ≈ 1500 Ah at 24 V).

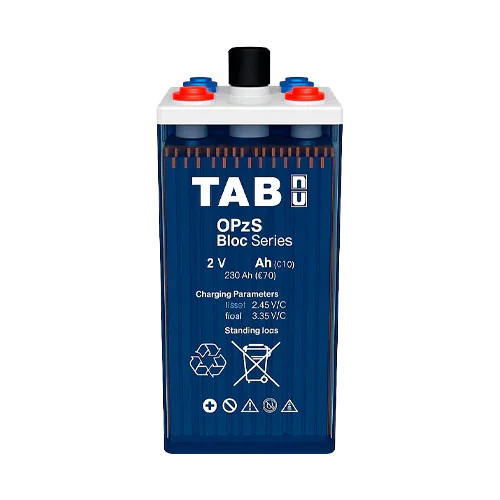

- Composition: 12× TAB 12 OPZS 1500 cells (2 V) with OPzS tubular plate.
- Design life: ≈20 years at 20 °C in float mode; self-discharge ≈2–3 %/month.
- Translucent SAN containers with level markings and caps with ceramic filter.
- Reduced maintenance: long water refill intervals and easy visual inspection.
- Dimensions and weight per cell: 277 × 206 × 536 mm; ≈74 kg (wet).
Advantages or Benefits
- Maximum autonomy per string: reduces the number of parallel banks and simplifies wiring and protections.
- 24/7 reliability thanks to float stability and the mechanical robustness of the tubular plate.
- Optimized total cost due to its long design life, low water consumption, and spaced maintenance.
- Scalability of the 2 V format: possibility to replace individual cells and expand capacity in parallel.
- Performance in long discharges (C10–C120), ideal for photovoltaic self-consumption and extended backup.
Purpose or Applications
Designed for large 24 V battery banks in off-grid or hybrid photovoltaic systems, data centers and hospitals with high-autonomy UPS, telecommunications base stations, emergency lighting, and industrial, railway, and airport control and signaling systems.
Technical Specifications
| Technology | Vented lead-acid OPzS (tubular positive plate) |
| Bank voltage | 24 V (12×2 V in series) |
| Capacity | C100 ≈ 2260 Ah | C10 ≈ 1500 Ah |
| Design life | ≈20 years (20 °C, float) |
| Self-discharge | ≈2–3 %/month at 20 °C |
| Temperature range | −20 °C…+55 °C (optimal 10–30 °C) |
| Protection (cell) | IP25 |
| Electrolyte | H₂SO₄ 1.24 ± 0.01 kg/l (20 °C) |
| Cell container | Translucent SAN; SAN/ABS lid |
| Connections | Sealed sliding pole; M10 hardware |
| Dimensions per cell (L×W×H) | 277 × 206 × 536 mm |
| Weight per cell | ≈74 kg |
| Bank weight | ≈888 kg (12 cells, without rack) |
| Includes | Intercell connectors and connection screws |
Compatibilities
Compatible with DIN racks/stands for OPzS 2 V, additional insulated copper connectors, float rectifiers/chargers, temperature sensors, maintenance accessories (hydrometer, level indicators), and monitoring systems. Can be paralleled with identical banks to increase capacity while maintaining 24 V.
The 24V Stationary Battery TAB 12 OPZS 1500 | 2260Ah is the highest capacity option in the series for 24 V, combining industrial reliability, reduced maintenance, and outstanding performance in solar applications and critical infrastructures.
