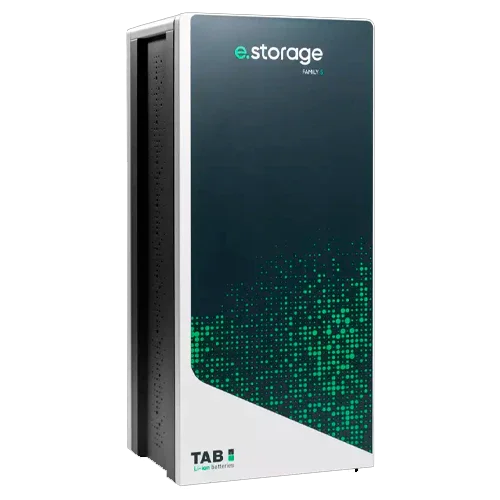

TAB e.storage Family 5.5 Lithium Battery | 51.2V 25.60kWh
Modelo: e.storage Family 5.5- Sku: TABBATE020
- Vendor: TAB
Specifications
Product Description
The TAB e.storage Family 5.5 Lithium Battery is the 25.60 kWh, 51.2 V option within the tall chassis of the Family series. It offers a very large energy reserve for homes with high consumption and small businesses, maintaining the safety of LiFePO4 technology, a BMS with comprehensive protections, and CAN/RS485 communication for direct integration with hybrid inverters. Its high continuous and peak discharge current allows it to support demanding loads and intensive startups without compromising system stability.
Main Features
- Nominal capacity 25.60 kWh (usable ≈ 25.00 kWh) at 51.2 V.
- LiFePO4 chemistry with >6000 cycles at 0.5 C and a design life of over 10 years.
- BMS with voltage, current, and temperature protections; SoC/SoH monitoring.
- 375 A recommended discharge, 500 A maximum, and 700 A peak (15 s).
- Communication interfaces: CAN and RS485 for integration and logging.
- Floor chassis 550 × 470 × 1220 mm; weight 279.5 kg; tidy and scalable installation.
Advantages or Benefits
- Maximum residential autonomy to cover long nights, weekends, or intensive consumption.
- Discharge power for motor startup peaks and loads with high instantaneous demand.
- Safety and reliability thanks to LFP and active BMS control.
- Real savings: greater use of PV surplus and reduction of purchases during peak hours.
- Professional integration with bus monitoring and minimal maintenance.
Purpose or Applications
Recommended for high-consumption residential self-consumption, villas with efficient climate control, small businesses, and shops with critical loads requiring stable backup. Also suitable for off-grid photovoltaic environments where large reserve and discharge power are needed.
Technical Specifications
| Model | Family 5.5 |
| Nominal / usable energy | 25.60 kWh / 25.00 kWh |
| Nominal voltage | 51.2 V |
| Voltage windows | Discharge 44.8 V / Charge 58.4 V |
| Current (rec./max./peak 15 s) | 375 A / 500 A / 700 A |
| Communication | CAN, RS485 |
| Chemistry | LiFePO4 (LFP) |
| Dimensions (L×W×H) | 550 × 470 × 1220 mm |
| Weight | 279.5 kg |
| Operating temperature | Charge 0–45 °C / Discharge −20–45 °C |
| Humidity / Altitude | 5–95 % non-condensing / <3000 m |
| Design life / cycles | 10+ years @25 °C / >6000 cycles (0.5 C) |
| Certifications | CE, IEC 62619, IEC 63056, UN38.3 |
| Integrated inverter | No (modular ESS) |
Compatibilities
Compatible with 48–51.2 V hybrid inverters via CAN/RS485. For parallel banks, follow the permissible currents and maximum number of modules indicated by the inverter and battery manufacturer.
The TAB e.storage Family 5.5 Lithium Battery combines high capacity, LFP safety, and professional communication for powerful, scalable, and reliable solar storage in any situation.
