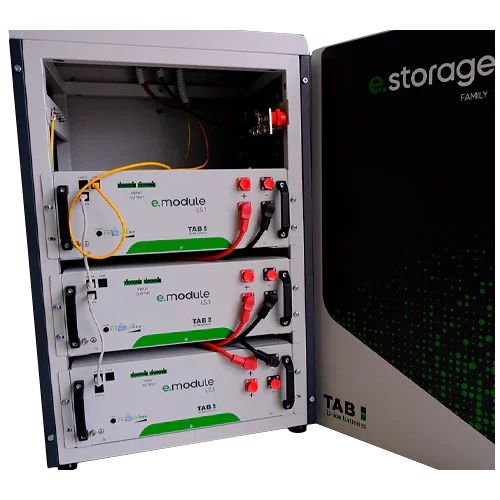

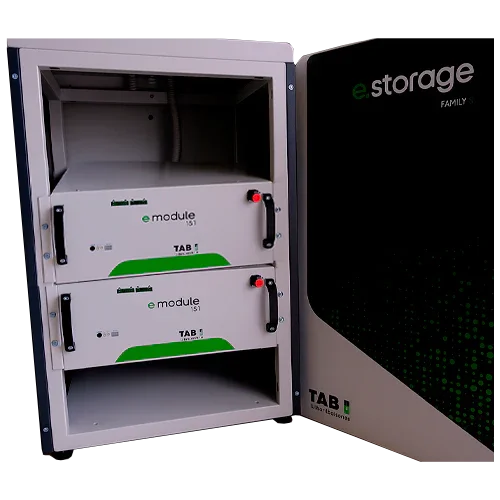

TAB e.storage Family 3.2 Lithium Battery | 51.2V 10.24kWh

Product Description

The TAB e.storage Family 3.2 Lithium Battery doubles the capacity up to 10.24 kWh (usable ≈ 10.0 kWh) while maintaining 51.2 V and the safety of LiFePO4 chemistry. It integrates a BMS with full protections and offers CAN/RS485 communication for quick commissioning with 48–51.2 V hybrid inverters. It retains the compact vertical format (550 × 470 × 850 mm), ideal for homes with higher night-time consumption or for extending autonomy without changing the system architecture.

Main Features

• 10.24 kWh (usable energy ≈ 10.0 kWh) at 51.2 V in a reduced chassis.
• LiFePO4 with lifespan > 6000 cycles at 0.5 C (25 °C) and low degradation.
• Integrated BMS: voltage, current, and temperature protection; SoC/SoH reading.
• Currents: 150 A recommended, 200 A max., 280 A peak 15 s.
• CAN/RS485 interfaces for integration, logging, and monitoring.
• Modular design without integrated inverter; clear and scalable installation.

Advantages or Benefits

• More autonomy to cover full nights and demand peaks.
• Enhanced safety due to LFP chemistry and active BMS.
• Real savings: greater use of photovoltaic surplus.
• Quick integration with 48–51.2 V hybrid inverters.
• Minimal maintenance and silent operation in residential environments.

Purpose or Applications

Residential self-consumption with medium-high consumption, small offices and businesses requiring greater energy reserve and discharge capacity; backup solutions and off-grid systems with photovoltaics.

Technical Specifications

Compatibilities

Compatible with 48–51.2 V hybrid inverters via CAN/RS485. For parallel use or expansions, observe current limits and recommendations from the inverter and battery manufacturer.

The TAB e.storage Family 3.2 Lithium Battery combines greater capacity, LFP safety, and professional communication to maximize self-consumption and provide energy when you need it most.
