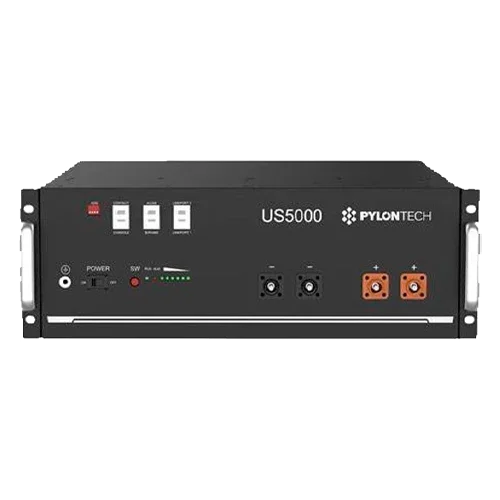

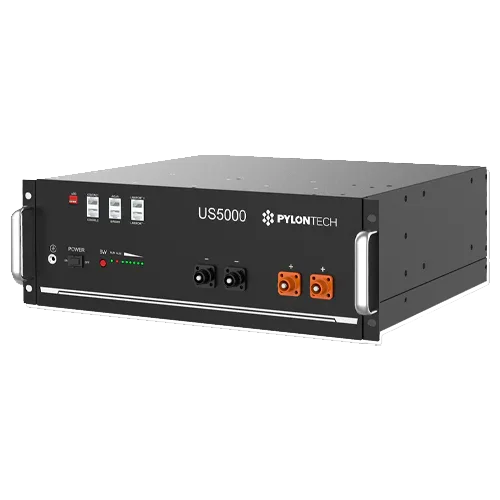

Pylontech Lithium Battery 4.8kWh 48V US5000
Modelo: US5000- Sku: PYLOBAT004
- Vendor: Pylontech
Specifications
Product Description
The Pylontech Lithium Battery 4.8kWh 48V US5000 is the most powerful 48 V storage module in the US family, designed for residential and light commercial installations seeking more usable energy per cycle, high current, and compatibility with leading hybrid inverters. Its LiFePO4 chemistry, 95% depth of discharge, and advanced electronic management ensure safety, efficiency, and a very long service life. The 19” rack format allows for a clean and scalable installation in standard cabinets or racks.
Main Features
- Nominal energy 4.8 kWh; usable ≈ 4.56 kWh (DoD 95%).
- High current: 75 A continuous, 120 A max, and 200 A peak (15 s) for transient demands.
- Operating voltage 48 V with a window of 43.5–53.5 V; recommended charge 52.5–53.5 V.
- Longevity: >6000 cycles and designed for 15+ years under nominal conditions.
- Intelligent management with integrated BMS; RS485 and CAN communications.
- 19” rack format (3.5U), natural cooling, and minimal maintenance.
Advantages or Benefits
- More autonomy and power: greater usable energy per cycle and higher nominal current to cover consumption peaks (heat pump, electric stove, tools, etc.).
- Superior safety: stable LFP chemistry and BMS with voltage, current, and temperature protections.
- Real efficiency: low internal resistance and high charge/discharge efficiency that reduce the cost per usable kWh.
- Simple scalability: up to 16 units in parallel to increase capacity without redoing the installation.
- Clean integration: 19” format with front anchors for tidy cabling in cabinets or on the wall.
Purpose or Applications
Residential on-grid self-consumption with backup, small businesses with critical loads, domestic UPS, and off-grid 48 V solar installations. Especially suitable when high continuous current and high peaks are required while maintaining safety and service life.
Technical Specifications
| Nominal / usable energy | 4.8 kWh / ≈4.56 kWh |
| Nominal voltage (range) | 48 V (43.5–53.5 V) |
| Depth of discharge (DoD) | 95 % |
| Cycles / Design life | >6000 / 15+ years (25 °C) |
| Nominal / max current | 75 A / 120 A |
| Peak current (15 s) | 200 A |
| Charge voltage | 52.5–53.5 V |
| Communication | RS485, CAN |
| Units in parallel | Up to 16 |
| Protection / Cooling | IP20 / Natural |
| Dimensions (W × D × H) | 442 × 420 × 161 mm (19” rack) |
| Weight | ≈38 kg |
| Operating temperature | Charge 0…50 °C / Discharge −10…50 °C |
| Humidity / Altitude | 5–95 % RH w/o cond. / ≤4000 m |
| Certifications | IEC62619, IEC63056, IEC62477-1, UL1973, UL9540A, VDE2510-50, UN38.3 |
Compatibilities
Integration via CAN/RS485 with 48 V hybrid inverters from leading brands (for example, Victron, GoodWe, Solis, Growatt, Deye, Sungrow; check the inverter list for validation). It can be combined in parallel with other modules from the US series following the manufacturer's guidelines.
The Pylontech Lithium Battery 4.8kWh 48V US5000 is the professional choice to maximize autonomy, power, and reliability in 48 V storage systems with modular growth.
