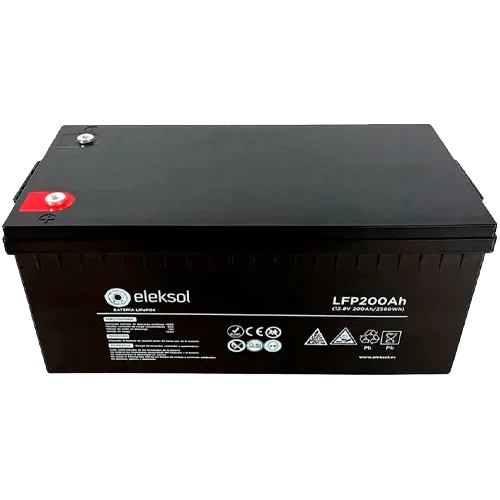

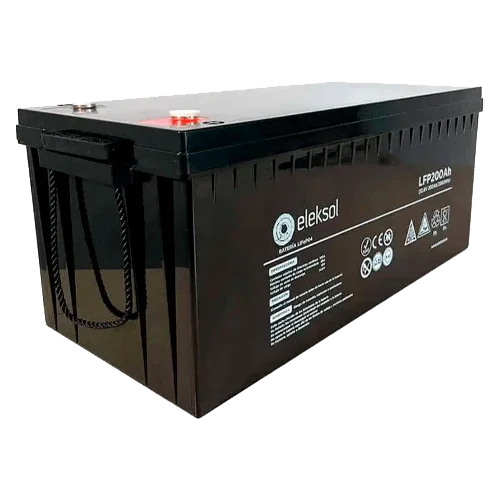

Eleksol Lithium Battery 12.8V 200Ah LFP200AHBT Bluetooth
Modelo: LFP200AHBT- Sku: ELEKBAT009
- Vendor: Eleksol
Specifications
Product Description
The Eleksol Lithium Battery 12.8V 200Ah LFP200AHBT Bluetooth is a 12.8 V “drop-in” LiFePO₄ battery that directly replaces AGM/GEL/VRLA, providing lightness, safety, and real-time control via its Bluetooth app. With integrated BMS, IP65 rating, and high-performance prismatic cells, it offers more than 3,000 cycles at high depths of discharge, a flat voltage curve, and fast recharging with a CC-CV profile, making it an ideal solution for solar energy, marine, caravanning, UPS, and telecommunications.
Main Features
- Safe and stable LiFePO₄ (LFP) chemistry, maintenance-free, with BMS that protects against overcharge, overdischarge, short circuit, and temperature.
- Bluetooth connectivity to monitor voltage, current, SOC, temperature, and system events from your mobile device.
- 200 Ah at 12.8 V (≈ 2,560 Wh) with high charge/discharge efficiency and low self-discharge.
- ABS enclosure with IP65 protection: resistant to dust and water jets (not submersible).
- “Drop-in” format: same footprint as a 12 V lead-acid battery for quick replacements.
- Series connection up to 4 units (≈ 51.2 V) and parallel connection between identical units, following good balancing practices.
Advantages or Benefits
- More usable energy per cycle than lead-acid and greatly reduced weight: improves autonomy and overall system performance.
- Optimized total cost of ownership thanks to its superior lifespan and efficiency (>95% typical).
- Fast recharging with LiFePO₄ CC-CV chargers and intelligent BMS management to extend cell life.
- Clean and safe installation in off-grid homes, technical cabins, boats, or recreational vehicles.
- App-based monitoring that simplifies diagnostics and preventive maintenance of the battery bank.
Purpose or Applications
Recommended for 12 V off-grid solar systems (self-consumption, camper, marine, and telecom), UPS/EPS, control and automation, golf carts and buggies, as well as cyclic applications with frequent charge/discharge cycles. Also suitable for PV + alternator hybrids via DC-DC chargers, where fast recharging and voltage stability are valued.
Technical Specifications
| Nominal energy | ≈ 2,560 Wh (12.8 V × 200 Ah) |
| Nominal voltage | 12.8 V |
| Capacity | 200 Ah |
| Technology | LiFePO₄ (LFP) with BMS and Bluetooth |
| Charge voltage (CV/absorption) | 14.6 V |
| Float (optional) | 13.5–13.6 V gentle |
| Recommended / max. charge | 40 A / 100 A |
| Recommended / max. continuous discharge | 100 A / 200 A |
| Max. pulse (BMS) | ≈ 600 A (ms) |
| Low voltage cut-off (BMS) | ≈ 10.0 V (reconnection > 11.2 V) |
| Protection rating | IP65 |
| Dimensions | 522 × 240 × 218 mm (L × W × H) |
| Weight | ≈ 20.5 kg |
| Terminal | M8 (tightening torque 9–11 N·m) |
| Container material | ABS |
| Operating temperatures | Discharge −20~60 °C · Charge 0~45 °C · Storage −5~35 °C |
Compatibilities
Compatible with 12 V solar charge controllers (PWM/MPPT) with LiFePO₄ profile or adjustable voltages; AC chargers for lithium with CC-CV curve (14.6 V) and alternators via DC-DC chargers. Works with 12 V inverters sized to the bank capacity (≈ 1.2 kW continuous per battery; up to ≈ 2.5 kW DC at maximum continuous). Suitable for parallel installation between identical LFP200AHBT units (symmetrical wiring and fuse per battery) and in series up to 4 units for 24/36/48 V.
Eleksol Lithium Battery 12.8V 200Ah LFP200AHBT Bluetooth is a professional solution for renewable storage that maximizes autonomy, safety, and efficiency with zero maintenance and advanced control from your smartphone.
